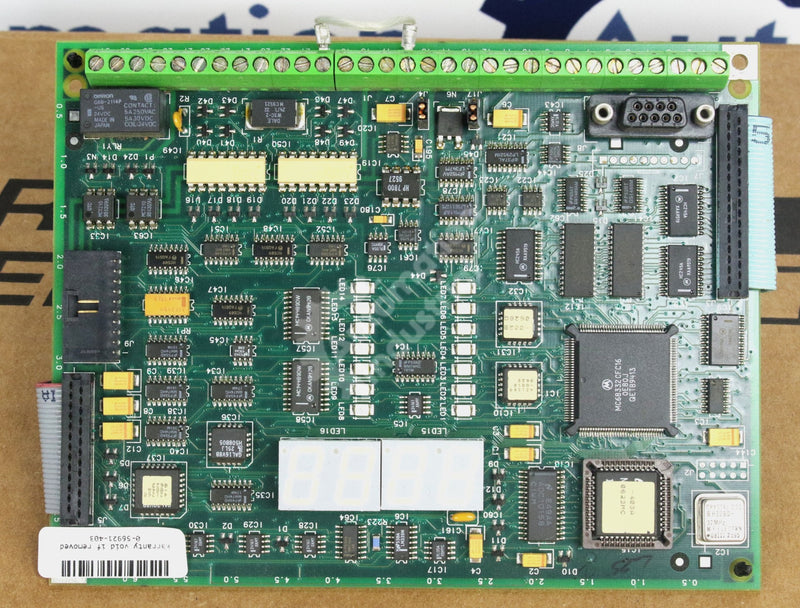

- Part Number: 0-56921-403
- Original Manufacturer: Reliance Electric
- Series ID: GV3000
- Product Type: Regulator Board
- IGBT Frequencies: 2kHz, 4kHz, 8kHz
- Display Type: 4-Character
- Indicator LEDs: 14
- Analog Outputs: 1
- Analog Output Type: 0-10VDC, 4-20mA
- Revision: 403
- Compatible Drives: 1-25HP
- PCB Labeled: Yes
- Manual Number: D2-3333
-
Is the installation process the same for using the 0-56921-403 in a 1-10HP drive versus a 10-25HP one?
- There are slight differences in these drive designs, so make sure to read the manual carefully regarding the particular drive type you are working with.
-
Can I use the 0-56921-403 to upgrade a previous-generation system to Version 4?
- Yes, this can be accomplished by replacing the old regulator with this one.
-
Does the enclosure type matter when determining compatibility with the 0-56921-403?
- No, the 0-56921-403 can be installed in the NEMA 1, 12, or 4X/12 type enclosures without issue.
⭐⭐⭐⭐ 4.0
The 0-56921-403 is a good revision of regulator board for low-horsepower GV3000 drives. It is a slightly older design, but it still maintains a lot of the user-friendly yet functional design that makes these so easy to work with. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
0-56921-403 GV3000 |
Description |
0-56921-403 by Reliance Electric 0-56921-403AA Regulator Board GV3000 |
Condition |
Pre-Owned Cleaned and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Part Number | 0-56921-403 |
| Original Manufacturer | Reliance Electric |
| Series ID | GV3000 |
| Product Type | Regulator Board |
| IGBT Frequencies | 2kHz, 4kHz, 8kHz |
| Display Type | 4-Character |
| Indicator LEDs | 14 |
| Analog Outputs | 1 |
| Analog Output Type | 0-10VDC, 4-20mA |
| Revision | 403 |
| Compatible Drives | 1-25HP |
| PCB Labeled | Yes |
| Manual Number | D2-3333 |
Frequently Asked Questions | |
| Is the installation process the same for using the 0-56921-403 in a 1-10HP drive versus a 10-25HP one? There are slight differences in these drive designs, so make sure to read the manual carefully regarding the particular drive type you are working with. | |
| Can I use the 0-56921-403 to upgrade a previous-generation system to Version 4? Yes, this can be accomplished by replacing the old regulator with this one. | |
| Does the enclosure type matter when determining compatibility with the 0-56921-403? No, the 0-56921-403 can be installed in the NEMA 1, 12, or 4X/12 type enclosures without issue. | |
Internal Review | |
|
⭐⭐⭐⭐
4.0
The 0-56921-403 is a good revision of regulator board for low-horsepower GV3000 drives. It is a slightly older design, but it still maintains a lot of the user-friendly yet functional design that makes these so easy to work with. -Automation Industrial Quality Assurance Manager |
|
