- Unit Name: 05-1000-697
- Brand: Schneider Electric
- Product Series: Infinity
- Subseries: SCX 920
- Description: Main Control Board
- Output Channels: 8
- Status Indicators: Yes
- Expansion Ports: 1
- Service Ports: 1
- Inputs: 16
- Voltage Rating: 120VAC
- Current Rating: 32VA
-
What kind of outputs are supported on the 05-1000-697?
- The 05-1000-697 supports both Form C and tri-state outputs.
-
Does the 05-1000-697 have a reset button?
- Yes, there is a reset button near the bottom of the 05-1000-697.
-
What type of conductors should be used with the 05-1000-697?
- The 05-1000-697 is made for use with copper conductors only.
⭐⭐⭐⭐⭐ 5.0
The 05-1000-697 is the most important piece of a functioning SCX 920 controller as the primary control board. Fortunately, replacing these boards is not as difficult as many similar PCBs thanks to the associated faceplates being screw-mounted and simple to remove. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
05-1000-697 Andover Continuum |
Description |

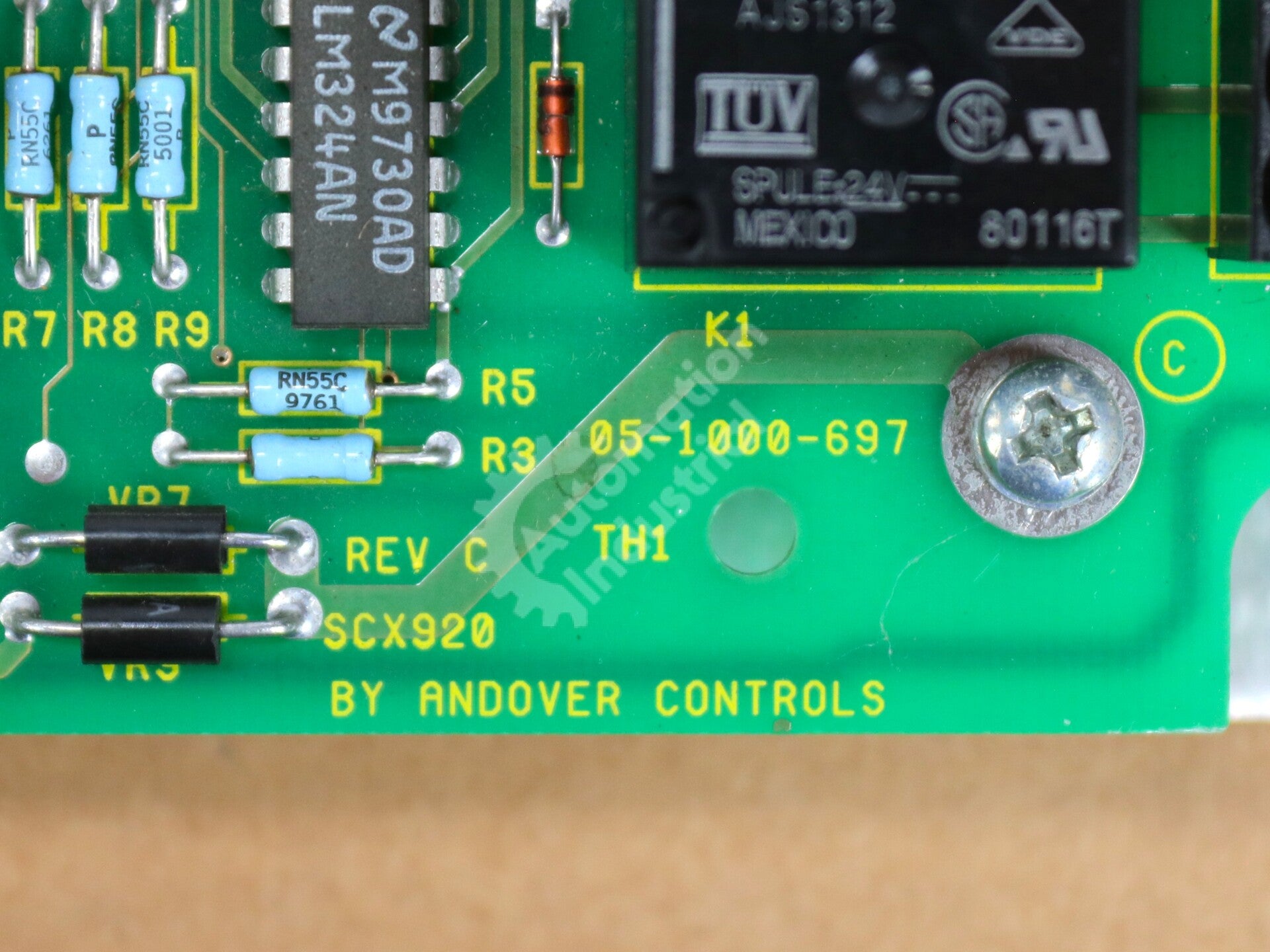

05-1000-697 By Schneider Electric SCX920 Infinity Control Main Control Board |
Condition |
Pre-Owned Cleaned and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Unit Name | 05-1000-697 |
| Brand | Schneider Electric |
| Product Series | Infinity |
| Subseries | SCX 920 |
| Description | Main Control Board |
| Output Channels | 8 |
| Status Indicators | Yes |
| Expansion Ports | 1 |
| Service Ports | 1 |
| Inputs | 16 |
| Voltage Rating | 120VAC |
| Current Rating | 32VA |
Frequently Asked Questions | |
| What kind of outputs are supported on the 05-1000-697? The 05-1000-697 supports both Form C and tri-state outputs. | |
| Does the 05-1000-697 have a reset button? Yes, there is a reset button near the bottom of the 05-1000-697. | |
| What type of conductors should be used with the 05-1000-697? The 05-1000-697 is made for use with copper conductors only. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The 05-1000-697 is the most important piece of a functioning SCX 920 controller as the primary control board. Fortunately, replacing these boards is not as difficult as many similar PCBs thanks to the associated faceplates being screw-mounted and simple to remove. -Automation Industrial Quality Assurance Manager |
|
