- Model No: 1771-ODC
- OEM: Allen-Bradley
- Module Series: 1771
- Product Type: AC Output Module
- Total Outputs: 6
- Output Voltage: 92-138VAC
- Isolated: Yes
- Fuse Blown Indicators: 6
- Fuse Type: 5A, 250V, 3AG, Normal Blow
- Compatible Slots: Any
- Backplane Current: 225mA
- Installation Manual: 1771-2.12
-
What is the maximum cable length the 1771-ODC can support?
- The cabling from the 1771-ODC can reach up to 1,000 feet.
-
How much current is each output rated for on the 1771-ODC?
- Each output can output 2A, up to a maximum of 6A for the entire module.
-
What kind of agency approvals does the 1771-ODC have?
- The 1771-ODC is UL listed, CSA certified, and CE marked.
⭐⭐⭐⭐⭐ 5.0
The 1771-ODC is one of the few AC output modules like this to have a fuse per output to minimize the threat of a surge. These can even be replaced for continuous protection throughout this device's lifetime. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
1771-ODC |
Description |

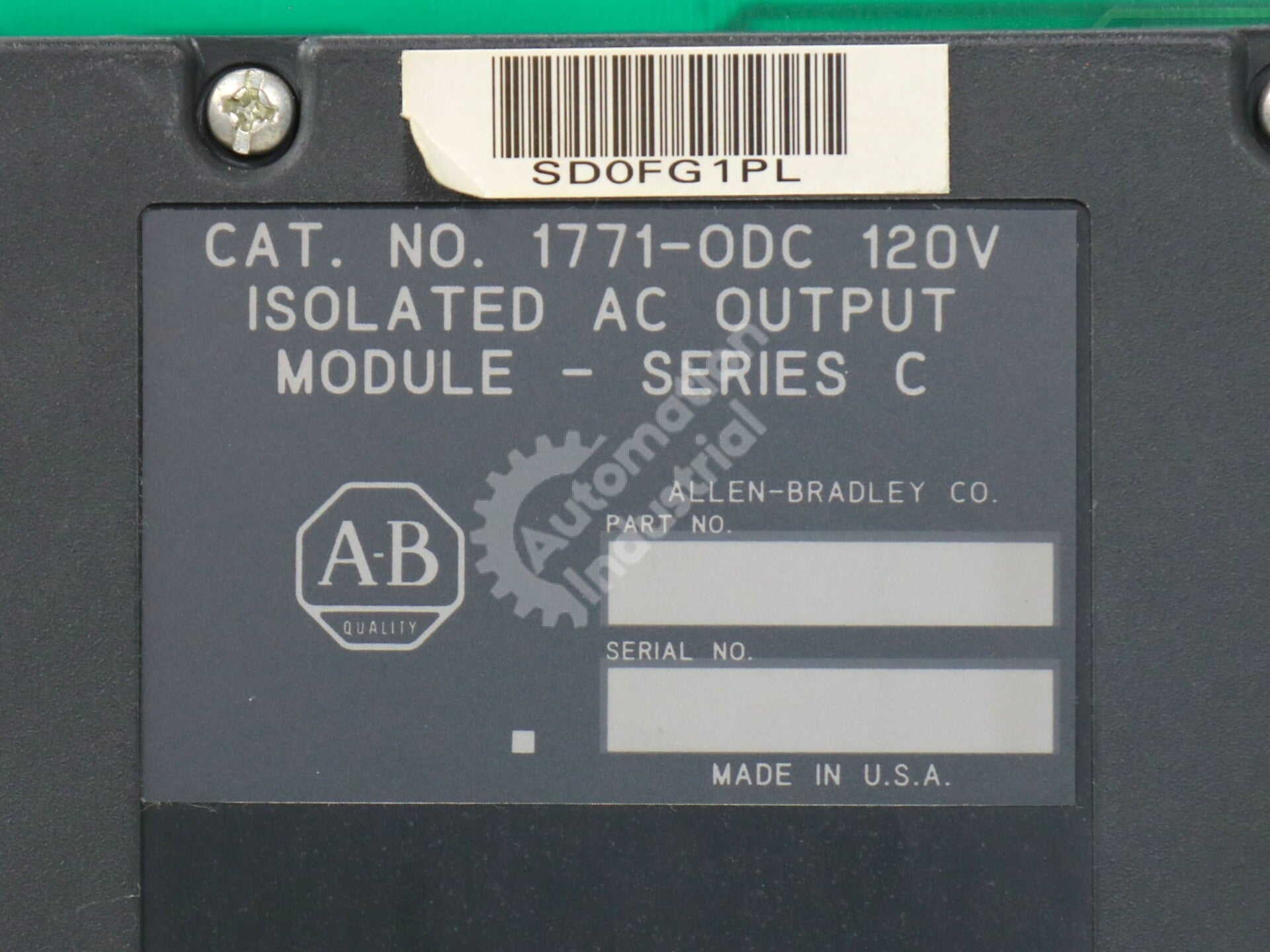

1771-ODC By Allen-Bradley 1771-ODC/C AC Isolated 6-Point Output PLC Module |
Condition |
Pre-Owned Cleaned and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Model No | 1771-ODC |
| OEM | Allen-Bradley |
| Module Series | 1771 |
| Product Type | AC Output Module |
| Total Outputs | 6 |
| Output Voltage | 92-138VAC |
| Isolated | Yes |
| Fuse Blown Indicators | 6 |
| Fuse Type | 5A, 250V, 3AG, Normal Blow |
| Compatible Slots | Any |
| Backplane Current | 225mA |
| Installation Manual | 1771-2.12 |
Frequently Asked Questions | |
| What is the maximum cable length the 1771-ODC can support? The cabling from the 1771-ODC can reach up to 1,000 feet. | |
| How much current is each output rated for on the 1771-ODC? Each output can output 2A, up to a maximum of 6A for the entire module. | |
| What kind of agency approvals does the 1771-ODC have? The 1771-ODC is UL listed, CSA certified, and CE marked. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The 1771-ODC is one of the few AC output modules like this to have a fuse per output to minimize the threat of a surge. These can even be replaced for continuous protection throughout this device's lifetime. -Automation Industrial Quality Assurance Manager |
|
