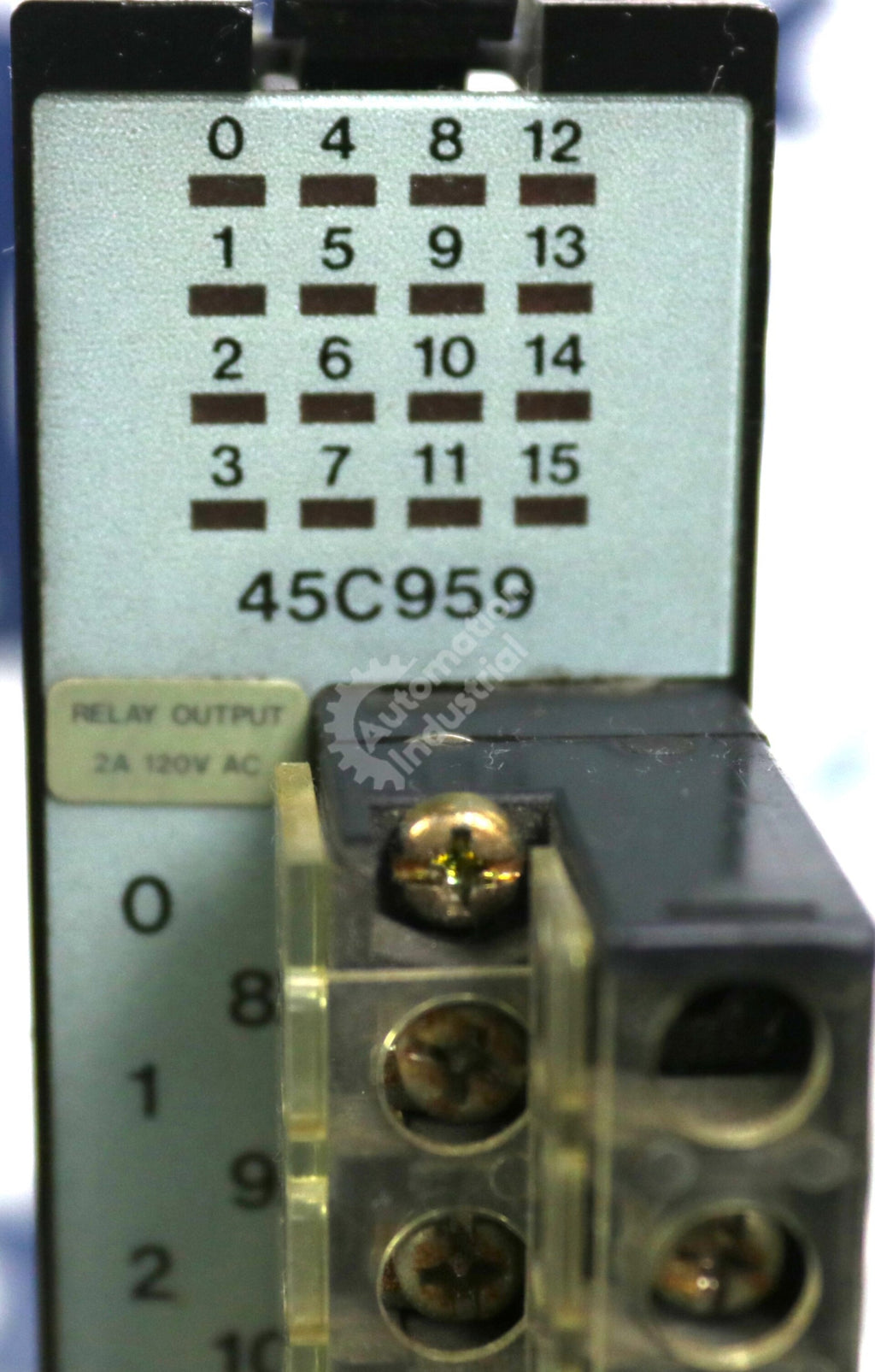

- Part Number: 45C959
- Made By: Reliance Electric
- Family: Shark XL
- Description: Relay Output Module
- Relay Output Channels: 16
- Nominal Voltage Rating: 24VDC, 115/230VAC
- DC Output Voltage: 21-27VDC
- AC Output Voltage: 85-264VAC
- Max Load Current: 2A (1 Circuit), 4A (8 Circuit)
- Fuse Type: 8A, 250V
- Max Inrush Current: 6A, 100ms
- Product Manual: J-3809-2
-
What is the delay time like on the 45C959?
- The 45C959 has an on to off delay of 4 milliseconds, and an off to on delay of 5 milliseconds.
-
Does the 45C959 have any fuses?
- Yes, the 45C959 has one fuse power common.
-
What type of fuses does the 45C959 use?
- The 45C959 uses 8A, 250V, SOC type fuses.
⭐⭐⭐⭐⭐ 5.0
The 45C959 is the same as the 987 16-channel relay output module, only with the terminal block supporting manual removal. This makes performing maintenance much simpler, as you will not need to re-wire the outputs each time you need to access this module. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
45C959 Shark XL |
Description |
45C959 By Reliance Electric Shark XL 120VAC 16-Point Output Module |
Condition |
Pre-Owned Clean and Tested With 1 Year Warranty. |
Technical Specifications | |
| Part Number | 45C959 |
| Made By | Reliance Electric |
| Family | Shark XL |
| Description | Relay Output Module |
| Relay Output Channels | 16 |
| Nominal Voltage Rating | 24VDC, 115/230VAC |
| DC Output Voltage | 21-27VDC |
| AC Output Voltage | 85-264VAC |
| Max Load Current | 2A (1 Circuit), 4A (8 Circuit) |
| Fuse Type | 8A, 250V |
| Max Inrush Current | 6A, 100ms |
| Product Manual | J-3809-2 |
Frequently Asked Questions | |
| What is the delay time like on the 45C959? The 45C959 has an on to off delay of 4 milliseconds, and an off to on delay of 5 milliseconds. | |
| Does the 45C959 have any fuses? Yes, the 45C959 has one fuse power common. | |
| What type of fuses does the 45C959 use? The 45C959 uses 8A, 250V, SOC type fuses. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The 45C959 is the same as the 987 16-channel relay output module, only with the terminal block supporting manual removal. This makes performing maintenance much simpler, as you will not need to re-wire the outputs each time you need to access this module. -Automation Industrial Quality Assurance Manager |
|
