- Board ID: 57410
- Alternate Name: 57C410
- Produced By: Reliance Electric
- Unit Series: AutoMax PLC
- Designation: Analog Output Module
- Isolated: Yes
- D/A Converter Channels: 4
- Resolution: 12-bit
- Voltage Support: ±5V, ±8V, ±10
- Current Support: 4-20mA
- Isolation: 2500V
- Manual: J-3631
-
Does the 57410 have any short circuit protection?
- Yes, the outputs on this module are current-limited to help protect it in case of short circuit.
-
How many isolated commons are there on the 57410?
- There is one common per channel, so there are a total of 4 on this module.
-
What is the maximum current supported for the voltage output signals on the 57410?
- The voltage signals can support up to 10mA at maximum.
⭐⭐⭐⭐⭐ 5.0
The 57410 is a valuable source of analog outputs for drive controllers in a system. This one module supports both voltage and current output signals, providing added functionality while still only taking up a single card slot in your rack. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
57410 AutoMax PLC |
Description |

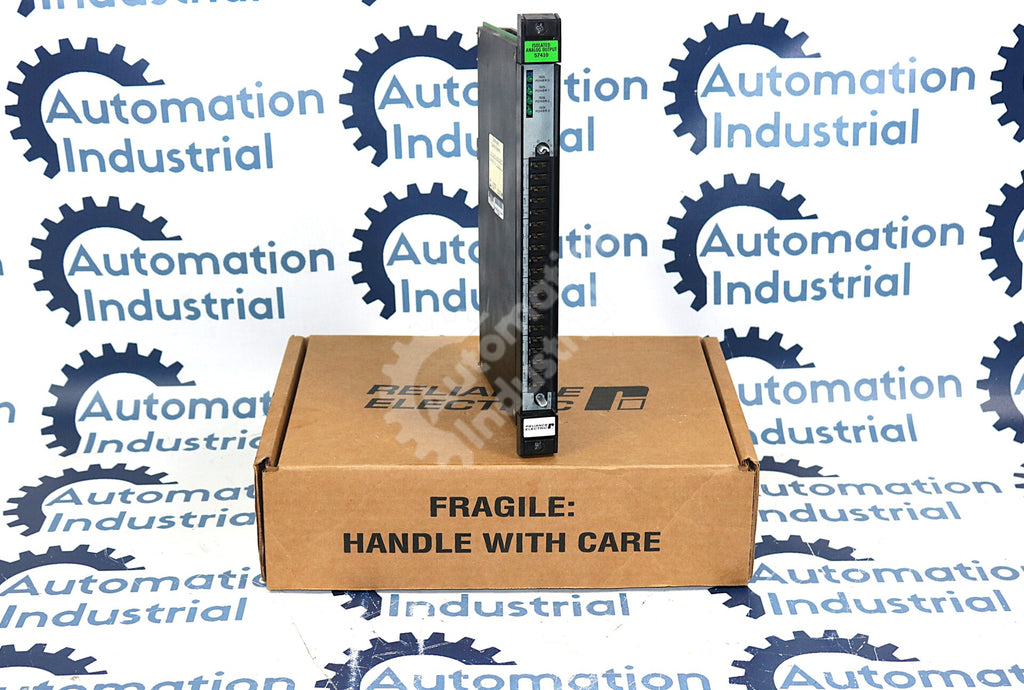

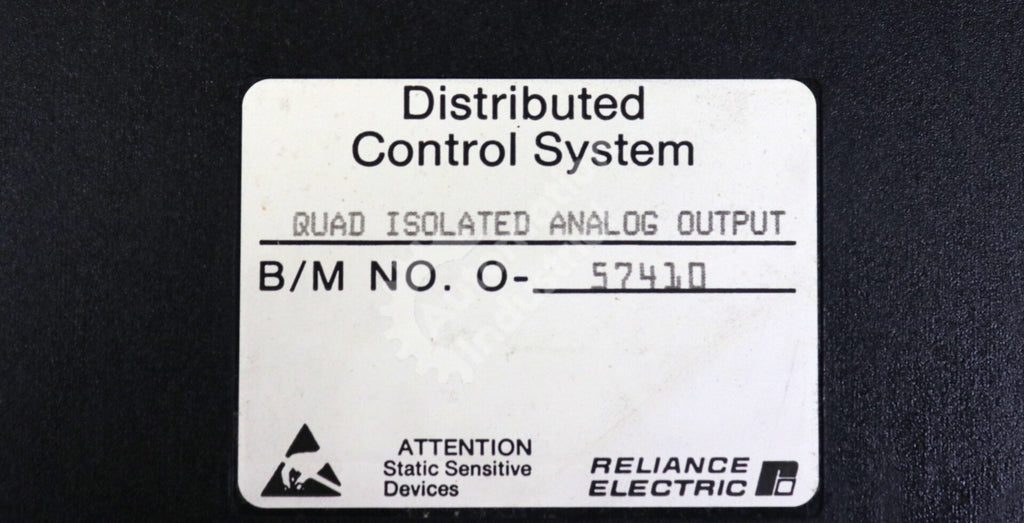

57410 By Reliance Electric Automax Quad Isolated Analog Output Module |
Condition |
Pre-Owned Clean and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Board ID | 57410 |
| Alternate Name | 57C410 |
| Produced By | Reliance Electric |
| Unit Series | AutoMax PLC |
| Designation | Analog Output Module |
| Isolated | Yes |
| D/A Converter Channels | 4 |
| Resolution | 12-bit |
| Voltage Support | ±5V, ±8V, ±10 |
| Current Support | 4-20mA |
| Isolation | 2500V |
| Manual | J-3631 |
Frequently Asked Questions | |
| Does the 57410 have any short circuit protection? Yes, the outputs on this module are current-limited to help protect it in case of short circuit. | |
| How many isolated commons are there on the 57410? There is one common per channel, so there are a total of 4 on this module. | |
| What is the maximum current supported for the voltage output signals on the 57410? The voltage signals can support up to 10mA at maximum. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The 57410 is a valuable source of analog outputs for drive controllers in a system. This one module supports both voltage and current output signals, providing added functionality while still only taking up a single card slot in your rack. -Automation Industrial Quality Assurance Manager |
|
