- Unit ID: 65242-100NSX
- OEM: Square D
- Related Series: FlexPak/WebPak 3000
- Product Type: Molded Case Switch
- Part Role: AC Line Disconnect
- 230VAC Horsepower Range: 1.5-25HP
- 460VAC Horsepower Range: 3-50HP
- Current Rating: 100A
- Voltage Rating: 600V
-
What Reliance Electric disconnect is the 65242-100NSX compatible with?
- The 65242-100NSX is used with the 901FK0101.
-
Is the 65242-100NSX NEC-compliant?
- Yes, so long as you do not operate it over 85% of its current rating.
⭐⭐⭐⭐⭐ 5.0
The 65242-100NSX is the version of Square D disconnect which is compatible with the widest range of Reliance Electric drives by far. All but the highest-powered models in the series can be serviced by this compact and convenient switch. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
65242-100NSX |
Description |

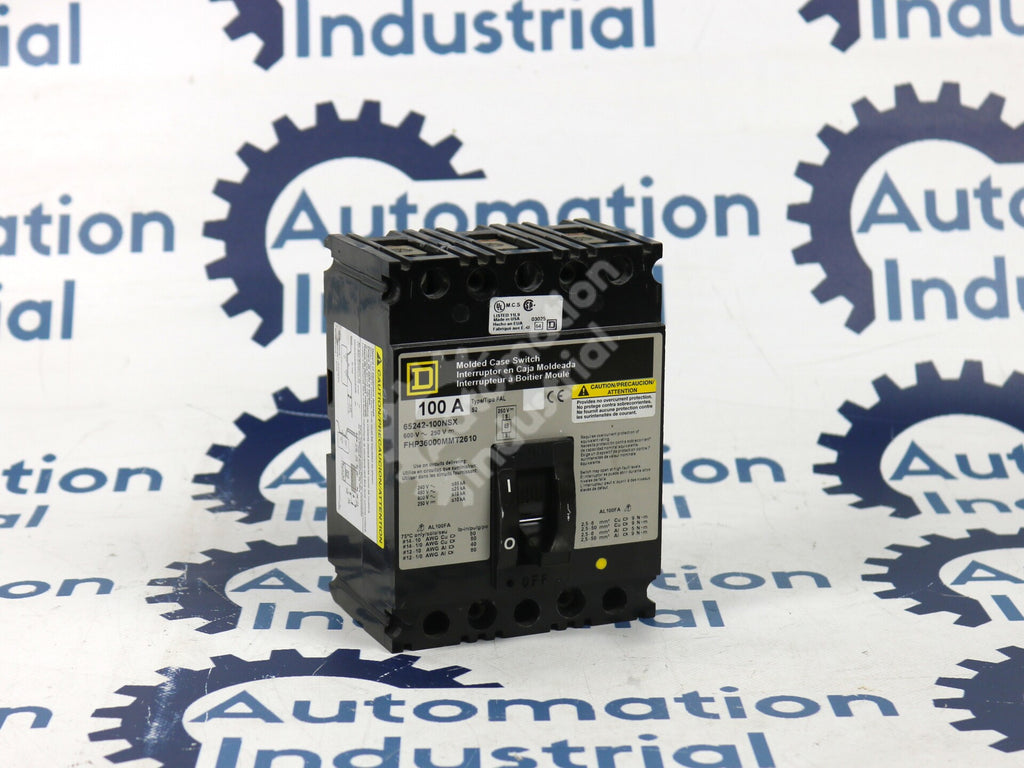

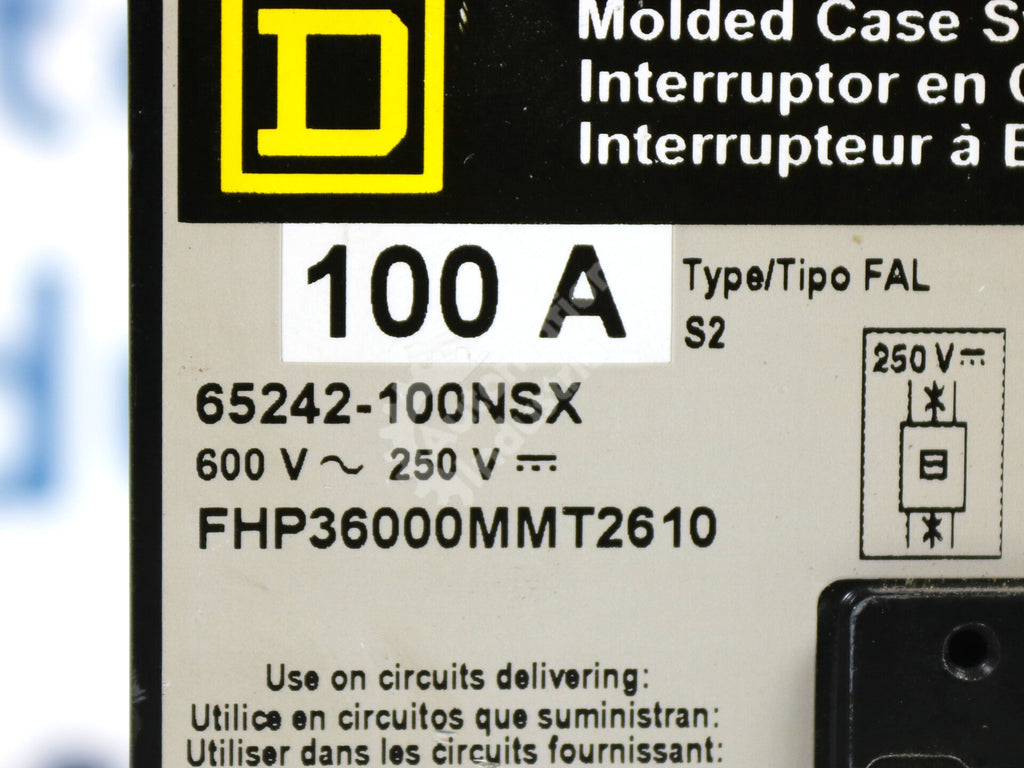

65242-100NSX By Square D FHP36000MMT2610 3-Pole 100A Molded Case Circuit Breaker |
Condition |
Pre-Owned Cleaned and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Unit ID | 65242-100NSX |
| OEM | Square D |
| Related Series | FlexPak/WebPak 3000 |
| Product Type | Molded Case Switch |
| Part Role | AC Line Disconnect |
| 230VAC Horsepower Range | 1.5-25HP |
| 460VAC Horsepower Range | 3-50HP |
| Current Rating | 100A |
| Voltage Rating | 600V |
Frequently Asked Questions | |
| What Reliance Electric disconnect is the 65242-100NSX compatible with? The 65242-100NSX is used with the 901FK0101. | |
| Is the 65242-100NSX NEC-compliant? Yes, so long as you do not operate it over 85% of its current rating. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The 65242-100NSX is the version of Square D disconnect which is compatible with the widest range of Reliance Electric drives by far. All but the highest-powered models in the series can be serviced by this compact and convenient switch. -Automation Industrial Quality Assurance Manager |
|
