- Part Name: 6MDDN-010102
- Original Producer: Reliance Electric
- Model Series: MD65
- Functional Role: AC Drive
- Nominal Voltage: 460V
- Phases: 3
- Output Power: 5HP
- Output Current: 10.5A
- Frame Size: B
- Vertical Clearance Required: 120mm
- Weight: 2.2kg
- Manual Number: D2-3519
-
Can the enclosure on the 6MDDN-010102 be enhanced?
- Yes, you can install the optional conduit box and top cover to this enclosure to enhance the protection to IP30/NEMA 1 levels.
-
How can I tell if a drive like the 6MDDN-010102 is an MD60 or MD65 model?
- The "2" at the end of 6MDDN-010102 indicates that this is an MD65 drive; this would be a "1" in an MD60 drive.
-
How much horizontal clearance is needed between the 6MDDN-010102 and other drives?
- No horizontal clearance is required if you are not using the optional enclosure upgrade kit and ambient temperatures are below 40°C.
⭐⭐⭐⭐⭐ 5.0
The 6MDDN-010102 is extraordinarily compact for a drive with this output capacity. Notably, this model offers the most power among the other B-frame drives of this voltage. This is especially important if you are planning for DIN-rail installation, as this is not supported in the larger size groups. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
6MDDN-010102 MD65 |
Description |

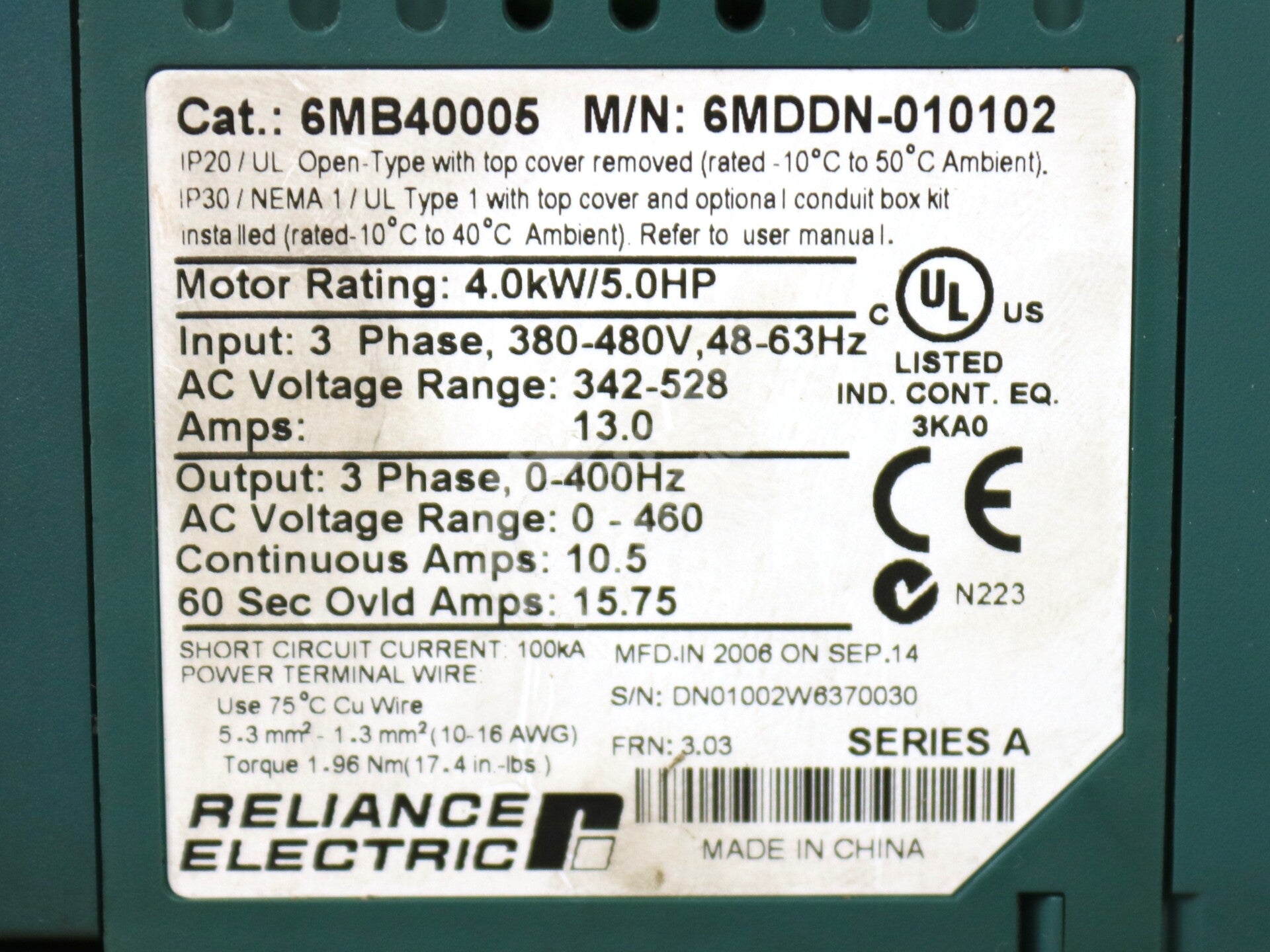

6MDDN-010102 By Reliance Electric MD65 5HP 480V 50/60Hz AC Drive |
Condition |
Pre-Owned Cleaned and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Part Name | 6MDDN-010102 |
| Original Producer | Reliance Electric |
| Model Series | MD65 |
| Functional Role | AC Drive |
| Nominal Voltage | 460V |
| Phases | 3 |
| Output Power | 5HP |
| Output Current | 10.5A |
| Frame Size | B |
| Vertical Clearance Required | 120mm |
| Weight | 2.2kg |
| Manual Number | D2-3519 |
Frequently Asked Questions | |
| Can the enclosure on the 6MDDN-010102 be enhanced? Yes, you can install the optional conduit box and top cover to this enclosure to enhance the protection to IP30/NEMA 1 levels. | |
| How can I tell if a drive like the 6MDDN-010102 is an MD60 or MD65 model? The "2" at the end of 6MDDN-010102 indicates that this is an MD65 drive; this would be a "1" in an MD60 drive. | |
| How much horizontal clearance is needed between the 6MDDN-010102 and other drives? No horizontal clearance is required if you are not using the optional enclosure upgrade kit and ambient temperatures are below 40°C. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The 6MDDN-010102 is extraordinarily compact for a drive with this output capacity. Notably, this model offers the most power among the other B-frame drives of this voltage. This is especially important if you are planning for DIN-rail installation, as this is not supported in the larger size groups. -Automation Industrial Quality Assurance Manager |
|
