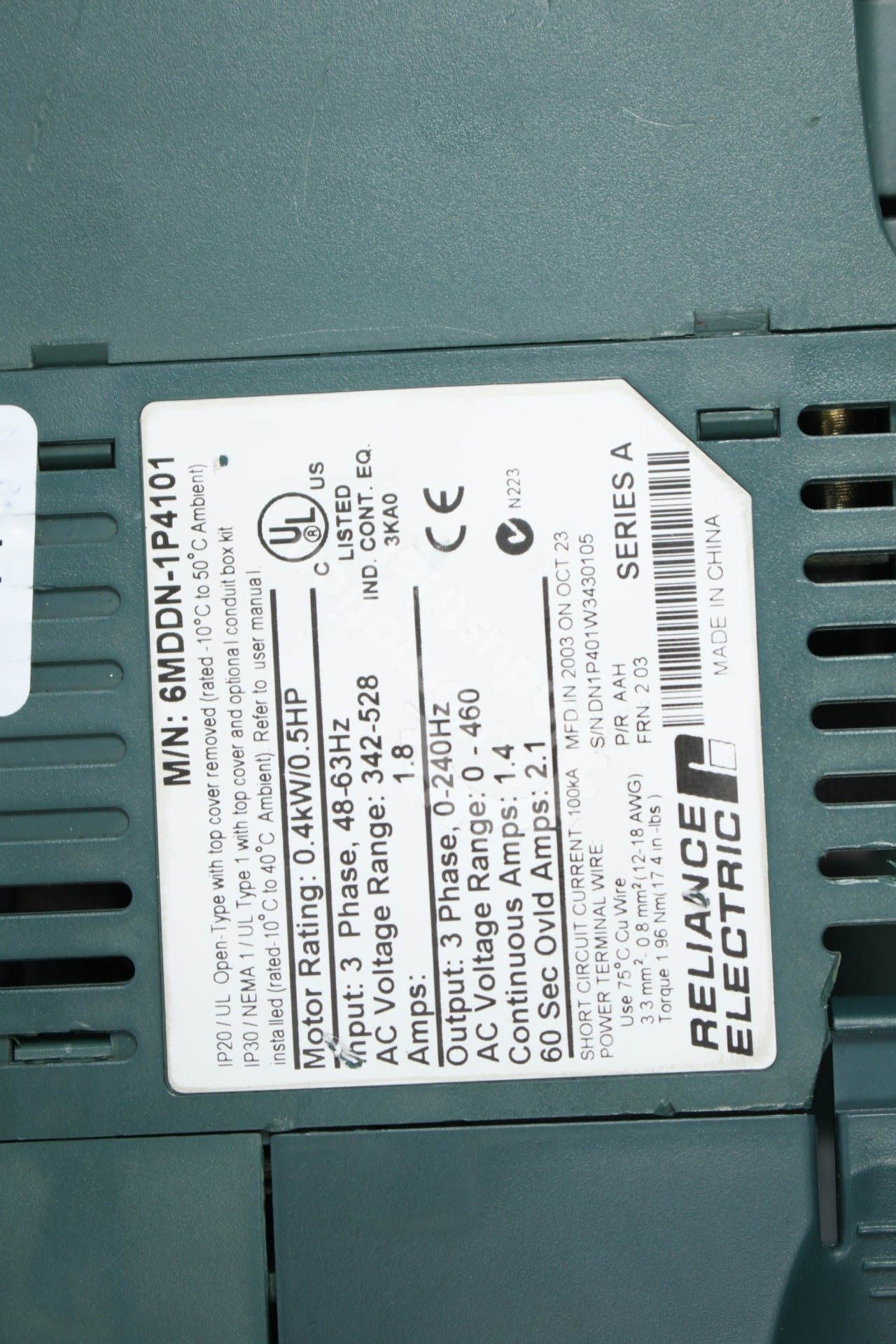

- Model Number: 6MDDN-1P4101
- OEM: Reliance Electric
- Series: MD60
- Designation: AC Drive
- Horsepower Rating: 0.5HP
- Output Current: 1.4A
- Input Voltage: 460VAC
- Power Type: 3-Phase
- Frame Size: A
- Dimensions: 80mm x 185mm x 136mm
- Overload Rating: 150% (1 min), 200% (3 sec)
- Max Altitude: 1000m
-
What country was this 6MDDN-1P4101 manufactured in?
- This model was manufactured in China.
-
How does installing the 6MDDN-1P4101 work?
- The 6MDDN-1P4101 can either be installed via the mounting screws or via a DIN rail.
-
How much shock can the 6MDDN-1P4101 handle?
- The 6MDDN-1P4101 is rated for a 15G peak for up to 11 milliseconds.
⭐⭐⭐⭐ 4.0
The 6MDDN-1P4101 is the lowest powered 460V option of MD60 drive. This makes it perfect for simpler applications, though it does limit the overall functionality of the drive somewhat. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
6MDDN-1P4101 MD60 |
Description |
6MDDN-1P4101 By Reliance Electric .5HP 3 Phase MD60 ACDrive |
Condition |
Pre-Owned Clean and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Model Number | 6MDDN-1P4101 |
| OEM | Reliance Electric |
| Series | MD60 |
| Designation | AC Drive |
| Horsepower Rating | 0.5HP |
| Output Current | 1.4A |
| Input Voltage | 460VAC |
| Power Type | 3-Phase |
| Frame Size | A |
| Dimensions | 80mm x 185mm x 136mm |
| Overload Rating | 150% (1 min), 200% (3 sec) |
| Max Altitude | 1000m |
Frequently Asked Questions | |
| What country was this 6MDDN-1P4101 manufactured in? This model was manufactured in China. | |
| How does installing the 6MDDN-1P4101 work? The 6MDDN-1P4101 can either be installed via the mounting screws or via a DIN rail. | |
| How much shock can the 6MDDN-1P4101 handle? The 6MDDN-1P4101 is rated for a 15G peak for up to 11 milliseconds. | |
Internal Review | |
|
⭐⭐⭐⭐
4.0
The 6MDDN-1P4101 is the lowest powered 460V option of MD60 drive. This makes it perfect for simpler applications, though it does limit the overall functionality of the drive somewhat. -Automation Industrial Quality Assurance Manager |
|
