- Model ID: 750-P5-G5-S5-HI-A20-R-T
- Original Manufacturer: GE
- Family: Multilin 750/760
- Description: Feeder Management Relay
- Current Input Rating: 5A (All)
- Analog Outputs: 8 (4-20mA)
- Enhancements: Display, Ethernet
- Ethernet Port: 10BaseT, RJ-45
- Power Supply: High (88-300VDC, 70-265VAC)
- Breaker Closed LED Color: Red
- Field-Upgradeable: Yes
- Made In: Canada
-
What type of time synchronization does the 750-P5-G5-S5-HI-A20-R-T use?
- The 750-P5-G5-S5-HI-A20-R-T uses IRIG-B type synchronization.
-
What AC frequencies can the 750-P5-G5-S5-HI-A20-R-T operate on?
- The 750-P5-G5-S5-HI-A20-R-T is able to work with voltage between 48 and 62Hz.
-
How can I tell if a model like the 750-P5-G5-S5-HI-A20-R-T is conformally coated?
- The 750-P5-G5-S5-HI-A20-R-T would have an additional "-H" at the end of the part number if it was conformally coated.
⭐⭐⭐⭐⭐ 5.0
The 750-P5-G5-S5-HI-A20-R-T combines standard protection/control relay functionalities with built-in metering. This helps to consolidate your system by reducing the need for certain auxiliary devices, making wiring and setup a much quicker process. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
750-P5-G5-S5-HI-A20-R-T 750/760 Feeder Management Relay |
Description |
750-P5-G5-S5-HI-A20-R-T By GE Multilin 750 Feeder Management Relay NSFP |
Condition |

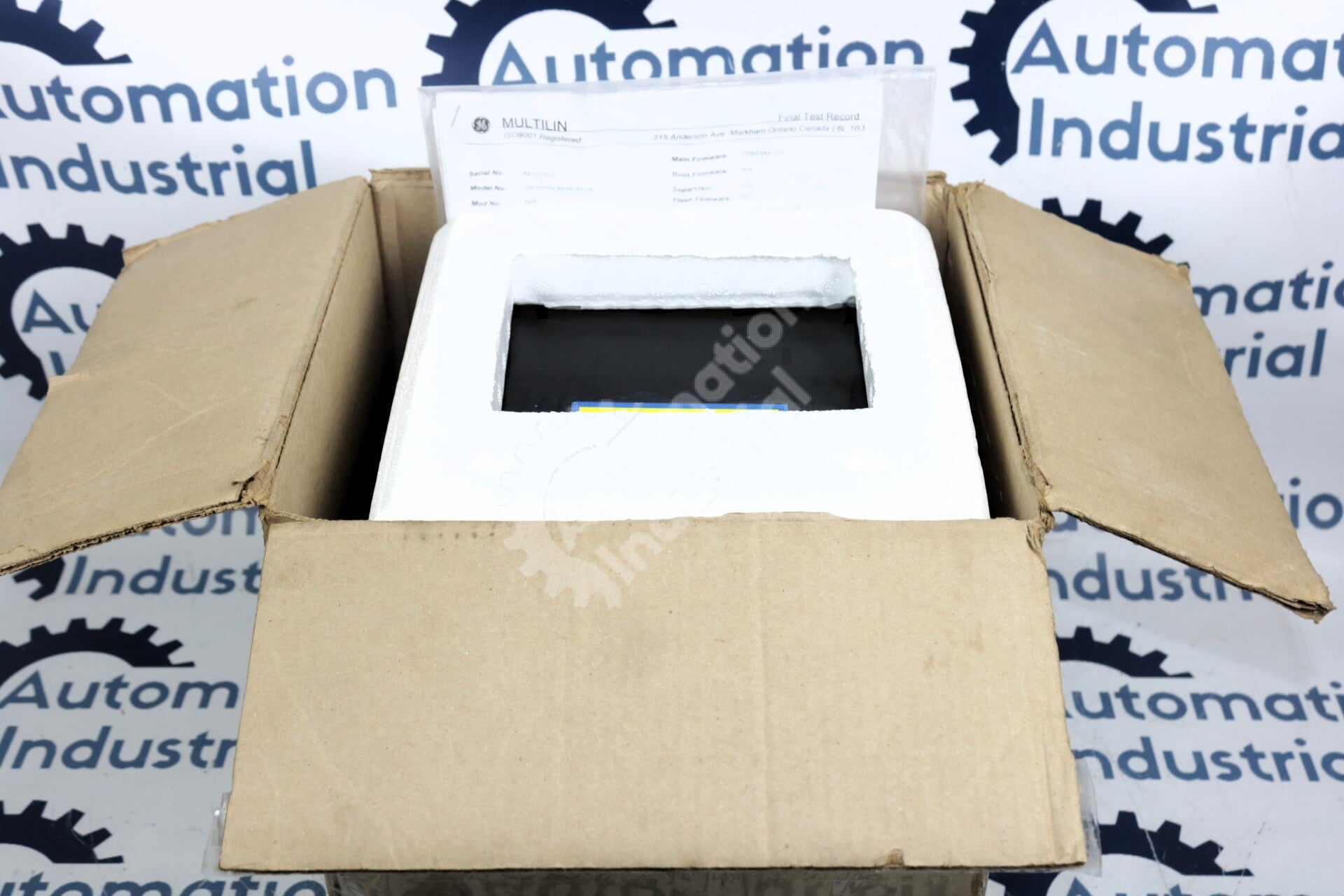

New Surplus Factory Package With 1 Year Warranty. |
Technical Specifications | |
| Model ID | 750-P5-G5-S5-HI-A20-R-T |
| Original Manufacturer | GE |
| Family | Multilin 750/760 |
| Description | Feeder Management Relay |
| Current Input Rating | 5A (All) |
| Analog Outputs | 8 (4-20mA) |
| Enhancements | Display, Ethernet |
| Ethernet Port | 10BaseT, RJ-45 |
| Power Supply | High (88-300VDC, 70-265VAC) |
| Breaker Closed LED Color | Red |
| Field-Upgradeable | Yes |
| Made In | Canada |
Frequently Asked Questions | |
| What type of time synchronization does the 750-P5-G5-S5-HI-A20-R-T use? The 750-P5-G5-S5-HI-A20-R-T uses IRIG-B type synchronization. | |
| What AC frequencies can the 750-P5-G5-S5-HI-A20-R-T operate on? The 750-P5-G5-S5-HI-A20-R-T is able to work with voltage between 48 and 62Hz. | |
| How can I tell if a model like the 750-P5-G5-S5-HI-A20-R-T is conformally coated? The 750-P5-G5-S5-HI-A20-R-T would have an additional "-H" at the end of the part number if it was conformally coated. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The 750-P5-G5-S5-HI-A20-R-T combines standard protection/control relay functionalities with built-in metering. This helps to consolidate your system by reducing the need for certain auxiliary devices, making wiring and setup a much quicker process. -Automation Industrial Quality Assurance Manager |
|
