- Product Code: 8902/M1
- OEM: Parker
- Drive Series: AC890
- Part Type: Sin/Cos Registration Option
- Maximum Pulse Rate: 250kHz
- 1V Inputs: 1
- Terminal Type: 15-Way, D-Type
- Receiver Impedance: 120Ω
- Auxiliary Digital Inputs: None
- Auxiliary Digital Outputs: None
- Condition: New (No Box)
- Manual: HA469269U001
-
What drives are compatible with the 8902/M1?
- The 8902/M1 can be used with any 890SD or 890CD drives.
-
What type of sin/cos encoders are compatible with the 8902/M1?
- The 8902/M1 is made for use with 1V p-p type encoders.
-
Can the 8902/M1 decode Heidenhain Endat 2.1 absolute position encoders?
- Yes, this is supported on this card.
⭐⭐⭐⭐⭐ 5.0
The 8902/M1 is a small but valuable device if you are planning to add a sin/cos encoder to your motor controller. This is the standard 8902 model which only comes with the basic features needed for this encoder connection. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
8902/M1 AC890 |
Description |
8902/M1 By Parker Computers AH469498U001 Sin/Cos Encoder Feedback Card NSNB |
Condition |
New Surplus Open Box With 1 Year Warranty. |
Technical Specifications | |
| Product Code | 8902/M1 |
| OEM | Parker |
| Drive Series | AC890 |
| Part Type | Sin/Cos Registration Option |
| Maximum Pulse Rate | 250kHz |
| 1V Inputs | 1 |

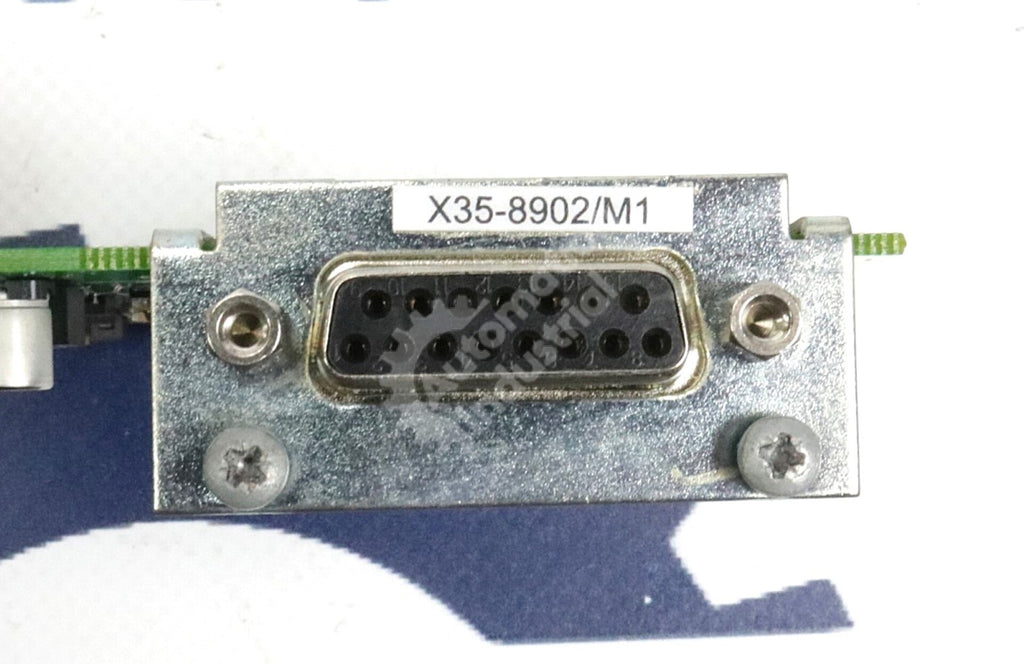

| Terminal Type | 15-Way, D-Type |
| Receiver Impedance | 120Ω |
| Auxiliary Digital Inputs | None |
| Auxiliary Digital Outputs | None |
| Condition | New (No Box) |
| Manual | HA469269U001 |
Frequently Asked Questions | |
| What drives are compatible with the 8902/M1? The 8902/M1 can be used with any 890SD or 890CD drives. | |
| What type of sin/cos encoders are compatible with the 8902/M1? The 8902/M1 is made for use with 1V p-p type encoders. | |
| Can the 8902/M1 decode Heidenhain Endat 2.1 absolute position encoders? Yes, this is supported on this card. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The 8902/M1 is a small but valuable device if you are planning to add a sin/cos encoder to your motor controller. This is the standard 8902 model which only comes with the basic features needed for this encoder connection. -Automation Industrial Quality Assurance Manager |
|
