- Catalog No: 9905-864
- Brand Name: Woodward
- Product Line: Peak 150
- Part Type: Digital Control
- Application: Steam Turbines
- Voltage Type: AC/DC
- Input Voltage (AC): 88-132VAC
- Input Voltage (DC): 90-150VDC
- Enclosure Rating: NEMA 4X
- Discrete Inputs: 8
- CSA Listed: Yes
- Manual: 85565
-
What are the two analog outputs on the 9905-864 used for?
- One is for the speed readout, and the other is user-configurable.
-
How many speed sensor inputs does the 9905-864 have?
- The 9905-864 has two of these inputs.
-
What is the maximum control speed for the 9905-864?
- The 9905-864 has a maximum control speed of 15,000 rpm.
⭐⭐⭐⭐⭐ 5.0
The 9905-864 is both better protected and compatible with more voltages than most other models in the series. The only notable feature this model is missing is the optional Modbus support. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |

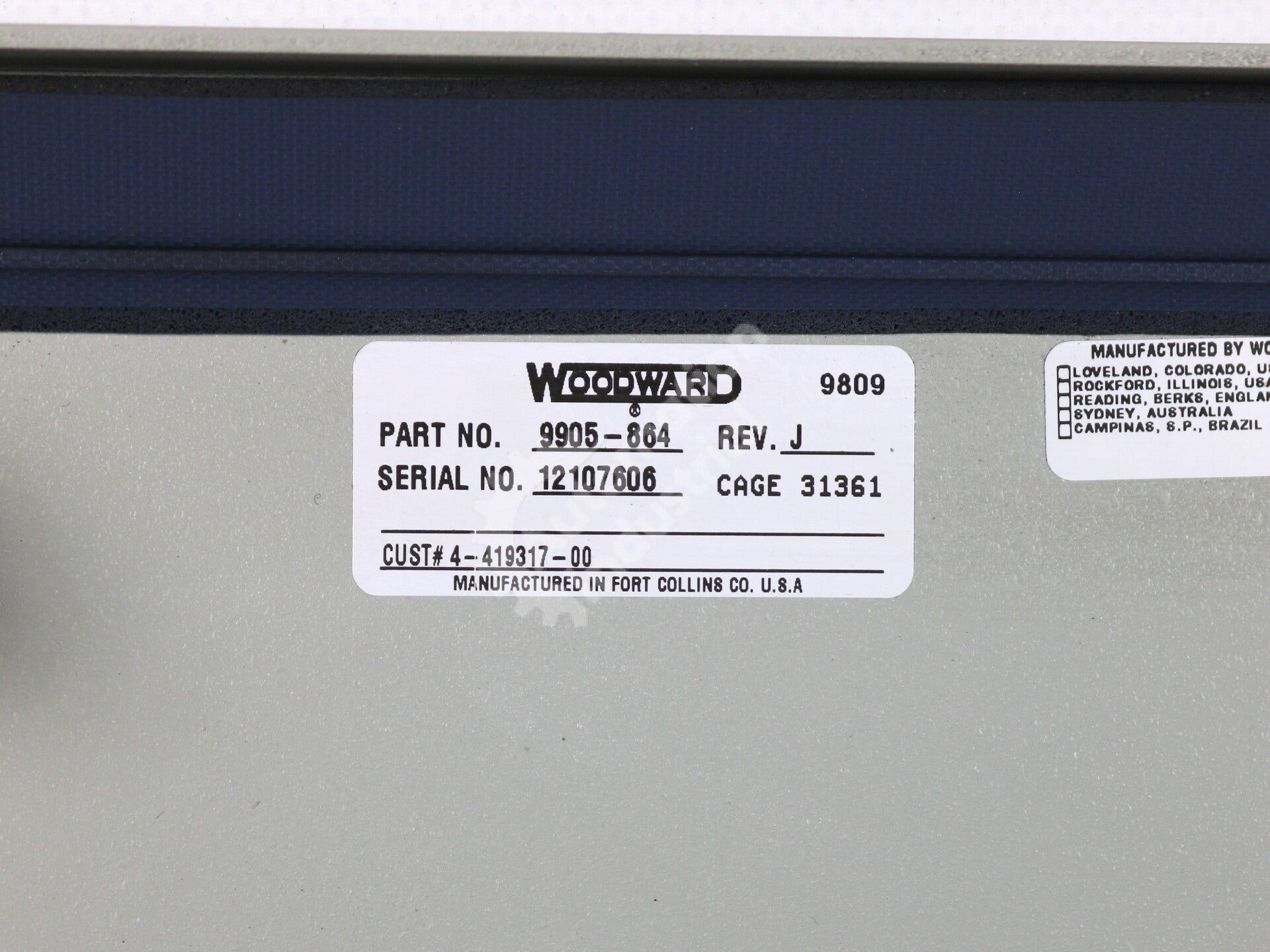

9905-864 Peak 150 |
Description |
9905-864 By Woodward Discrete and Analog I/O Digital Steam Turbine Controller |
Condition |
Pre-Owned Cleaned and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Catalog No | 9905-864 |
| Brand Name | Woodward |
| Product Line | Peak 150 |
| Part Type | Digital Control |
| Application | Steam Turbines |
| Voltage Type | AC/DC |
| Input Voltage (AC) | 88-132VAC |
| Input Voltage (DC) | 90-150VDC |
| Enclosure Rating | NEMA 4X |
| Discrete Inputs | 8 |
| CSA Listed | Yes |
| Manual | 85565 |
Frequently Asked Questions | |
| What are the two analog outputs on the 9905-864 used for? One is for the speed readout, and the other is user-configurable. | |
| How many speed sensor inputs does the 9905-864 have? The 9905-864 has two of these inputs. | |
| What is the maximum control speed for the 9905-864? The 9905-864 has a maximum control speed of 15,000 rpm. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The 9905-864 is both better protected and compatible with more voltages than most other models in the series. The only notable feature this model is missing is the optional Modbus support. -Automation Industrial Quality Assurance Manager |
|
