- Model Number: 9907-004
- OEM: Woodward
- Series ID: MSLC

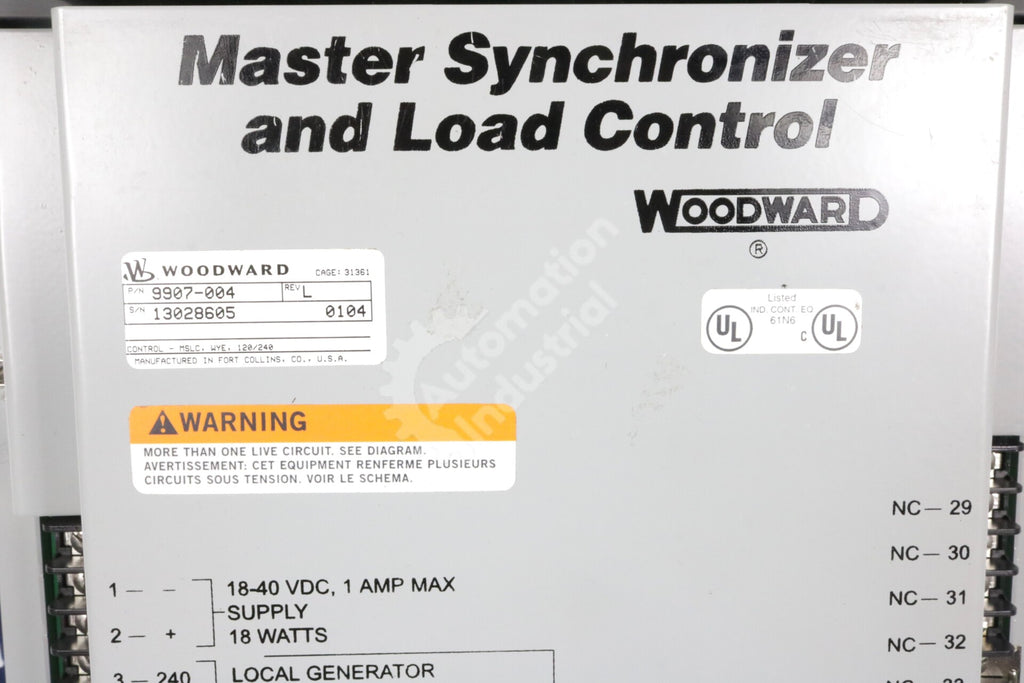

- Product Description: Master Synchronizer and Load Control
- Configuration: 4-Wire Wye
- Voltage Rating: 120/240VAC
- Control Power Supply Input: 12-40VDC
- 120V Synchronizer Voltage Range: 75-150VACrms
- 240V Synchronizer Voltage Range: 150-300VACrms
- Maximum Operating Temperature: 70°C
- Maximum Humidity: 95% (@38°C)
- Manual: 02022
-
What standard is the diagnostic/calibration port on the 9907-004?
- This is an RS-422 type port.
-
What kind of local area network is supported with the 9907-004?
- The 9907-004 uses Echelon LONWORKS network technology.
-
What other MSLC types are available besides the 9907-004?
- These MSLC units also come in 3-wire delta 120V and 3-wire delta 240V configurations.
⭐⭐⭐⭐⭐ 5.0
The 9907-004 is the only wye version of MSLC available, making it highly sought-after for these applications. This model is rated for both 120V and 240V, making it more versatile than the delta versions that are only made for one particular voltage rating. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
9907-004 MSLC Master Synchronizer and Load Control |
Description |
9907-004 By Woodward MSLC Master Synchronizer and Load Control |
Condition |
Pre-Owned Cleaned and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Model Number | 9907-004 |
| OEM | Woodward |
| Series ID | MSLC |
| Product Description | Master Synchronizer and Load Control |
| Configuration | 4-Wire Wye |
| Voltage Rating | 120/240VAC |
| Control Power Supply Input | 12-40VDC |
| 120V Synchronizer Voltage Range | 75-150VACrms |
| 240V Synchronizer Voltage Range | 150-300VACrms |
| Maximum Operating Temperature | 70°C |
| Maximum Humidity | 95% (@38°C) |
| Manual | 02022 |
Frequently Asked Questions | |
| What standard is the diagnostic/calibration port on the 9907-004? This is an RS-422 type port. | |
| What kind of local area network is supported with the 9907-004? The 9907-004 uses Echelon LONWORKS network technology. | |
| What other MSLC types are available besides the 9907-004? These MSLC units also come in 3-wire delta 120V and 3-wire delta 240V configurations. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The 9907-004 is the only wye version of MSLC available, making it highly sought-after for these applications. This model is rated for both 120V and 240V, making it more versatile than the delta versions that are only made for one particular voltage rating. -Automation Industrial Quality Assurance Manager |
|
