- M/N: 9907-146
- Manufacturer: Woodward
- Product Family: ProTech 203
- Functional Role: Overspeed Protection
- Trip Type: Energize-to-Trip
- Voltage Rating: 24VDC
- Acceptable Voltage Range: 18-32VDC
- Power Consumption: 5.12W
- Speed Sensing Frequency Range: 100Hz to 32kHz
- Trip-Point Frequency Range: 350Hz to 25kHz
- Sample Time: Every 5ms
- Manual: 85204
-
How protective is the enclosure on the 9907-146?
- The enclosure for the 9907-146 is rated at a NEMA4/4X and IP54 level.
-
Can the 9907-146 be reset remotely?
- Yes, this is supported on the 9907-146.
-
How fast is the response time of the 9907-146?
- The 9907-146 has a total response time of up to 40ms at maximmum.
⭐⭐⭐⭐⭐ 5.0
Not only does the 9907-146 have a wide range of system protection features that keep your application safe, but it also has a number of self-testing and other diagnostic features that help keep this device operating safely and efficiently. For low voltage applications, this is one of the best overspeed protection devices available. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |

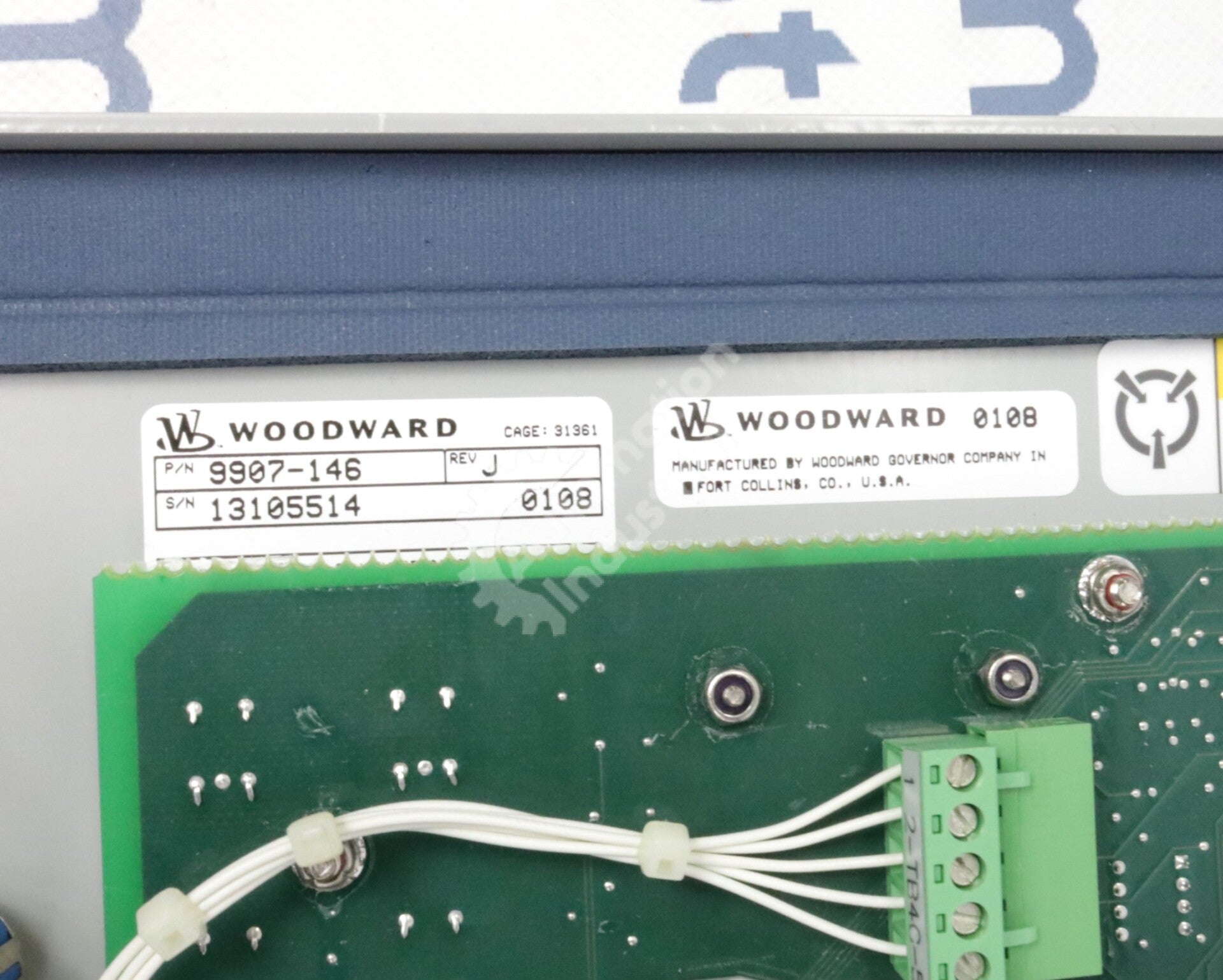

9907-146 ProTech 203 Overspeed Protection |
Description |
9907-146 By Woodward 24VDC 5.12W Energize-to-Trip Unit |
Condition |
Pre-Owned Clean and Tested. With 1 Year Warranty. |
Technical Specifications | |
| M/N | 9907-146 |
| Manufacturer | Woodward |
| Product Family | ProTech 203 |
| Functional Role | Overspeed Protection |
| Trip Type | Energize-to-Trip |
| Voltage Rating | 24VDC |
| Acceptable Voltage Range | 18-32VDC |
| Power Consumption | 5.12W |
| Speed Sensing Frequency Range | 100Hz to 32kHz |
| Trip-Point Frequency Range | 350Hz to 25kHz |
| Sample Time | Every 5ms |
| Manual | 85204 |
Frequently Asked Questions | |
| How protective is the enclosure on the 9907-146? The enclosure for the 9907-146 is rated at a NEMA4/4X and IP54 level. | |
| Can the 9907-146 be reset remotely? Yes, this is supported on the 9907-146. | |
| How fast is the response time of the 9907-146? The 9907-146 has a total response time of up to 40ms at maximmum. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
Not only does the 9907-146 have a wide range of system protection features that keep your application safe, but it also has a number of self-testing and other diagnostic features that help keep this device operating safely and efficiently. For low voltage applications, this is one of the best overspeed protection devices available. -Automation Industrial Quality Assurance Manager |
|
