- Model No: ACX700
- Producer: Andover Controls/Schneider Electric
- Part Description: Building Access Controller
- Base Controlled Doors: 2
- Max Controlled Doors: 4
- Supported Card Reader Types: Wiegand, ABA
- Max Cable Length: 4,000ft
- AC Input Power: 24, 115, 230VAC
- DC Input Power: 12VDC
- Power Consumption: 20VA (115/230VAC), 50VA (12VDC/24VAC)
- Dimensions: 19 x 15 x 4.56in
- Weight: 17lbs
-
How do you increase the door capacity of the ACX700?
- This can be done via EMX190 modules.
-
Does the DC power supply for the ACX700 need to be a UPS?
- Yes, this must be a UPS.
-
Can a cabinet door tamper switch be installed with the ACX700?
- Yes, the ACX700 is compatible with this type of tamper switch.
⭐⭐⭐⭐⭐ 5.0
The ACX700 can control access for several doors at a time and is compatible with the high-speed Infinet type network. The expandability and versatility of this access controller make it a solid choice for all sorts of applications, small or large. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
ACX700 Andover Continuum |
Description |

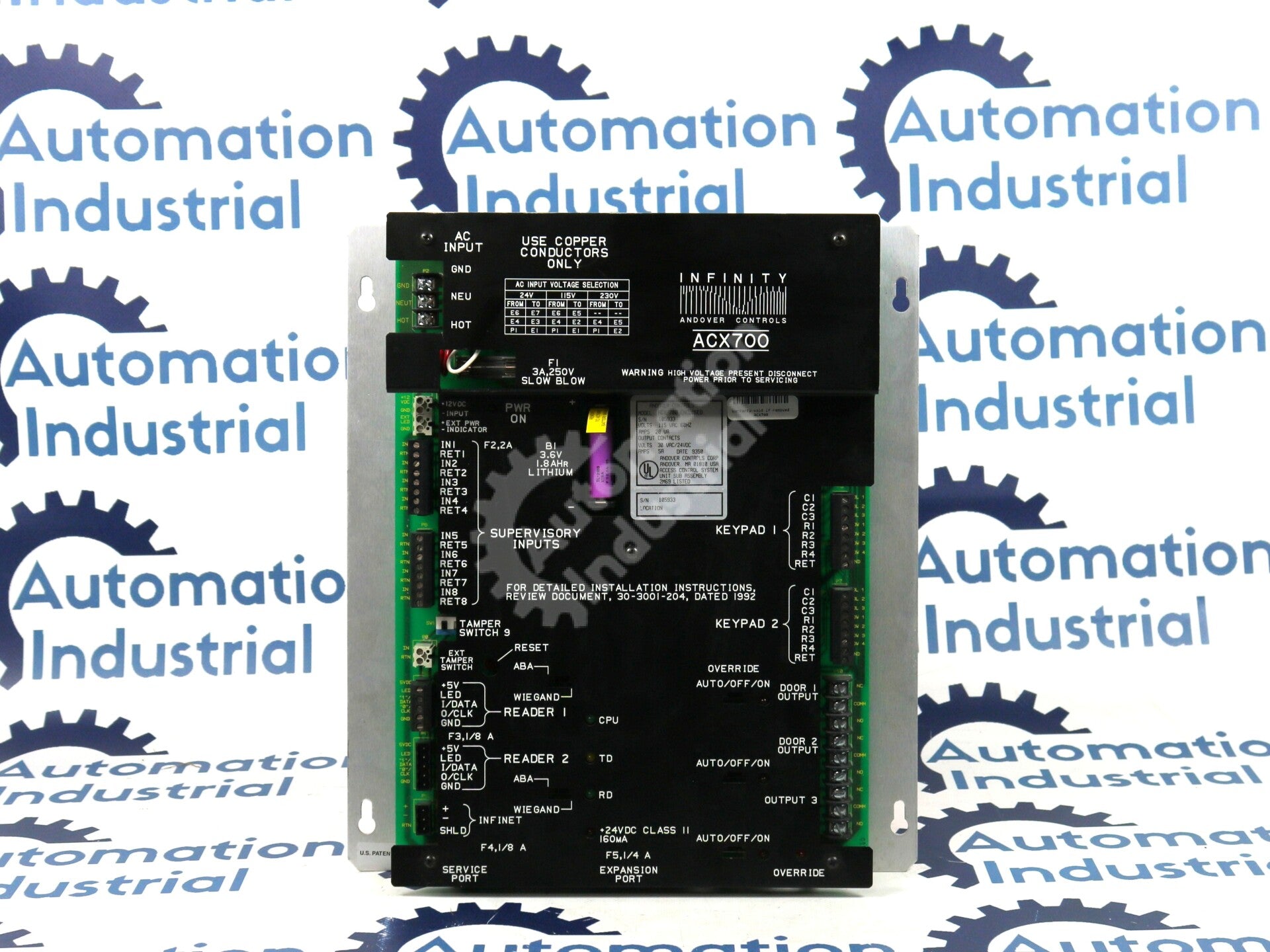

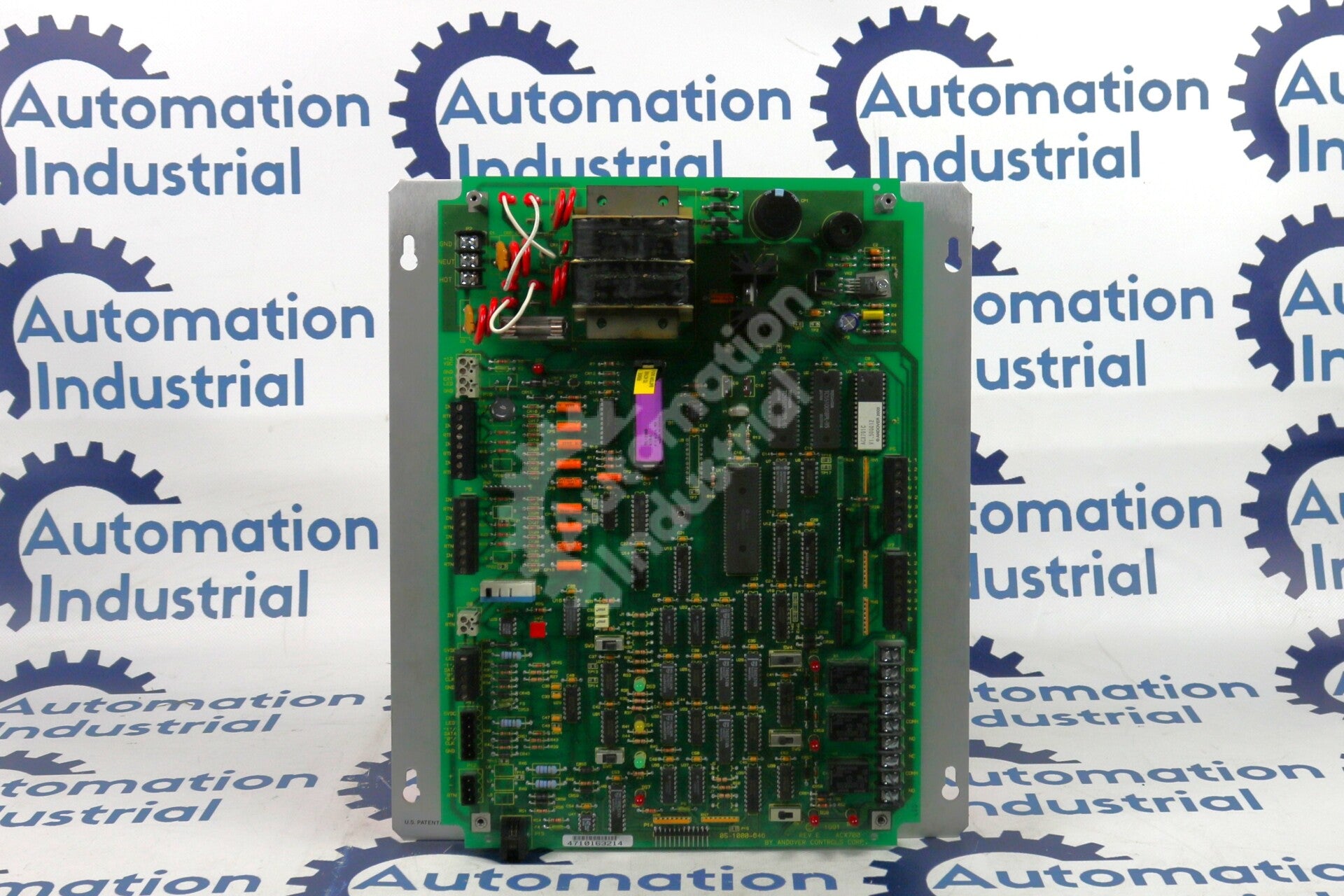

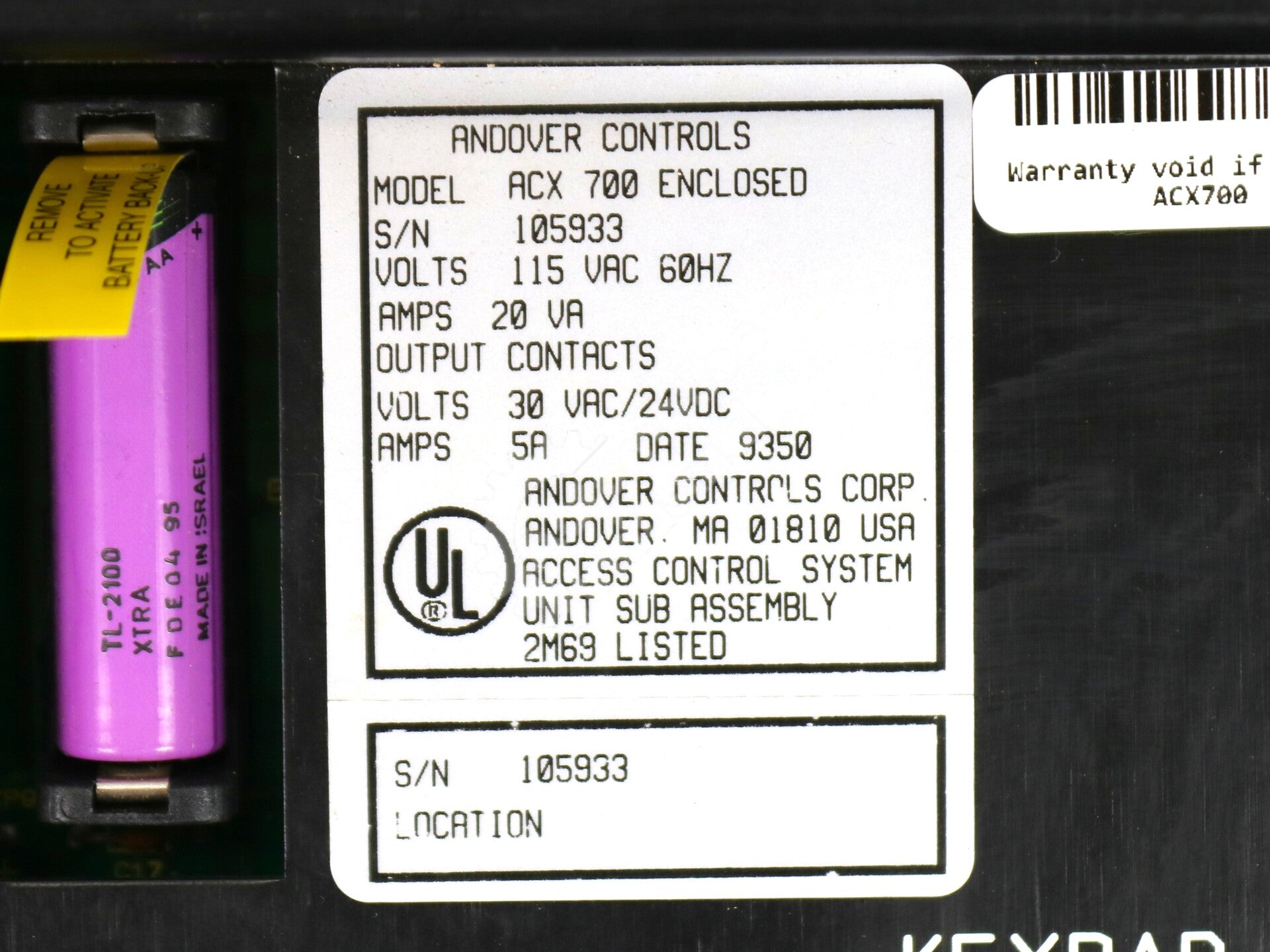

ACX700 By Schneider Electric 05-1001-646 Building Access Controller Module |
Condition |
Pre-Owned Cleaned and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Model No | ACX700 |
| Producer | Andover Controls/Schneider Electric |
| Part Description | Building Access Controller |
| Base Controlled Doors | 2 |
| Max Controlled Doors | 4 |
| Supported Card Reader Types | Wiegand, ABA |
| Max Cable Length | 4,000ft |
| AC Input Power | 24, 115, 230VAC |
| DC Input Power | 12VDC |
| Power Consumption | 20VA (115/230VAC), 50VA (12VDC/24VAC) |
| Dimensions | 19 x 15 x 4.56in |
| Weight | 17lbs |
Frequently Asked Questions | |
| How do you increase the door capacity of the ACX700? This can be done via EMX190 modules. | |
| Does the DC power supply for the ACX700 need to be a UPS? Yes, this must be a UPS. | |
| Can a cabinet door tamper switch be installed with the ACX700? Yes, the ACX700 is compatible with this type of tamper switch. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The ACX700 can control access for several doors at a time and is compatible with the high-speed Infinet type network. The expandability and versatility of this access controller make it a solid choice for all sorts of applications, small or large. -Automation Industrial Quality Assurance Manager |
|
