- Model Code: 1744
- Manufacturer: Advanced Micro Controls (AMCI)
- Product Family: Series 1700
- Designation: Encoder
- Version: 13 Bit
- Counts: 8192
- Transducer Inputs: 4
- CE Marked: Yes
- Read Only Memory: 8 Words
- Program Enabled Memory: 9 Words
- Application: AB 1771
- Manual: 940-57011
-
Where do you install the 1744?
- The 1744 installs directly to the I/O chassis.
-
How much current does the 1744 draw?
- The 1744 draws up to a maximum of 750mA from the backplane.
-
How many slots does the 1744 use in the backplane?
- The 1744 is a two-slot card.
⭐⭐⭐⭐⭐ 5.0
The 1744 is the best Series 1700 encoder option for larger, more advanced systems, as it offers both the highest number of inputs and resolution for these inputs. This one module offers four times as many inputs and eight times the resolution counts as the basic option in the series. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
1744 |
Description |

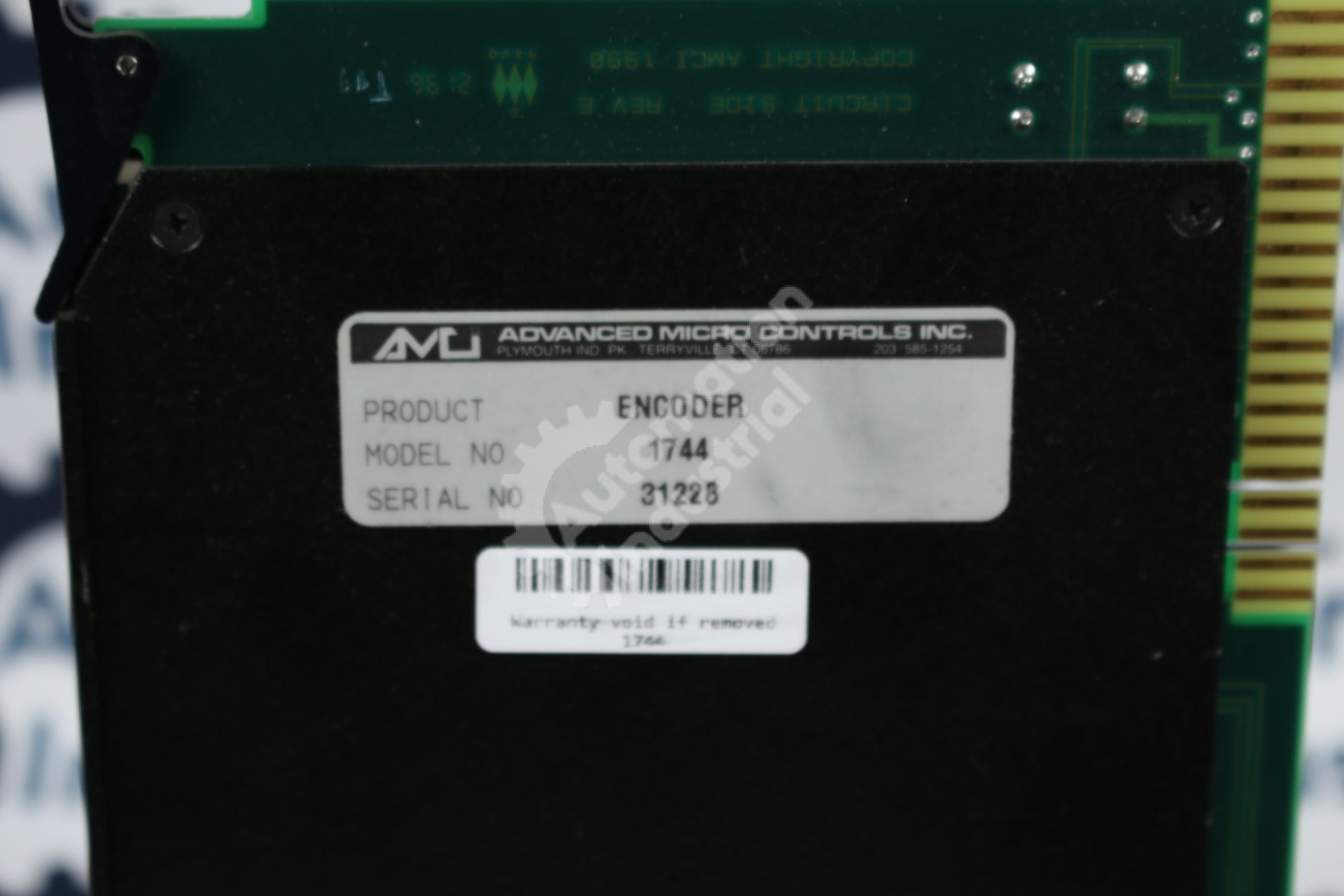

Advanced Micro Control 1744 Encoder Module |
Condition |
Pre-Owned Clean and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Model Code | 1744 |
| Manufacturer | Advanced Micro Controls (AMCI) |
| Product Family | Series 1700 |
| Designation | Encoder |
| Version | 13 Bit |
| Counts | 8192 |
| Transducer Inputs | 4 |
| CE Marked | Yes |
| Read Only Memory | 8 Words |
| Program Enabled Memory | 9 Words |
| Application | AB 1771 |
| Manual | 940-57011 |
Frequently Asked Questions | |
| Where do you install the 1744? The 1744 installs directly to the I/O chassis. | |
| How much current does the 1744 draw? The 1744 draws up to a maximum of 750mA from the backplane. | |
| How many slots does the 1744 use in the backplane? The 1744 is a two-slot card. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The 1744 is the best Series 1700 encoder option for larger, more advanced systems, as it offers both the highest number of inputs and resolution for these inputs. This one module offers four times as many inputs and eight times the resolution counts as the basic option in the series. -Automation Industrial Quality Assurance Manager |
|
