- Part Number: AFB24-SR
- Made By: Belimo
- Product Type: Spring Return Damper Actuator
- Torque Motor Rating: 180lb-in (20Nm)
- Compatible Voltage Type: AC/DC
- Nominal Voltage Rating: 24VAC/DC
- Operating Range: 2-10V
- Input Impedance: 100Ω (2-10V), 500Ω (4-20mA)
- Auxiliary Switches: 2xSPDT
- Switching Capacity: 1mA-3A, 5VDC-250VAC
- Rotation Angle: 95°
- Position Indicator: Mechanical
-
What angles can the end stop of the AFB24-SR be placed at?
- The end stop can be between 35° and 95°.
-
What transformer sizing is the AFB24-SR rated for?
- The AFB24-SR is rated for 8.5VA.
-
What type of power supply is the AFB24-SR made to work with?
- The AFB24-SR is made for use with Class 2 supplies.
⭐⭐⭐⭐⭐ 5.0
The AFB24-SR allows for more customized control than a lot of similar actuator models. For example, you can adjust aspects like the end stop and fail-safe directionality to better fit into your particular application. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
AFB24-SR |
Description |

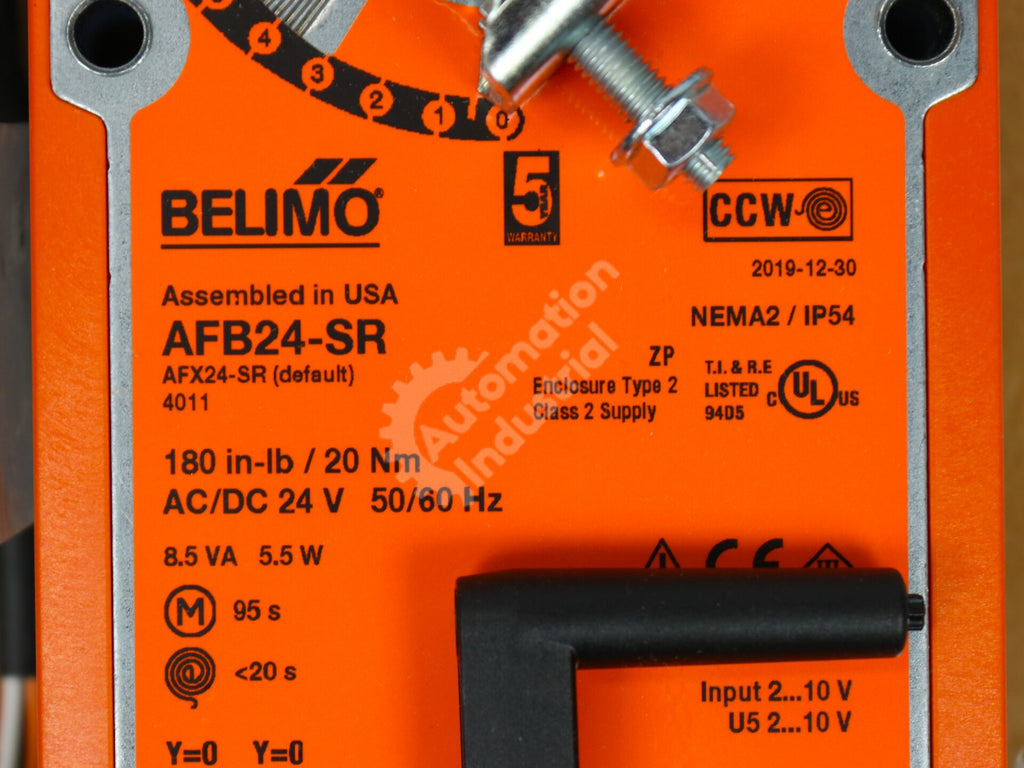

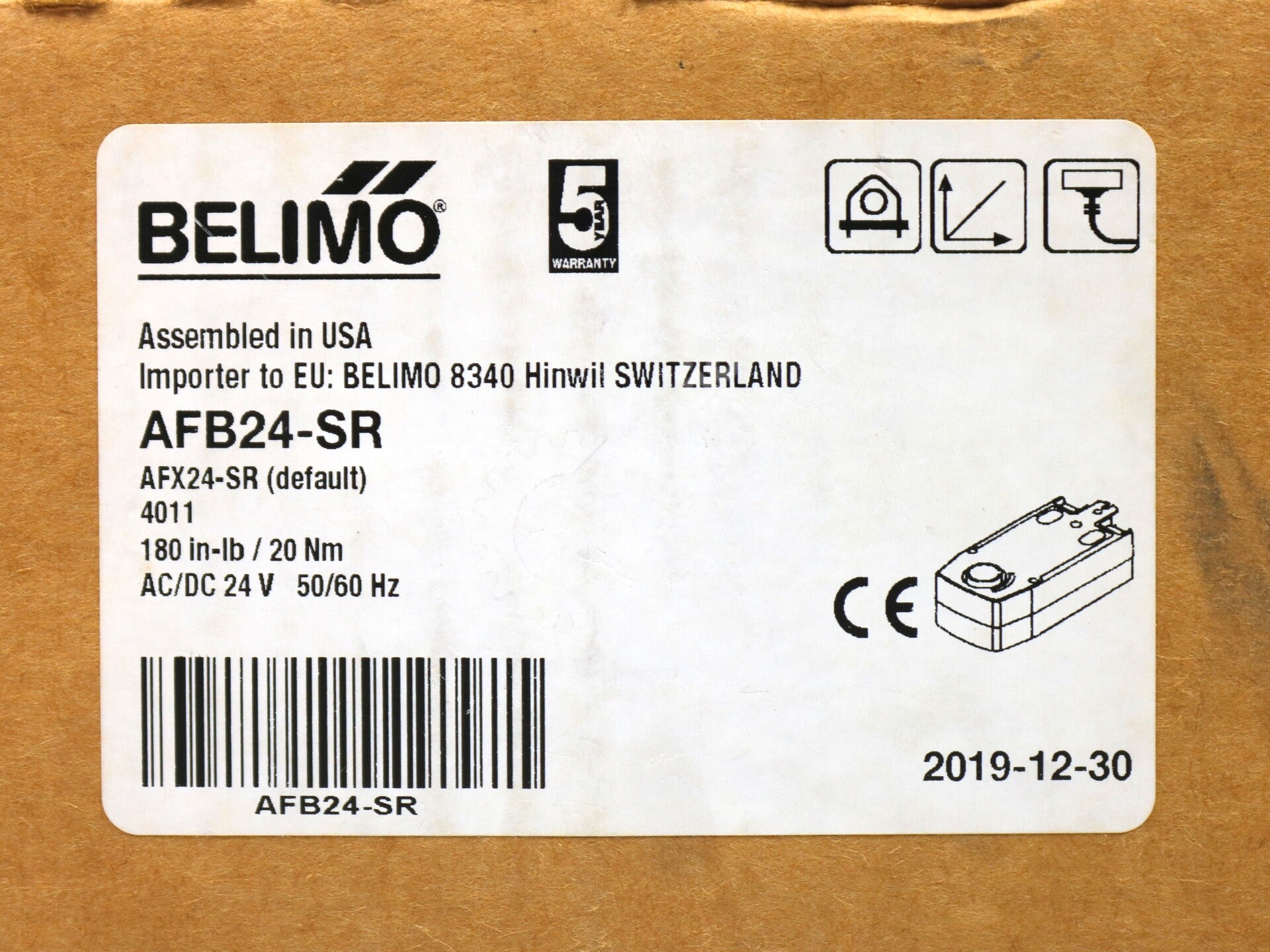

AFB24-SR By Belimo 20Nm Spring Return Proportional Damper Actuator NSFP |
Condition |
New Surplus Factory Package With 1 Year Warranty. |
Technical Specifications | |
| Part Number | AFB24-SR |
| Made By | Belimo |
| Product Type | Spring Return Damper Actuator |
| Torque Motor Rating | 180lb-in (20Nm) |
| Compatible Voltage Type | AC/DC |
| Nominal Voltage Rating | 24VAC/DC |
| Operating Range | 2-10V |
| Input Impedance | 100Ω (2-10V), 500Ω (4-20mA) |
| Auxiliary Switches | 2xSPDT |
| Switching Capacity | 1mA-3A, 5VDC-250VAC |
| Rotation Angle | 95° |
| Position Indicator | Mechanical |
Frequently Asked Questions | |
| What angles can the end stop of the AFB24-SR be placed at? The end stop can be between 35° and 95°. | |
| What transformer sizing is the AFB24-SR rated for? The AFB24-SR is rated for 8.5VA. | |
| What type of power supply is the AFB24-SR made to work with? The AFB24-SR is made for use with Class 2 supplies. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The AFB24-SR allows for more customized control than a lot of similar actuator models. For example, you can adjust aspects like the end stop and fail-safe directionality to better fit into your particular application. -Automation Industrial Quality Assurance Manager |
|
