- Model Number: D2-RSSS
- Produced By: Automation Direct
- Unit Series: DL205
- Module Type: Remote Slave
- Baud Rate: 19.2 to 614.4kBaud
- Supported Protocols: RM-NET, SM-NET
- RM-Net Slaves: 7
- SM-Net Slaves: 31
- Max Remote I/O Points: 2048
- Link Type: Twisted Pair Cable
- Intelligent: No
- Manual Number: D2-REMIO-M
-
Which bases can the D2-RSSS be installed in?
- The D2-RSSS is compatible with the 3, 4, 6, and 9 slot bases.
-
What response does the D2-RSSS have to a communications failure?
- The D2-RSSS can either hold the last output state or clear the output state in the event of a failure.
-
Which serial protocol does the communication port on the D2-RSSS follow?
- The D2-RSSS has an RS-232C communications port.
⭐⭐⭐⭐⭐ 5.0
The D2-RSSS is capable of connecting to a single remote master along with up to 30 other slaves. This makes these slave modules extremely valuable in large, spread-out applications where many DL205 units need to communicate. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
D2-RSSS |
Description |

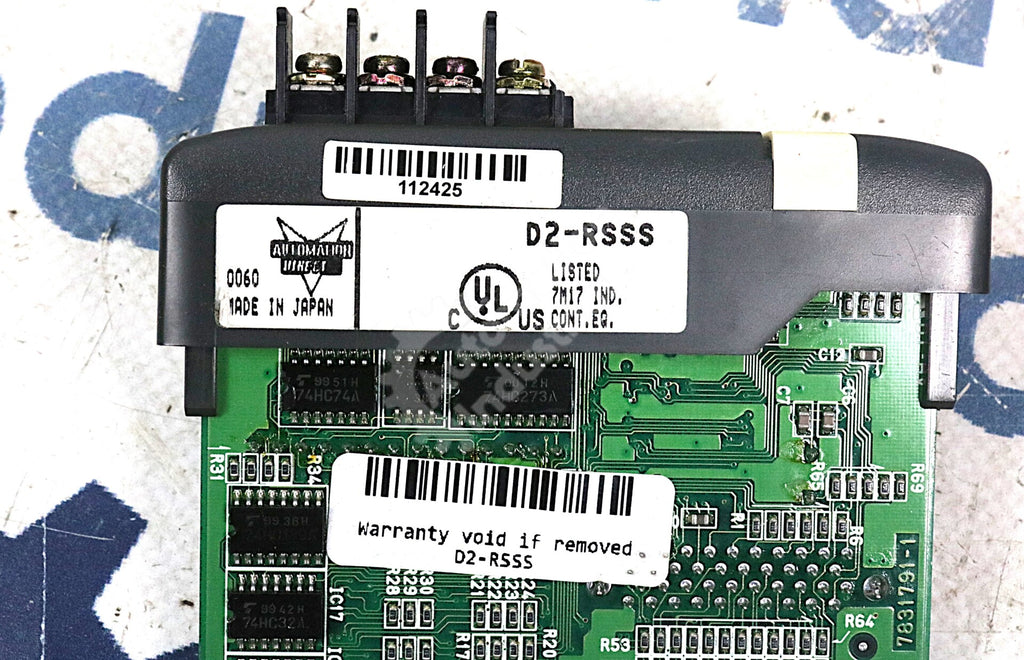

D2-RSSS By Automation Direct I/O Slave Module |
Condition |
Pre-Owned Clean and Tested With 1 Year Warranty. |
Technical Specifications | |
| Model Number | D2-RSSS |
| Produced By | Automation Direct |
| Unit Series | DL205 |
| Module Type | Remote Slave |
| Baud Rate | 19.2 to 614.4kBaud |
| Supported Protocols | RM-NET, SM-NET |
| RM-Net Slaves | 7 |
| SM-Net Slaves | 31 |
| Max Remote I/O Points | 2048 |
| Link Type | Twisted Pair Cable |
| Intelligent | No |
| Manual Number | D2-REMIO-M |
Frequently Asked Questions | |
| Which bases can the D2-RSSS be installed in? The D2-RSSS is compatible with the 3, 4, 6, and 9 slot bases. | |
| What response does the D2-RSSS have to a communications failure? The D2-RSSS can either hold the last output state or clear the output state in the event of a failure. | |
| Which serial protocol does the communication port on the D2-RSSS follow? The D2-RSSS has an RS-232C communications port. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The D2-RSSS is capable of connecting to a single remote master along with up to 30 other slaves. This makes these slave modules extremely valuable in large, spread-out applications where many DL205 units need to communicate. -Automation Industrial Quality Assurance Manager |
|
