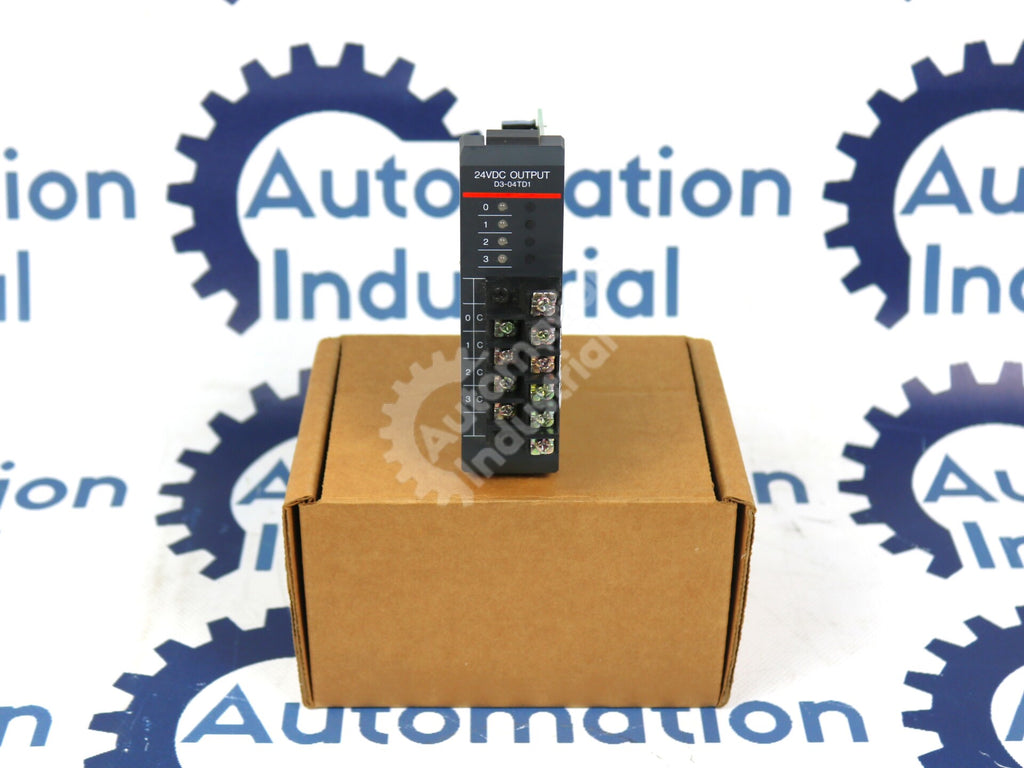

- Product Number: D3-04TD1
- Brand: Automation Direct
- Series: DL305
- Description: Discrete Output Module
- Output Points: 4
- Current Sinking/Sourcing: Sinking
- Operating Voltage Range: 5-24VDC
- Peak Voltage: 45VDC
- Commons: 4
- Max Current Per Point: 2A
- Max Current Per Module: 6A
- Fuses: 4
-
Can you replace the fuses on the D3-04TD1 yourself?
- Yes, these fuses are user-replaceable.
-
How fast is the ON/OFF and OFF/ON response time on the D3-04TD1?
- The response time for both cases is only 0.1 milliseconds.
-
Are the commons internally connected on the D3-04TD1?
- Yes, all of the commons on the D3-04TD1 are internally connected.
⭐⭐⭐⭐⭐ 5.0
The D3-04TD1 is one of the best-protected DC output modules for use with DL305. These tend to last for a very long time thanks to the extensive fusing and strong resistance to common hazards such as inrush current. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
D3-04TD1 DirectLogic 305 |
Description |

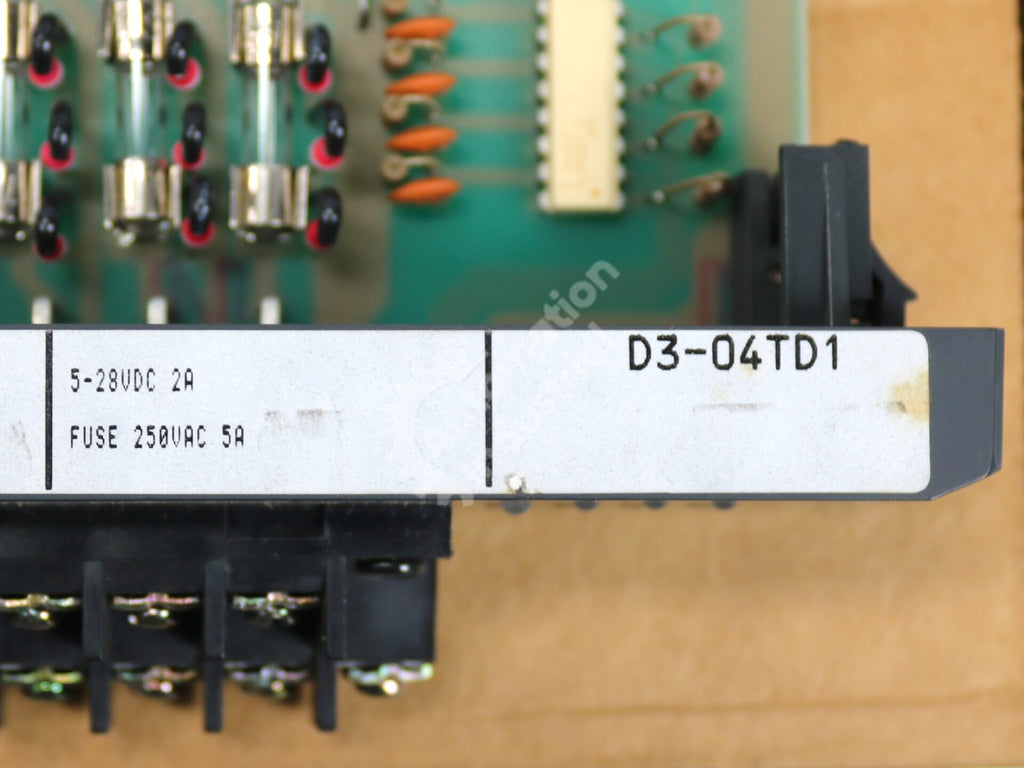

D3-04TD1 By Automation Direct 5-28VDC 2A 4-Point Output Module |
Condition |
Pre-Owned Clean and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Product Number | D3-04TD1 |
| Brand | Automation Direct |
| Series | DL305 |
| Description | Discrete Output Module |
| Output Points | 4 |
| Current Sinking/Sourcing | Sinking |
| Operating Voltage Range | 5-24VDC |
| Peak Voltage | 45VDC |
| Commons | 4 |
| Max Current Per Point | 2A |
| Max Current Per Module | 6A |
| Fuses | 4 |
Frequently Asked Questions | |
| Can you replace the fuses on the D3-04TD1 yourself? Yes, these fuses are user-replaceable. | |
| How fast is the ON/OFF and OFF/ON response time on the D3-04TD1? The response time for both cases is only 0.1 milliseconds. | |
| Are the commons internally connected on the D3-04TD1? Yes, all of the commons on the D3-04TD1 are internally connected. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The D3-04TD1 is one of the best-protected DC output modules for use with DL305. These tend to last for a very long time thanks to the extensive fusing and strong resistance to common hazards such as inrush current. -Automation Industrial Quality Assurance Manager |
|
