- Part Number: D4-HSC
- Original Equipment Manufacturer: Automation Direct
- Product Line: DL405
- Description: High Speed Counter Module
- Channels: 1
- I/O Points Required: 16 X, 32 Y
- Internal Power Consumption: 300mA (@5VDC)
- Maximum Counting Speed: 100kHz
- Input Pulse Width: 5µs Max
- Counting Range: -8,388,608 to 8,388,607
- Counting Directions: Up/Down
- Removable Terminals: Yes
-
What kind of motors can the D4-HSC control?
- The D4-HSC is capable of controlling variable speed motors which can change speed upon receiving a 10.2-26.4VDC signal.
-
Where can the D4-HSC be installed?
- The D4-HSC can be installed in a CPU or expansion base, but not a remote base.
-
How many D4-HSC modules can be installed per CPU in a system?
- Each CPU can support up to 8 of these D4-HSC modules.
⭐⭐⭐⭐⭐ 5.0
The D4-HSC is capable of asynchronous, rapid pulse-counting, which is needed in a wide range of common applications. Because this module has its own microprocessor, it also does not impact your main DL405 CPU's performance during operation. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
D4-HSC DirectLogic 405 |
Description |

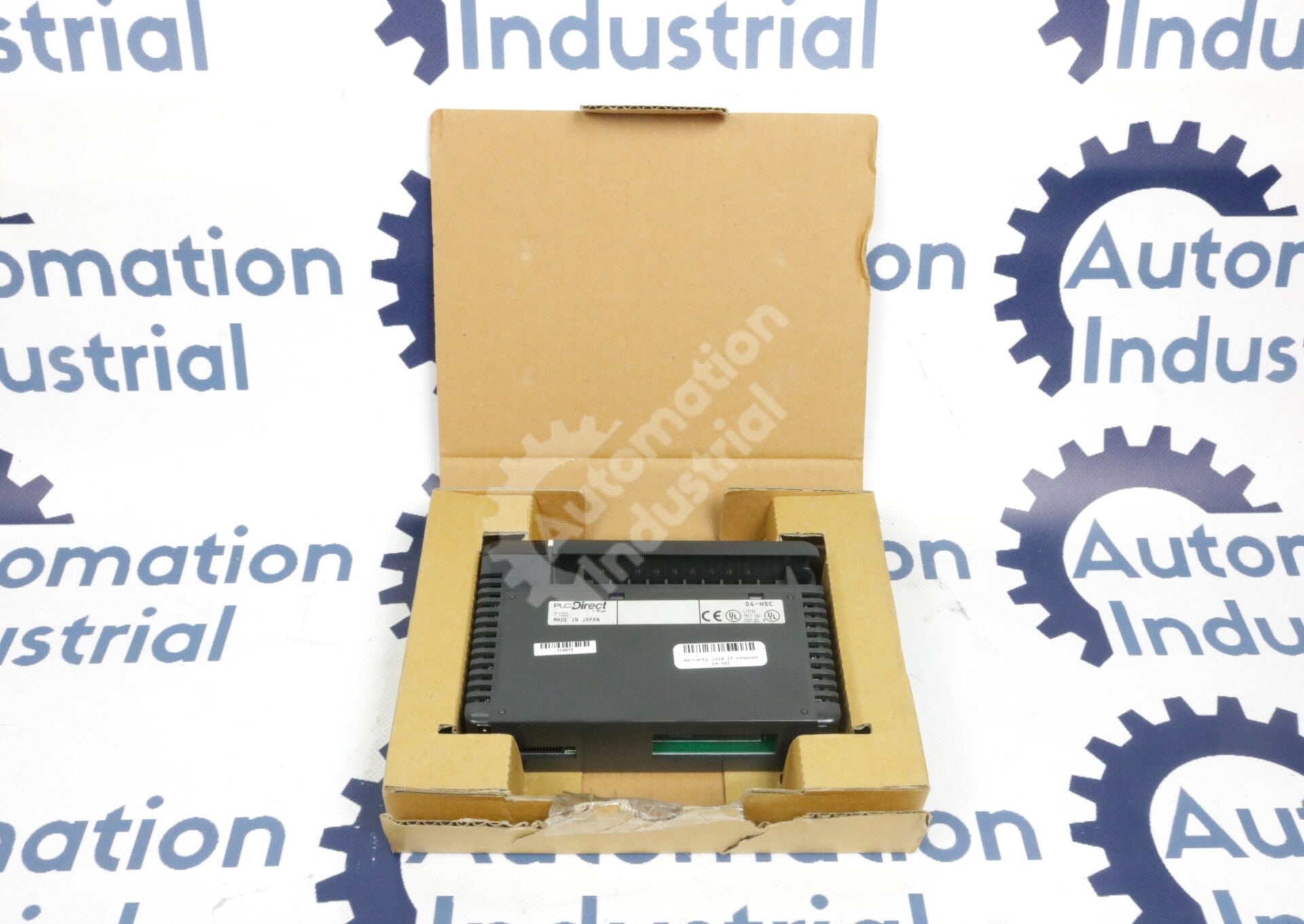

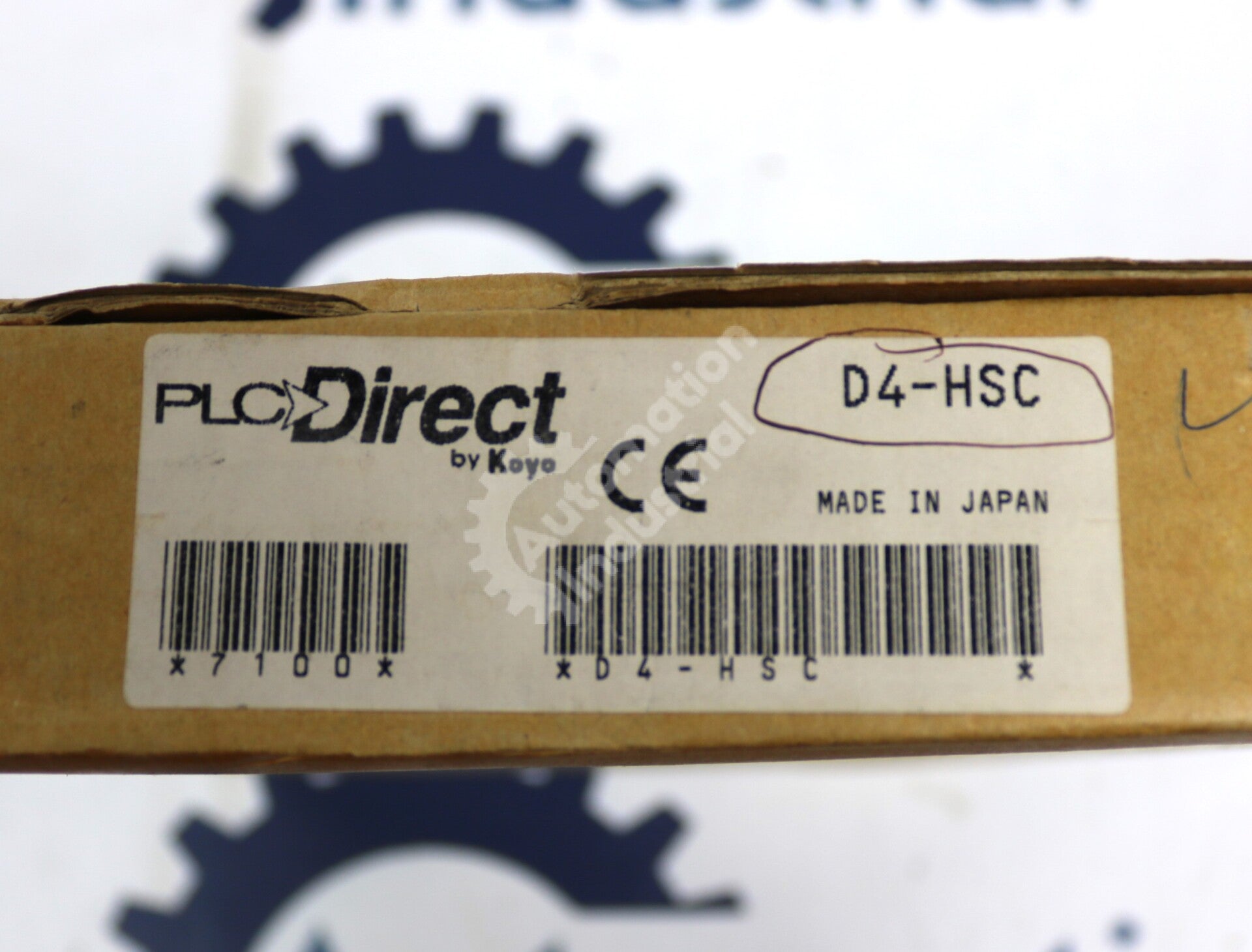

D4-HSC By Automation Direct 3-Point 12-24VDC High-Speed Pulse Input Module NSFP |
Condition |
New Surplus Factory Package With 1 Year Warranty |
Technical Specifications | |
| Part Number | D4-HSC |
| Original Equipment Manufacturer | Automation Direct |
| Product Line | DL405 |
| Description | High Speed Counter Module |
| Channels | 1 |
| I/O Points Required | 16 X, 32 Y |
| Internal Power Consumption | 300mA (@5VDC) |
| Maximum Counting Speed | 100kHz |
| Input Pulse Width | 5µs Max |
| Counting Range | -8,388,608 to 8,388,607 |
| Counting Directions | Up/Down |
| Removable Terminals | Yes |
Frequently Asked Questions | |
| What kind of motors can the D4-HSC control? The D4-HSC is capable of controlling variable speed motors which can change speed upon receiving a 10.2-26.4VDC signal. | |
| Where can the D4-HSC be installed? The D4-HSC can be installed in a CPU or expansion base, but not a remote base. | |
| How many D4-HSC modules can be installed per CPU in a system? Each CPU can support up to 8 of these D4-HSC modules. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The D4-HSC is capable of asynchronous, rapid pulse-counting, which is needed in a wide range of common applications. Because this module has its own microprocessor, it also does not impact your main DL405 CPU's performance during operation. -Automation Industrial Quality Assurance Manager |
|
