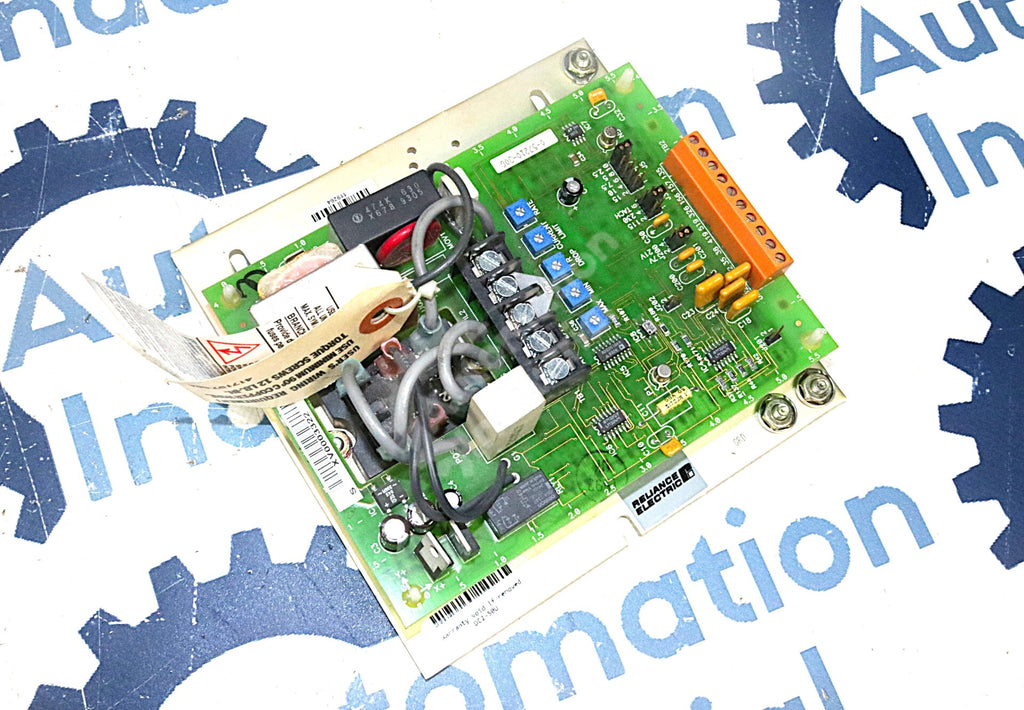

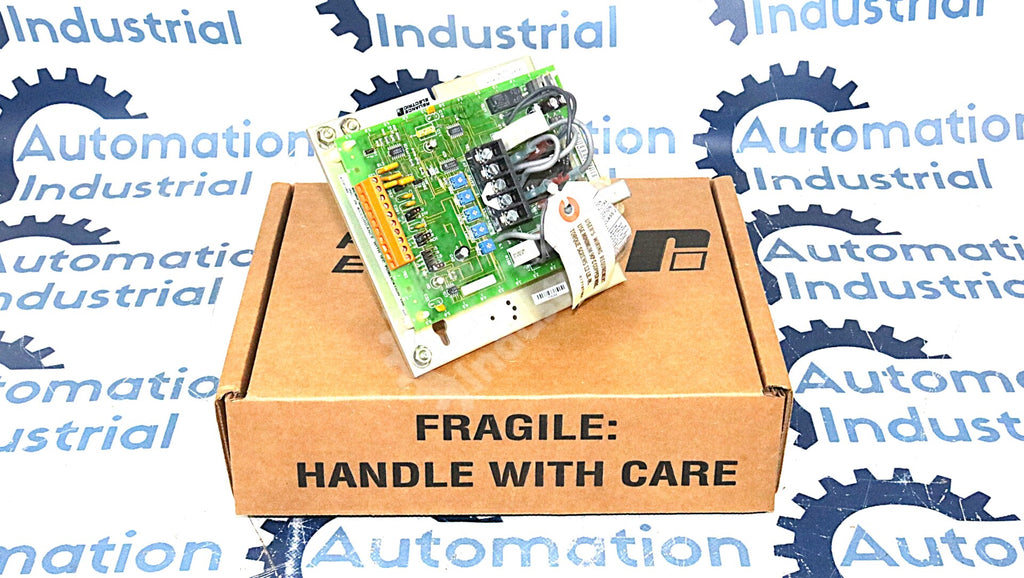

- Unit Code: DC2-50U
- Produced By: Reliance Electric
- Model Line: DC2
- Product Type: Drive
- Version: Speed Control
- Basic: Yes
- Special Customer Model: No
- Nominal Voltage Range: 115/230VAC
- Horsepower Range: 0.25-2HP
- Efficiency: 97%
- Speed Control Range: 50% to 100% Max, 10% to 50% Min
- Manual: D2-3231
-
What special mounting requirements are there for the DC2-50U?
- In order to reach full horsepower compatibility, the DC2-50U must be installed on a proper 18" by 18" heatsink.
-
Does the DC2-50U support dynamic braking?
- No, this is not supported in this model.
-
Is there a warranty on this DC2-50U?
- This DC2-50U comes with our 1 year warranty.
⭐⭐⭐⭐⭐ 5.0
The DC2-50U is one of the simplest speed controllers in the DC2 series. As one of the non-enclosed versions of these modules, installation and maintenance are much easier processes at the expense of protection against environmental hazards. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
DC2-50U DC2 |
Description |
DC2-50U By Reliance Electric DC Motor Controller |
Condition |
Pre-Owned Clean and Tested With 1 Year Warranty. |
Technical Specifications | |
| Unit Code | DC2-50U |
| Produced By | Reliance Electric |
| Model Line | DC2 |
| Product Type | Drive |
| Version | Speed Control |
| Basic | Yes |
| Special Customer Model | No |
| Nominal Voltage Range | 115/230VAC |
| Horsepower Range | 0.25-2HP |
| Efficiency | 97% |
| Speed Control Range | 50% to 100% Max, 10% to 50% Min |
| Manual | D2-3231 |
Frequently Asked Questions | |
| What special mounting requirements are there for the DC2-50U? In order to reach full horsepower compatibility, the DC2-50U must be installed on a proper 18" by 18" heatsink. | |
| Does the DC2-50U support dynamic braking? No, this is not supported in this model. | |
| Is there a warranty on this DC2-50U? This DC2-50U comes with our 1 year warranty. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The DC2-50U is one of the simplest speed controllers in the DC2 series. As one of the non-enclosed versions of these modules, installation and maintenance are much easier processes at the expense of protection against environmental hazards. -Automation Industrial Quality Assurance Manager |
|
