- Part Code: DC2-52UF
- Made By: Reliance Electric/Rockwell Automation
- Product Series: DC2 Drives
- Unit Type: Drive Controller
- Version: Speed Control
- Optional Features: Process Control Interface
- Process Control Input: 1-5mA, 4-20mA, 10-50mA, 0-10V
- Grounded/Ungrounded: Either
- Basic Feature Set: Supported
- Input Isolation: 300KΩ
- Aux Form C Contact: Yes
- Manual ID: D2-3231
-
How can the motor speed be adjusted with the DC2-52UF?
- This can be done via a process control output signal or via the local potentiometer.
-
How do you select the process control signal input on the DC2-52UF?
- This is done via jumper.
-
Can the gain/bias of the process interface be adjusted on the DC2-52UF?
- Yes, you can adjust both of these parameters.
⭐⭐⭐⭐⭐ 5.0
The primary feature that sets the DC2-52UF apart from basic DC2 controllers is its process control interface features. This input has a massive amount of isolation to help ensure noise does not interfere with this optional feature and you can have a smooth experience. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
DC2-52UF DC2 |
Description |

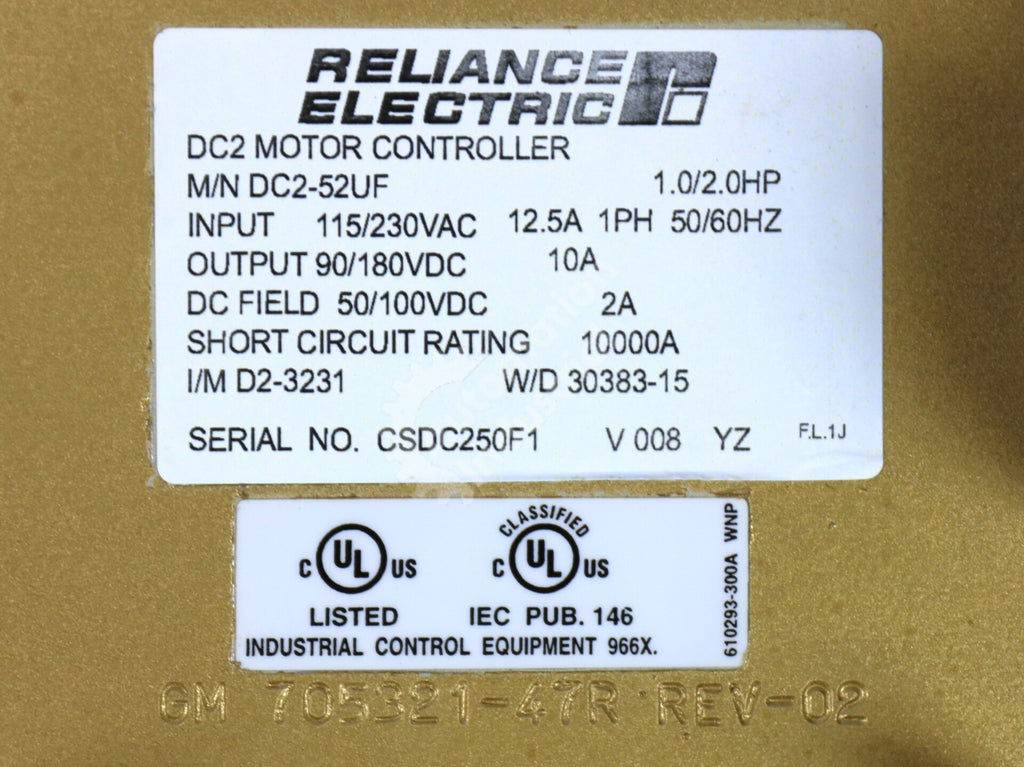

DC2-52UF By Reliance Electric 230VAC 2HP 12.5A Motor Controller |
Condition |
Pre-Owned Cleaned and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Part Code | DC2-52UF |
| Made By | Reliance Electric/Rockwell Automation |
| Product Series | DC2 Drives |
| Unit Type | Drive Controller |
| Version | Speed Control |
| Optional Features | Process Control Interface |
| Process Control Input | 1-5mA, 4-20mA, 10-50mA, 0-10V |
| Grounded/Ungrounded | Either |
| Basic Feature Set | Supported |
| Input Isolation | 300KΩ |
| Aux Form C Contact | Yes |
| Manual ID | D2-3231 |
Frequently Asked Questions | |
| How can the motor speed be adjusted with the DC2-52UF? This can be done via a process control output signal or via the local potentiometer. | |
| How do you select the process control signal input on the DC2-52UF? This is done via jumper. | |
| Can the gain/bias of the process interface be adjusted on the DC2-52UF? Yes, you can adjust both of these parameters. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The primary feature that sets the DC2-52UF apart from basic DC2 controllers is its process control interface features. This input has a massive amount of isolation to help ensure noise does not interfere with this optional feature and you can have a smooth experience. -Automation Industrial Quality Assurance Manager |
|
