- Part ID: DI-8
- Original Equipment Manufacturer: Schneider Electric
- Product Line: Andover Continuum
- Description: Digital Input Module
- Inputs: 8
- Digital Input Type: Contact Closure, 0-5V
- Counter Signal Input Type: 10Hz
- High Speed Counting: Supported
- High Speed Channels: 1, 2
- Transients: 40V
- Overload Protection: 0.5A Fuse
- Power Consumption: 0.8W
-
Can the channels on the DI-8 withstand accidental 24V input?
- Yes, these are rated to withstand accidental 24V voltages on four of its channels.
-
How do you select the high-speed counting feature on the DI-8?
- This is DIP-switch selectable.
-
Is there a specific manual for the DI-8?

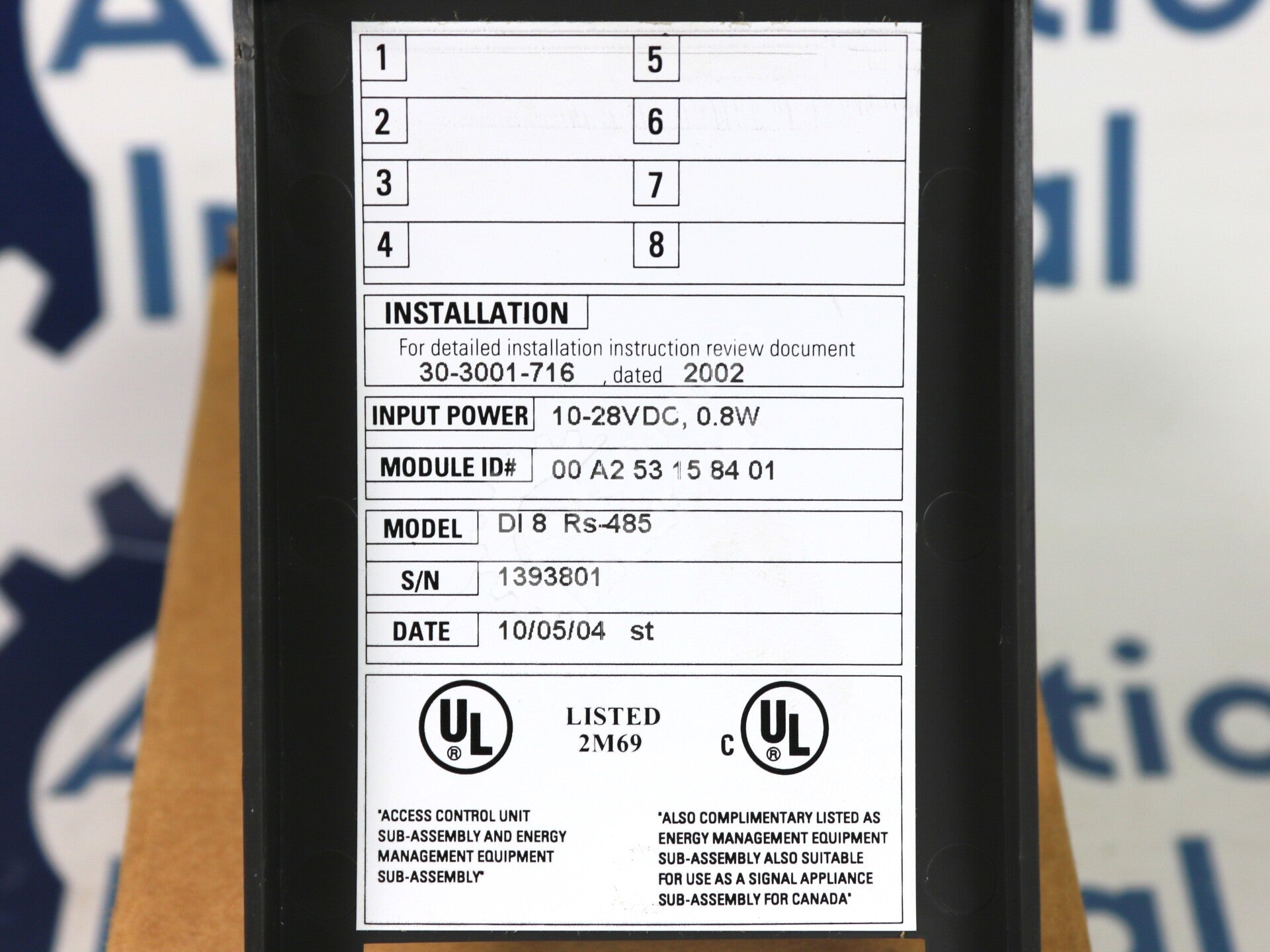

- There is no manual specific to the DI-8, but the 30-3001-716 details both it and the series as a whole.
⭐⭐⭐⭐⭐ 5.0
The DI-8 is multipurpose in that it can accept digital voltage input signals, relay contact closures, and counter signal inputs. This, in addition to the high number of available channels, makes this one of the most generally useful I/O modules in the series. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
DI-8 Andover Continuum |
Description |
DI-8 By Schneider Electric 8-Point Digital Input Module |
Condition |
Pre-Owned Cleaned and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Part ID | DI-8 |
| Original Equipment Manufacturer | Schneider Electric |
| Product Line | Andover Continuum |
| Description | Digital Input Module |
| Inputs | 8 |
| Digital Input Type | Contact Closure, 0-5V |
| Counter Signal Input Type | 10Hz |
| High Speed Counting | Supported |
| High Speed Channels | 1, 2 |
| Transients | 40V |
| Overload Protection | 0.5A Fuse |
| Power Consumption | 0.8W |
Frequently Asked Questions | |
| Can the channels on the DI-8 withstand accidental 24V input? Yes, these are rated to withstand accidental 24V voltages on four of its channels. | |
| How do you select the high-speed counting feature on the DI-8? This is DIP-switch selectable. | |
| Is there a specific manual for the DI-8? There is no manual specific to the DI-8, but the 30-3001-716 details both it and the series as a whole. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The DI-8 is multipurpose in that it can accept digital voltage input signals, relay contact closures, and counter signal inputs. This, in addition to the high number of available channels, makes this one of the most generally useful I/O modules in the series. -Automation Industrial Quality Assurance Manager |
|
