- Model Number: DS200DTBDG1A
- Manufacturer: General Electric
- Series: Mark V
- Category: Expansion Terminal Boards
- Version: Contact Output
- Associated Relays: 30
- Supported Solenoids: ≤16
- Ignition Transformer Outputs: 2
- Connectors: 11
- Manual: GEH-6153
-
What are the hardware jumpers on the DS200DTBDG1A for?
- These enable the solenoid functionality for their associated contact outputs.
-
What is the functional acronym in "DS200DTBDG1A"?
- "DTBD" is the functional acronym for this DS200DTBDG1A board.
⭐⭐⭐⭐⭐ 5.0
The DS200DTBDG1A is one of the more flexible Mark V terminal boards in terms of the types of output it can support. This single board can support a mixture of standard relay, solenoid, and ignition transformer connections. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
DS200DTBDG1A Mark V DS200 |
Description |

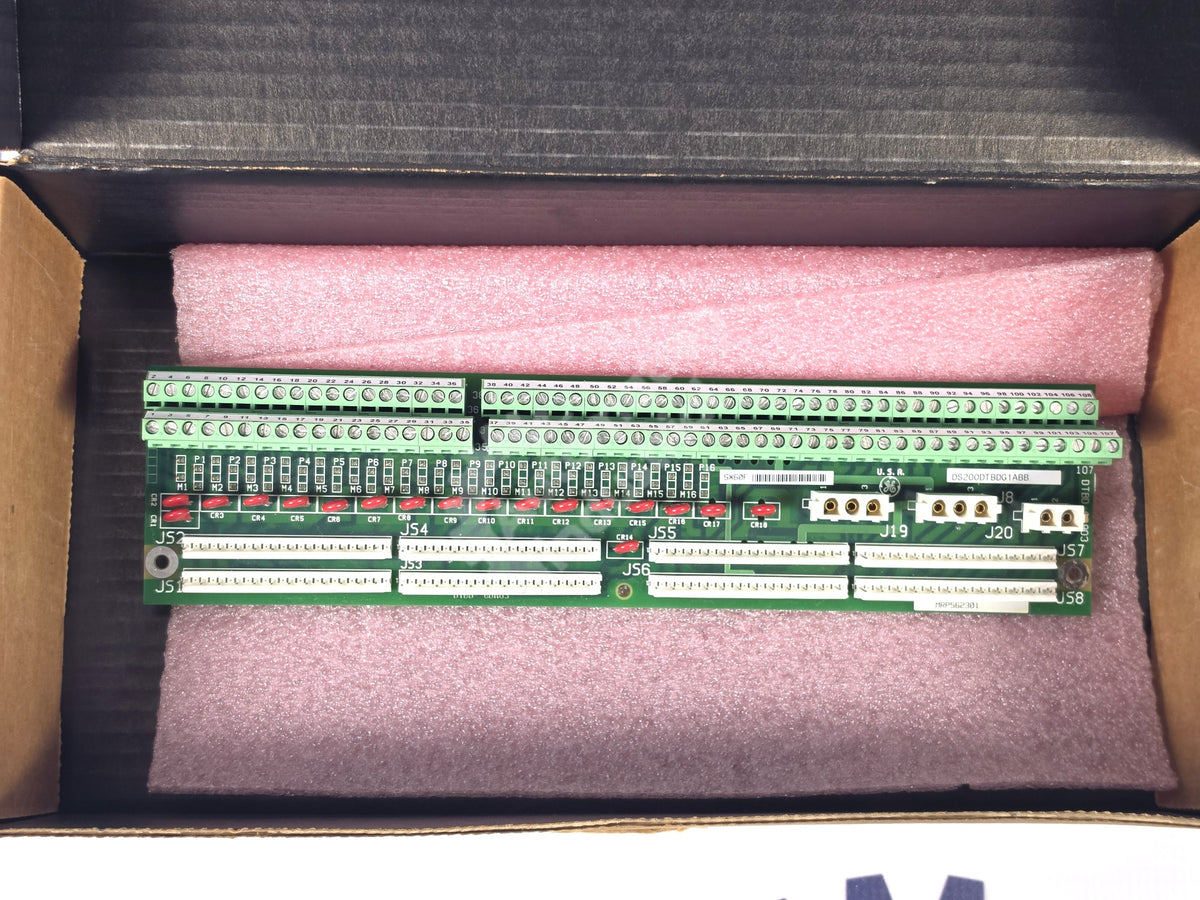

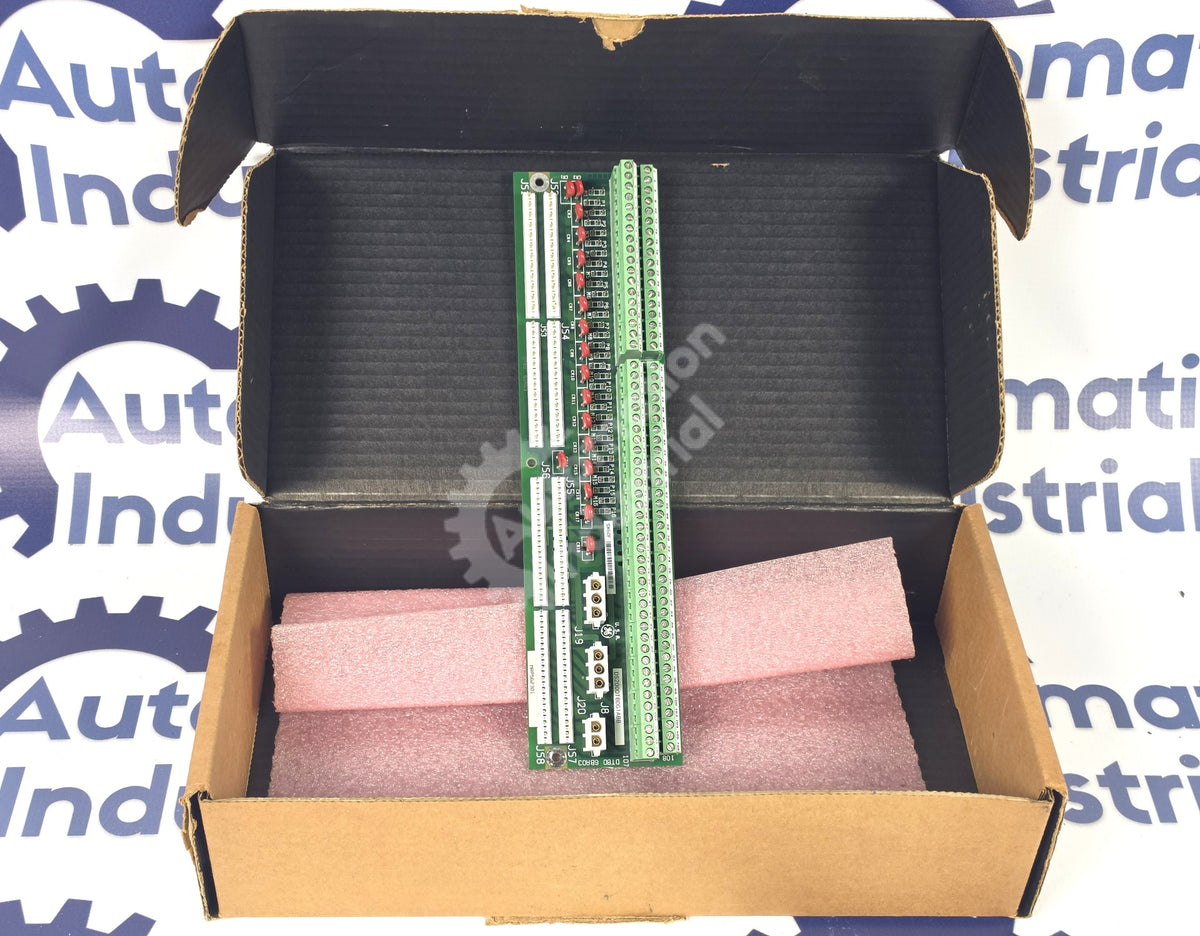

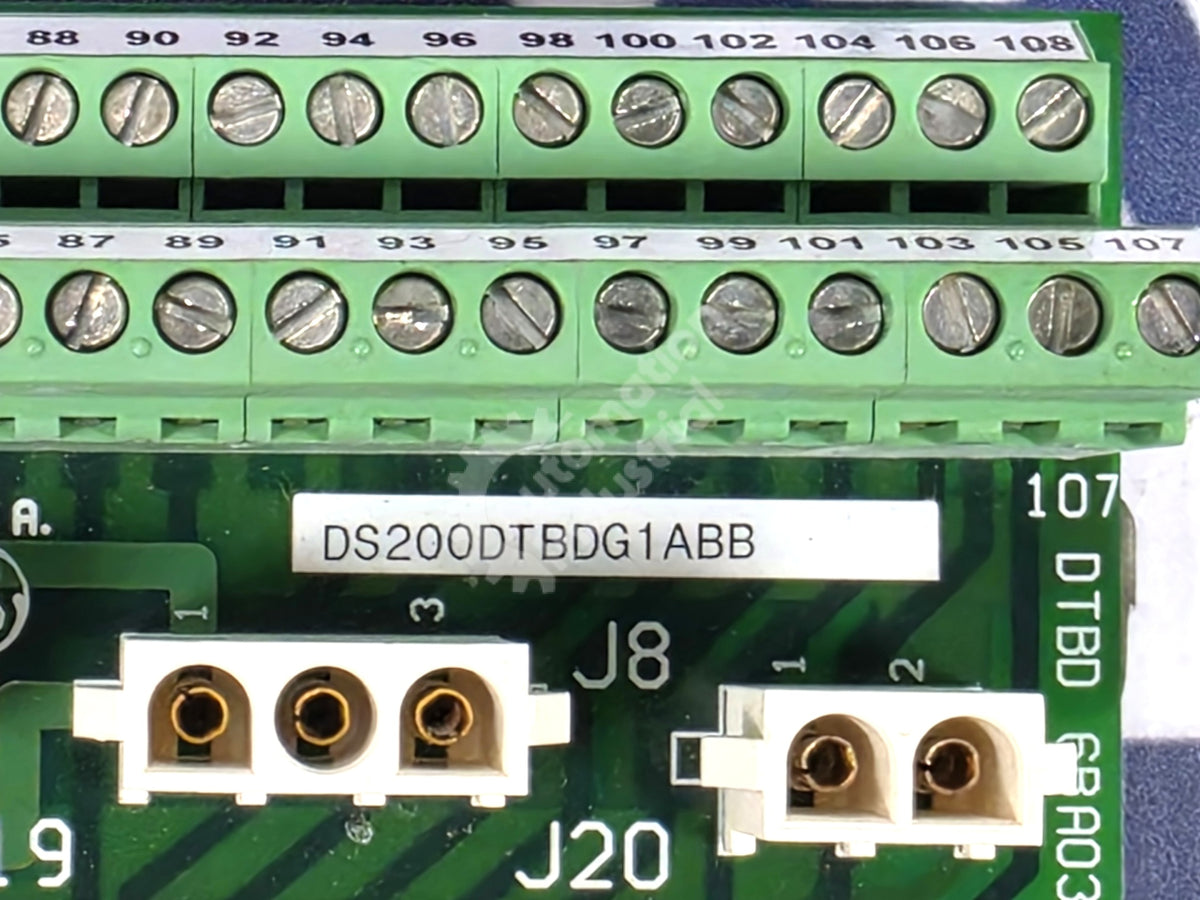

DS200DTBDG1A By General Electric DS200DTBDG1ABB Output Expansion Module NSFP |
Condition |
New Surplus Factory Package |
Technical Specifications | |
| Model Number | DS200DTBDG1A |
| Manufacturer | General Electric |
| Series | Mark V |
| Category | Expansion Terminal Boards |
| Version | Contact Output |
| Associated Relays | 30 |
| Supported Solenoids | ≤16 |
| Ignition Transformer Outputs | 2 |
| Connectors | 11 |
| Manual | GEH-6153 |
Frequently Asked Questions | |
| What are the hardware jumpers on the DS200DTBDG1A for? These enable the solenoid functionality for their associated contact outputs. | |
| What is the functional acronym in "DS200DTBDG1A"? "DTBD" is the functional acronym for this DS200DTBDG1A board. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The DS200DTBDG1A is one of the more flexible Mark V terminal boards in terms of the types of output it can support. This single board can support a mixture of standard relay, solenoid, and ignition transformer connections. -Automation Industrial Quality Assurance Manager |
|
