- Unit No: DS200FGPAG1A
- OEM: GE
- Product Line: Load Commutated Inverter
- Role: Gate Pulse Amplifier Board
- Input Power: 120Vrms
- Tolerance: ±20%
- Cell Voltage Channels: 12
- Gate Driver Circuits: 2
- Required Per Bridge: 3
- Fiber Optics: 1 Transmitter, 14 Receivers
- Series Manual: GEH-6373
- Part Manual: GEI-100223
-
What kind of SCR bridge can the DS200FGPAG1A work with?
- The DS200FGPAG1A is made for use with 3-phase SCR bridges.
-
Does the DS200FGPAG1A have undervoltage protection?
- Yes, undervoltage protection for the power supply is provided on the DS200FGPAG1A.
-
Where does the DS200FGPAG1A get its cell voltage information?
- This information comes from the FHVA boards in your system.
⭐⭐⭐⭐⭐ 5.0
The DS200FGPAG1A is multipurpose while still excelling in each of its roles within your LCI system. This board uses highly reliable fiber optic connectors, accepts a wider range of input voltage than most similar boards, and is capable of monitoring a large number of SCR channels. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
DS200FGPAG1A Mark V DS200 |
Description |

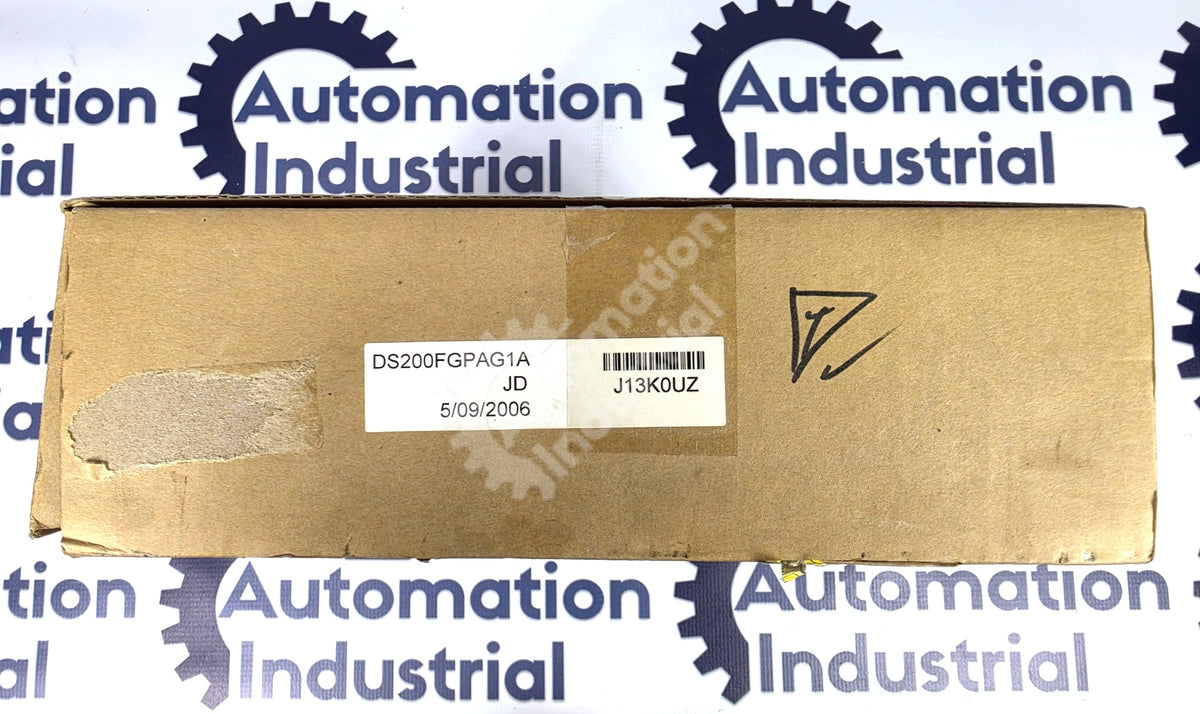

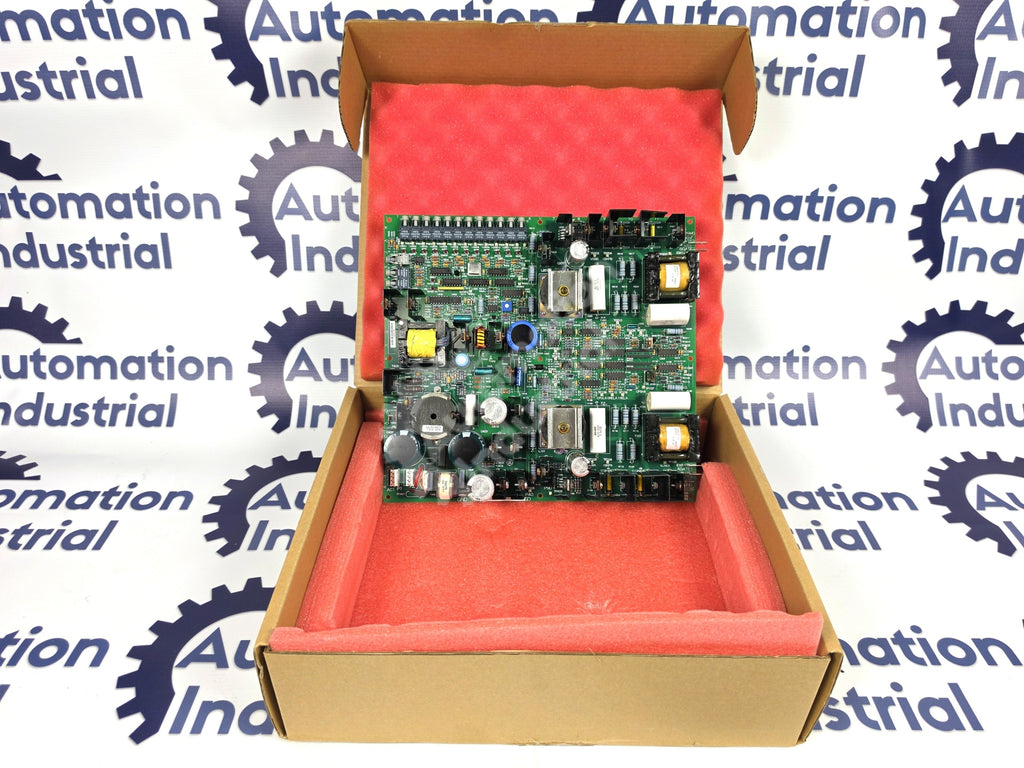

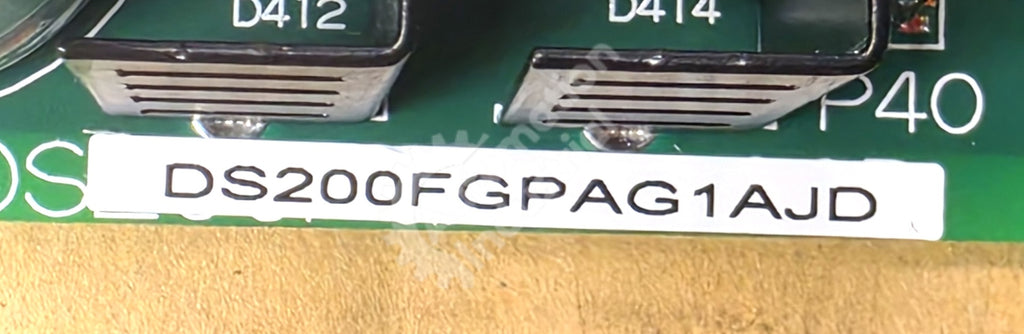

DS200FGPAG1A By General Electric DS200FGPAG1AJD Gate Pulse Amplifier Board NSFP |
Condition |
New Surplus Factory Package |
Technical Specifications | |
| Unit No | DS200FGPAG1A |
| OEM | GE |
| Product Line | Load Commutated Inverter |
| Role | Gate Pulse Amplifier Board |
| Input Power | 120Vrms |
| Tolerance | ±20% |
| Cell Voltage Channels | 12 |
| Gate Driver Circuits | 2 |
| Required Per Bridge | 3 |
| Fiber Optics | 1 Transmitter, 14 Receivers |
| Series Manual | GEH-6373 |
| Part Manual | GEI-100223 |
Frequently Asked Questions | |
| What kind of SCR bridge can the DS200FGPAG1A work with? The DS200FGPAG1A is made for use with 3-phase SCR bridges. | |
| Does the DS200FGPAG1A have undervoltage protection? Yes, undervoltage protection for the power supply is provided on the DS200FGPAG1A. | |
| Where does the DS200FGPAG1A get its cell voltage information? This information comes from the FHVA boards in your system. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The DS200FGPAG1A is multipurpose while still excelling in each of its roles within your LCI system. This board uses highly reliable fiber optic connectors, accepts a wider range of input voltage than most similar boards, and is capable of monitoring a large number of SCR channels. -Automation Industrial Quality Assurance Manager |
|
