- Model ID: EVB24-MFT
- Brand Name: Belimo
- Category: Actuators
- Actuator Type: Modulating
- Spring-Return: No
- Voltage Rating: 24VDC/AC
- Voltage Frequency: 50/60Hz
- Actuating Force: 2500N
- Stroke: 2"
- Operating Range: 2-10V, 4-20mA
- Power Source Type: Class 2 Supply
- Protection: IP54/NEMA 2
-
Does the EVB24-MFT support manual override?
- Yes, the EVB24-MFT uses a 5mm hex crank manual override.
-
What is the motor running time for the EVB24-MFT?
- The EVB24-MFT is rated for 90 seconds.
-
Is the EVB24-MFT overload-protected across the full stroke?
- Yes, this protection extends through the full stroke.
⭐⭐⭐⭐⭐ 5.0
The EVB24-MFT has a relatively high actuating force capacity, allowing it to work with many higher-powered applications. This actuator is also very electrically efficient despite this higher power, helping cut long-term costs compared to similar devices. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
EVB24-MFT |
Description |

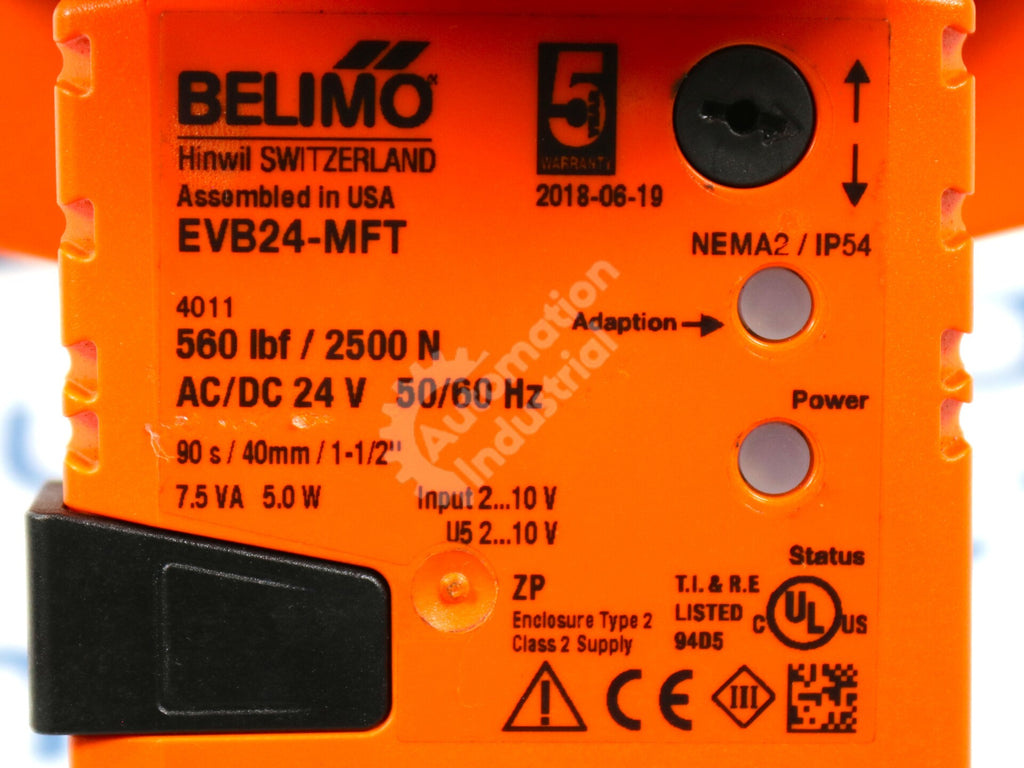

EVB24-MFT By Belimo 560lbf 24V AC/DC Globe Valve Actuator |
Condition |
Pre-Owned Cleaned and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Model ID | EVB24-MFT |
| Brand Name | Belimo |
| Category | Actuators |
| Actuator Type | Modulating |
| Spring-Return | No |
| Voltage Rating | 24VDC/AC |
| Voltage Frequency | 50/60Hz |
| Actuating Force | 2500N |
| Stroke | 2" |
| Operating Range | 2-10V, 4-20mA |
| Power Source Type | Class 2 Supply |
| Protection | IP54/NEMA 2 |
Frequently Asked Questions | |
| Does the EVB24-MFT support manual override? Yes, the EVB24-MFT uses a 5mm hex crank manual override. | |
| What is the motor running time for the EVB24-MFT? The EVB24-MFT is rated for 90 seconds. | |
| Is the EVB24-MFT overload-protected across the full stroke? Yes, this protection extends through the full stroke. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The EVB24-MFT has a relatively high actuating force capacity, allowing it to work with many higher-powered applications. This actuator is also very electrically efficient despite this higher power, helping cut long-term costs compared to similar devices. -Automation Industrial Quality Assurance Manager |
|
