- Model Code: F0-08ADH-2
- Produced By: Automation Direct
- Series Name: DL05/06
- Description: High-Resolution Analog Input Module
- Number of Channels: 8
- Input Range: 0-5VDC, 0-10VDC
- Channel Resolution: 16-Bit
- Sample Duration: 10.2ms
- Channel Update Rate: 81.6ms
- Filter: Low Pass, -3dB at 60Hz
- Maximum Continuous Overload: ±100V
- External Power Supply Voltage: 24VDC
-
Are the inputs on the F0-08ADH-2 single-ended?
- Yes, these inputs are single-ended.
-
What type of converter does the F0-08ADH-2 use?
- The F0-08ADH-2 uses a successive approximation type converter.
-
Does the F0-08ADH-2 require an external power supply?
- Yes, this is required to operate the F0-08ADH-2.
⭐⭐⭐⭐⭐ 5.0
The F0-08ADH-2 provides exceptional resolution and a respectable number of analog voltage inputs. If you need greater precision than a standard version of this module can offer, this is the option for you. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
F0-08ADH-2 F0 |
Description |

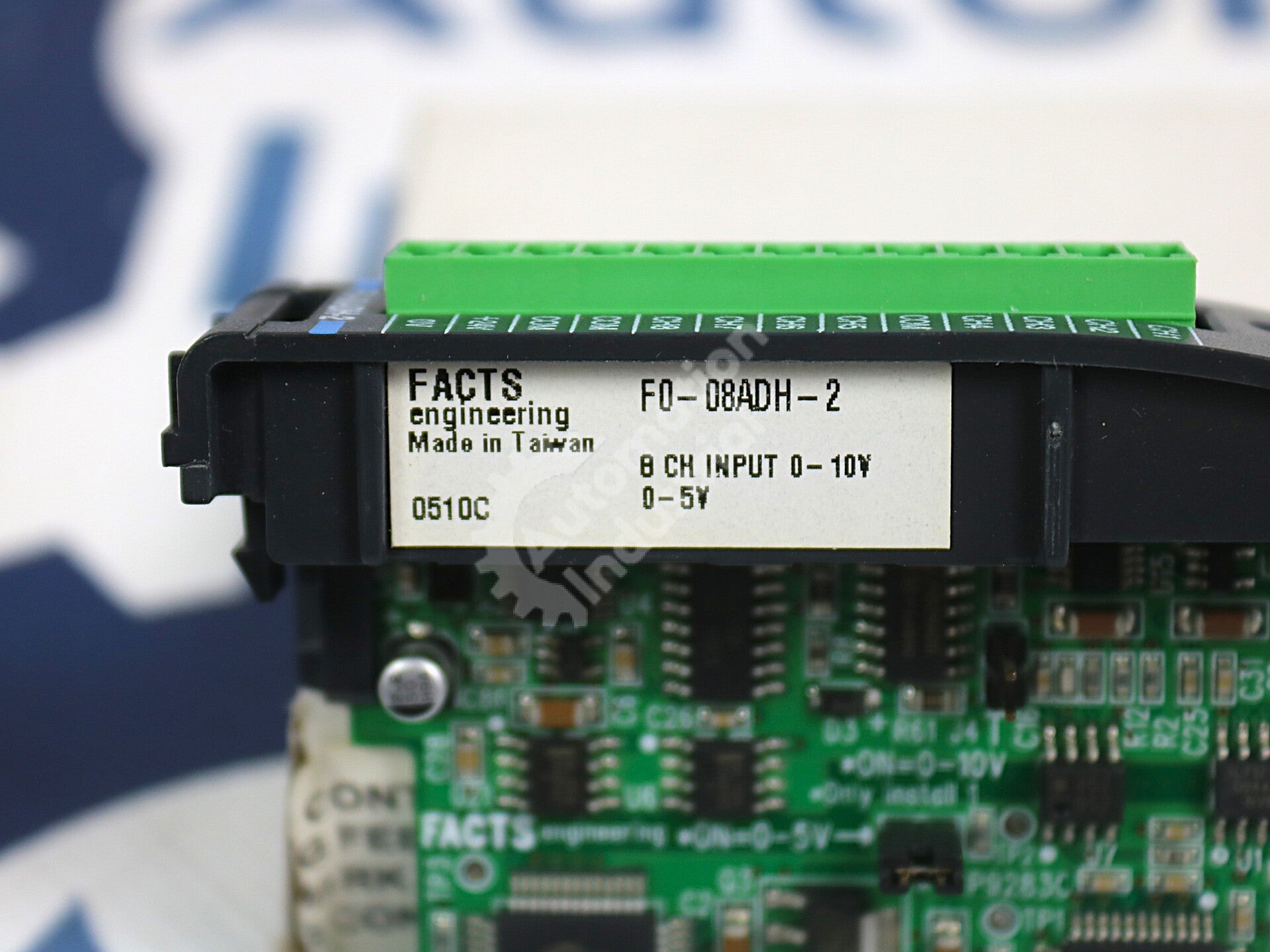

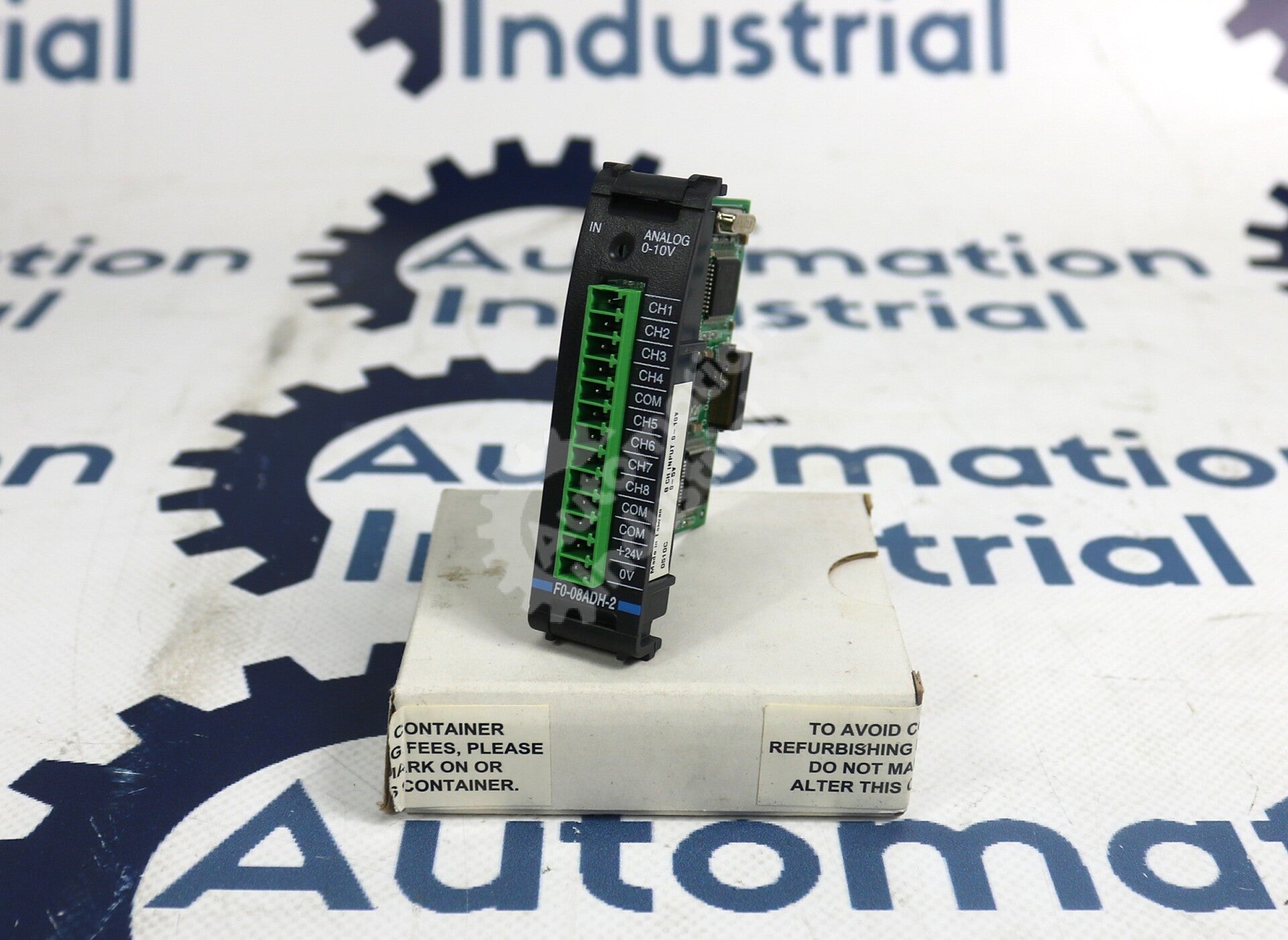

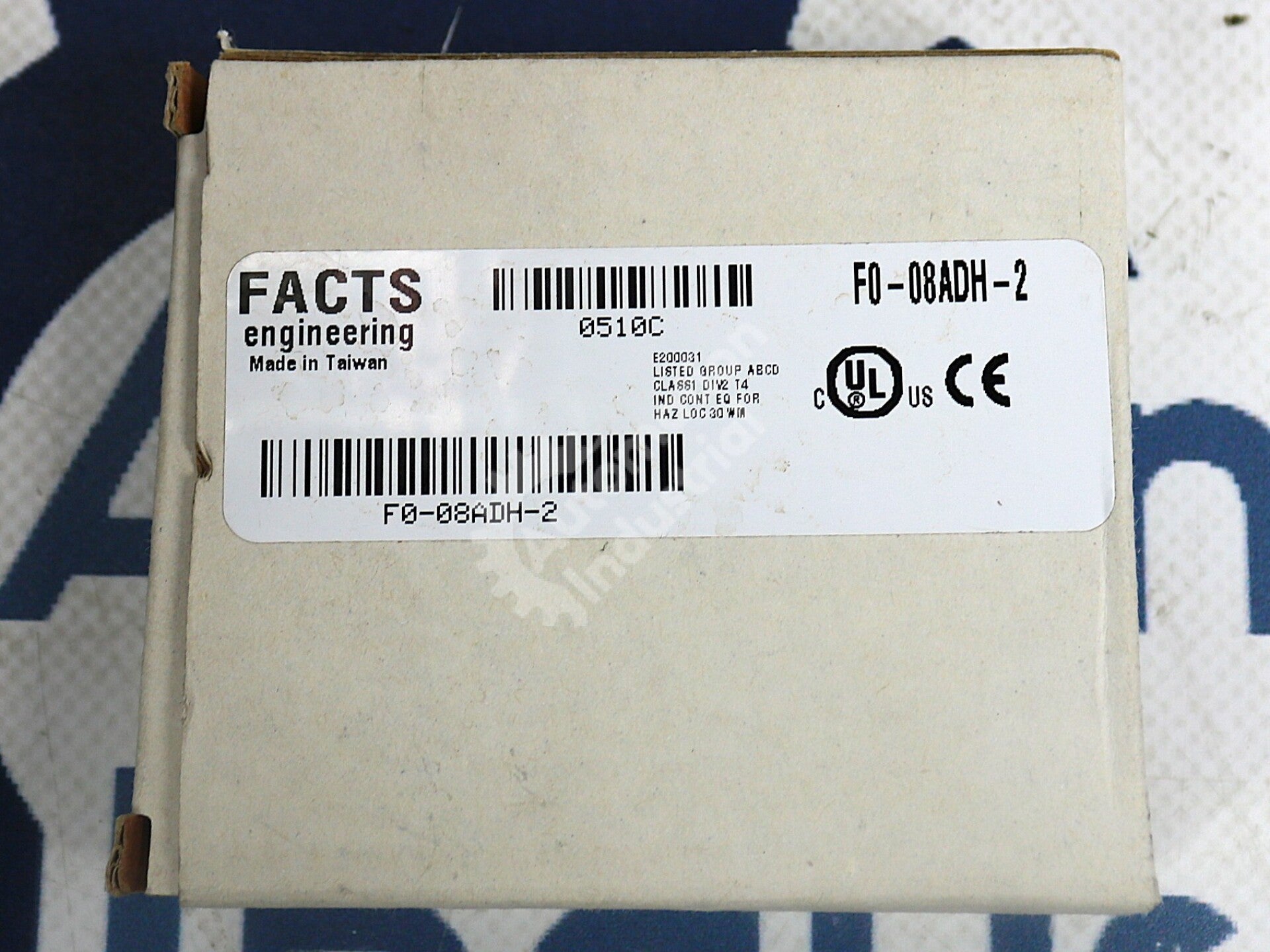

F0-08ADH-2 By Facts Engineering DL05/06 8-Channel Analog Input Module NSFP |
Condition |
New Surplus Factory Package With 1 Year Warranty. |
Technical Specifications | |
| Model Code | F0-08ADH-2 |
| Produced By | Automation Direct |
| Series Name | DL05/06 |
| Description | High-Resolution Analog Input Module |
| Number of Channels | 8 |
| Input Range | 0-5VDC, 0-10VDC |
| Channel Resolution | 16-Bit |
| Sample Duration | 10.2ms |
| Channel Update Rate | 81.6ms |
| Filter | Low Pass, -3dB at 60Hz |
| Maximum Continuous Overload | ±100V |
| External Power Supply Voltage | 24VDC |
Frequently Asked Questions | |
| Are the inputs on the F0-08ADH-2 single-ended? Yes, these inputs are single-ended. | |
| What type of converter does the F0-08ADH-2 use? The F0-08ADH-2 uses a successive approximation type converter. | |
| Does the F0-08ADH-2 require an external power supply? Yes, this is required to operate the F0-08ADH-2. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The F0-08ADH-2 provides exceptional resolution and a respectable number of analog voltage inputs. If you need greater precision than a standard version of this module can offer, this is the option for you. -Automation Industrial Quality Assurance Manager |
|
