- Model ID: F2-02DA-2
- Product Manufacturer: Automation Direct
- Part Series: DL205
- Role: Analog Voltage Output Module
- Channel Configuration: Dual-Channel
- Resolution: 12-Bits
- Output Type: Single Ended
- Output Range: 0-5V, 0-10V, ±5V, ±10V
- Commons: 1
- Load Impedance: ≥2000 Ohms
- Base Power: 40mA
- Terminal Type: Removable
-
How many digital output points are necessary when installing the F2-02DA-2?
- The F2-02DA-2 requires 16 (Y) digital output points for installation.
-
What is the scan rate like on the F2-02DA-2?
- The F2-02DA-2 can update up to both channels per scan.
-
Can the terminals on the F2-02DA-2 be replaced?
- Yes, just look for a D2-8IOCON to replace these terminals.
⭐⭐⭐⭐ 4.0
The F2-02DA-2 only has a couple of output channels, but they are both versatile and high-resolution. This module does require an external power supply, but it is otherwise simple to plug and play into your DL205 PLC system. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
F2-02DA-2 F2 |
Description |

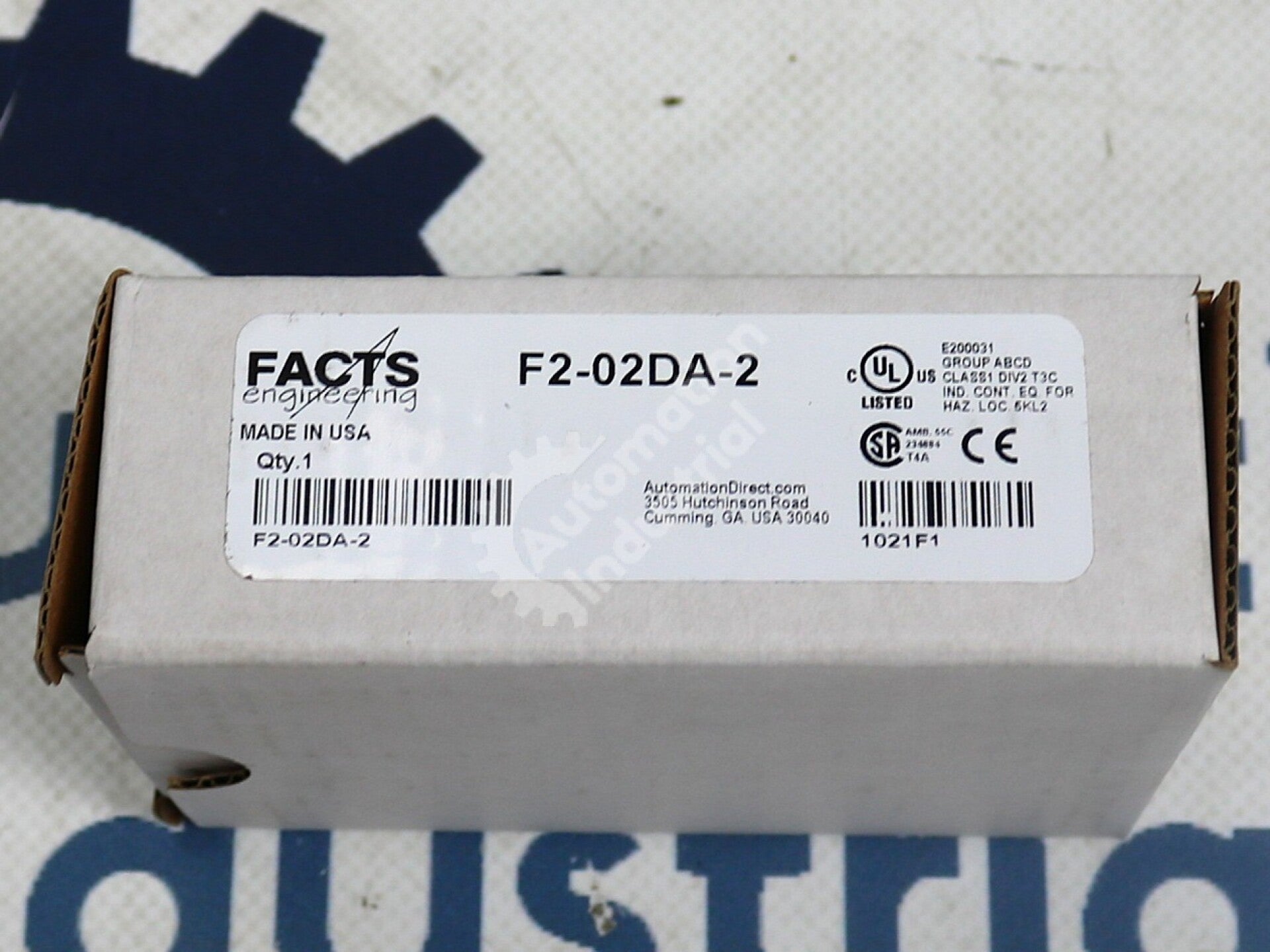

F2-02DA-2 By Facts Engineering DL205 Analog Output Module NSFP |
Condition |
New Surplus Factory Package With 1 Year Warranty. |
Technical Specifications | |
| Model ID | F2-02DA-2 |
| Product Manufacturer | Automation Direct |
| Part Series | DL205 |
| Role | Analog Voltage Output Module |
| Channel Configuration | Dual-Channel |
| Resolution | 12-Bits |
| Output Type | Single Ended |
| Output Range | 0-5V, 0-10V, ±5V, ±10V |
| Commons | 1 |
| Load Impedance | ≥2000 Ohms |
| Base Power | 40mA |
| Terminal Type | Removable |
Frequently Asked Questions | |
| How many digital output points are necessary when installing the F2-02DA-2? The F2-02DA-2 requires 16 (Y) digital output points for installation. | |
| What is the scan rate like on the F2-02DA-2? The F2-02DA-2 can update up to both channels per scan. | |
| Can the terminals on the F2-02DA-2 be replaced? Yes, just look for a D2-8IOCON to replace these terminals. | |
Internal Review | |
|
⭐⭐⭐⭐
4.0
The F2-02DA-2 only has a couple of output channels, but they are both versatile and high-resolution. This module does require an external power supply, but it is otherwise simple to plug and play into your DL205 PLC system. -Automation Industrial Quality Assurance Manager |
|
