- Part Name: F2-04AD-2
- Manufactured By: Automation Direct
- Family ID: DirectLogic 205
- Designation: Analog Input Module
- Voltage/Current: Voltage
- Input Range: 0-5V, 0-10V, ±5V, ±10V
- Inputs: 4
- Digital Input Points Required: 16 (X)
- Filtering: Active Low-Pass
- Input Impedance: >20MΩ
- Operating Temperature: 0-60°C
- Humidity: 5-95% Noncondensing
-
What module was replaced by the F2-04AD-2?
- The F2-04AD-2 was designed to replace the F2-04AD-2L.
-
What kind of power supply does the F2-04AD-2 require?
- The F2-04AD-2 requires either a 12 or 24VDC power supply.
-
How many channels can be updated per scan on the F2-04AD-2?
- This is dependent on the CPU used, but this module supports up to a maximum of 4 channels per scan.
⭐⭐⭐⭐⭐ 5.0
The F2-04AD-2 is a direct upgrade over the older model of this analog voltage input module in the DL205 line. The primary change between this version and the original is that this model is 18 times more efficient when it comes to power draw from the external supply. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
F2-04AD-2 F2 |
Description |

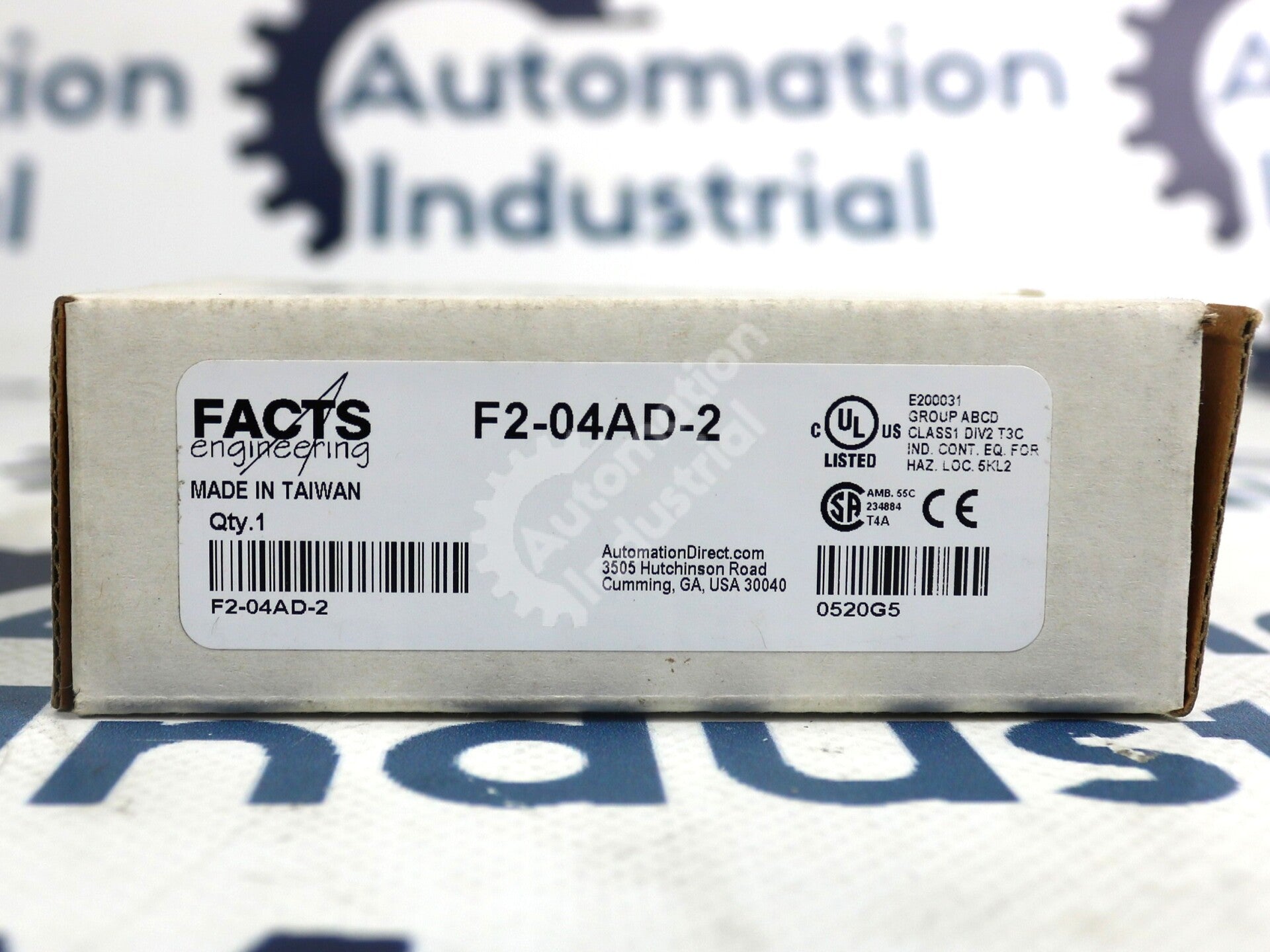

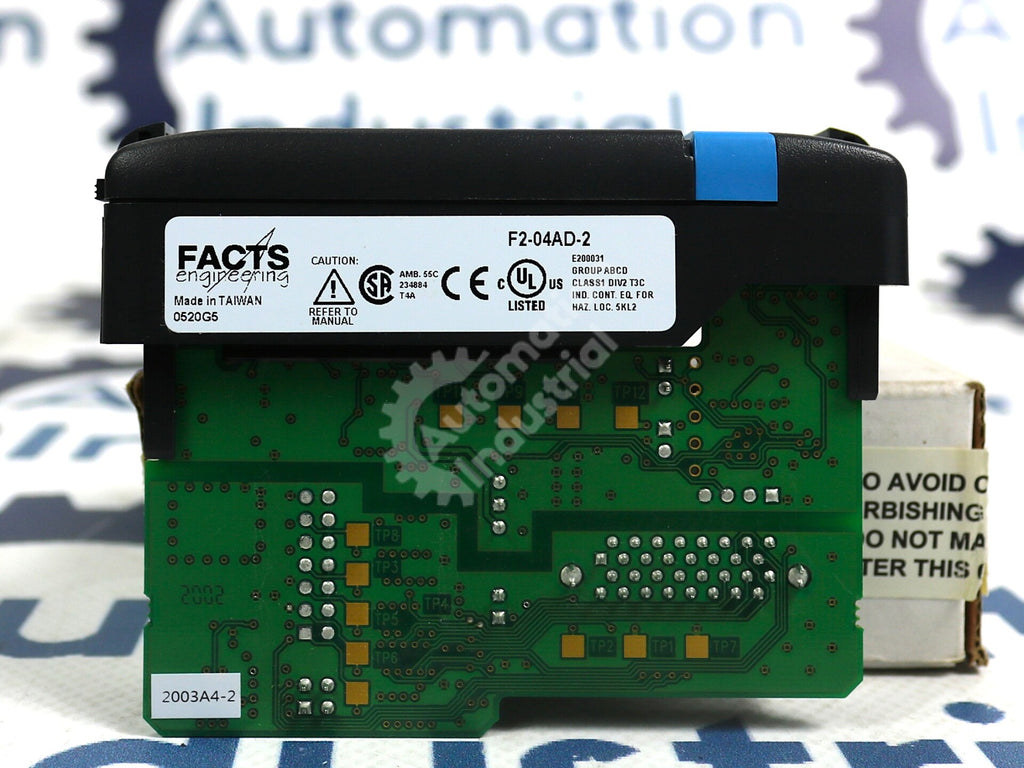

F2-04AD-2 By Facts Engineering DL205 Analog Input Module NSFP |
Condition |
New Surplus Factory Package With 1 Year Warranty. |
Technical Specifications | |
| Part Name | F2-04AD-2 |
| Manufactured By | Automation Direct |
| Family ID | DirectLogic 205 |
| Designation | Analog Input Module |
| Voltage/Current | Voltage |
| Input Range | 0-5V, 0-10V, ±5V, ±10V |
| Inputs | 4 |
| Digital Input Points Required | 16 (X) |
| Filtering | Active Low-Pass |
| Input Impedance | >20MΩ |
| Operating Temperature | 0-60°C |
| Humidity | 5-95% Noncondensing |
Frequently Asked Questions | |
| What module was replaced by the F2-04AD-2? The F2-04AD-2 was designed to replace the F2-04AD-2L. | |
| What kind of power supply does the F2-04AD-2 require? The F2-04AD-2 requires either a 12 or 24VDC power supply. | |
| How many channels can be updated per scan on the F2-04AD-2? This is dependent on the CPU used, but this module supports up to a maximum of 4 channels per scan. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The F2-04AD-2 is a direct upgrade over the older model of this analog voltage input module in the DL205 line. The primary change between this version and the original is that this model is 18 times more efficient when it comes to power draw from the external supply. -Automation Industrial Quality Assurance Manager |
|
