- Unit Name: F35-3KB
- Model Manufacturer: GE
- Product Line: Universal Relay
- Part Type: Feeder Protection Relay
- Relay Family: F35
- Control Power: 24-48VDC
- Undervoltage Protection: Phase, Auxiliary
- Programmable Curves: Yes
- Breaker Failure Protection: Logic
- IOC Protection: Phase, Ground, Neutral, Sensitive Ground
- TOC Protection: Phase, Ground, Neutral, Sensitive Ground, Voltage Restrained
- Overvoltage Protection: Neutral, Auxiliary
-
What software is associated with the F35-3KB?
- The F35-3KB is made for use with EnerVista Launchpad.
-
Is there a more advanced version of the F35-3KB?
- Yes, F60 relays are the more advanced and costly option.
-
Is the F35-3KB made for primary or backup protection?
- The F35-3KB is designed for primary protection.
⭐⭐⭐⭐⭐ 5.0
The F35-3KB is one of the few low-voltage DC options of UR relay. Apart from this distinction, the F35-3KB is a fairly standard feeder protection relay which is able to work with common feeder groupings. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
F35-3KB UR Series Universal Relays |
Description |

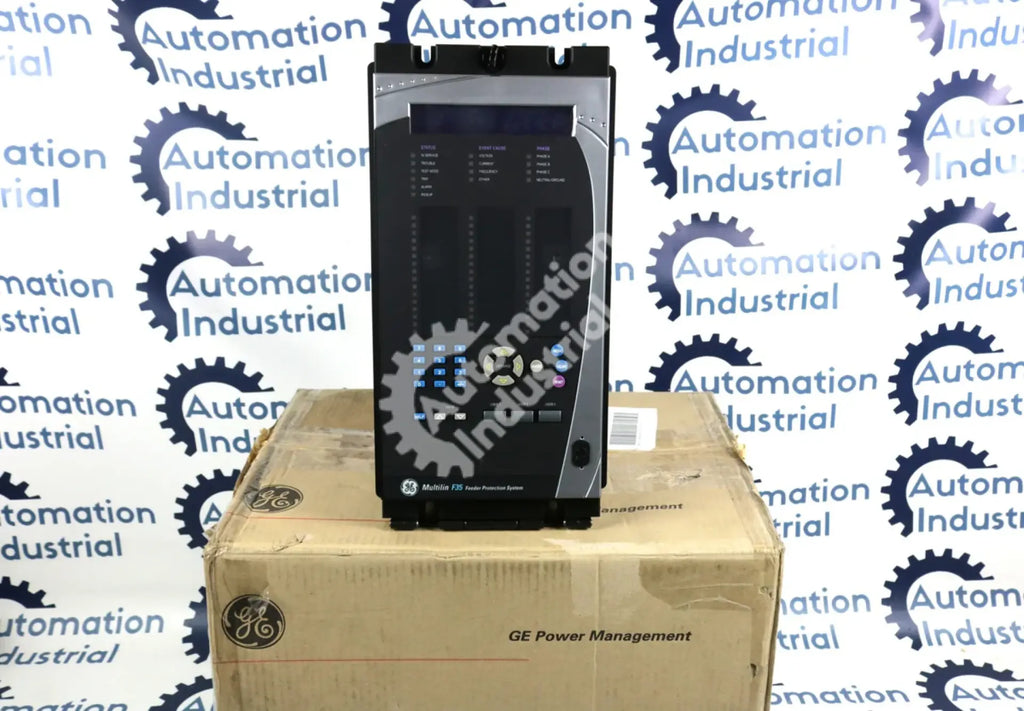

F35-3KB By GE Multilin F35 Feeder Protection System NSFP (No Modules) |
Condition |

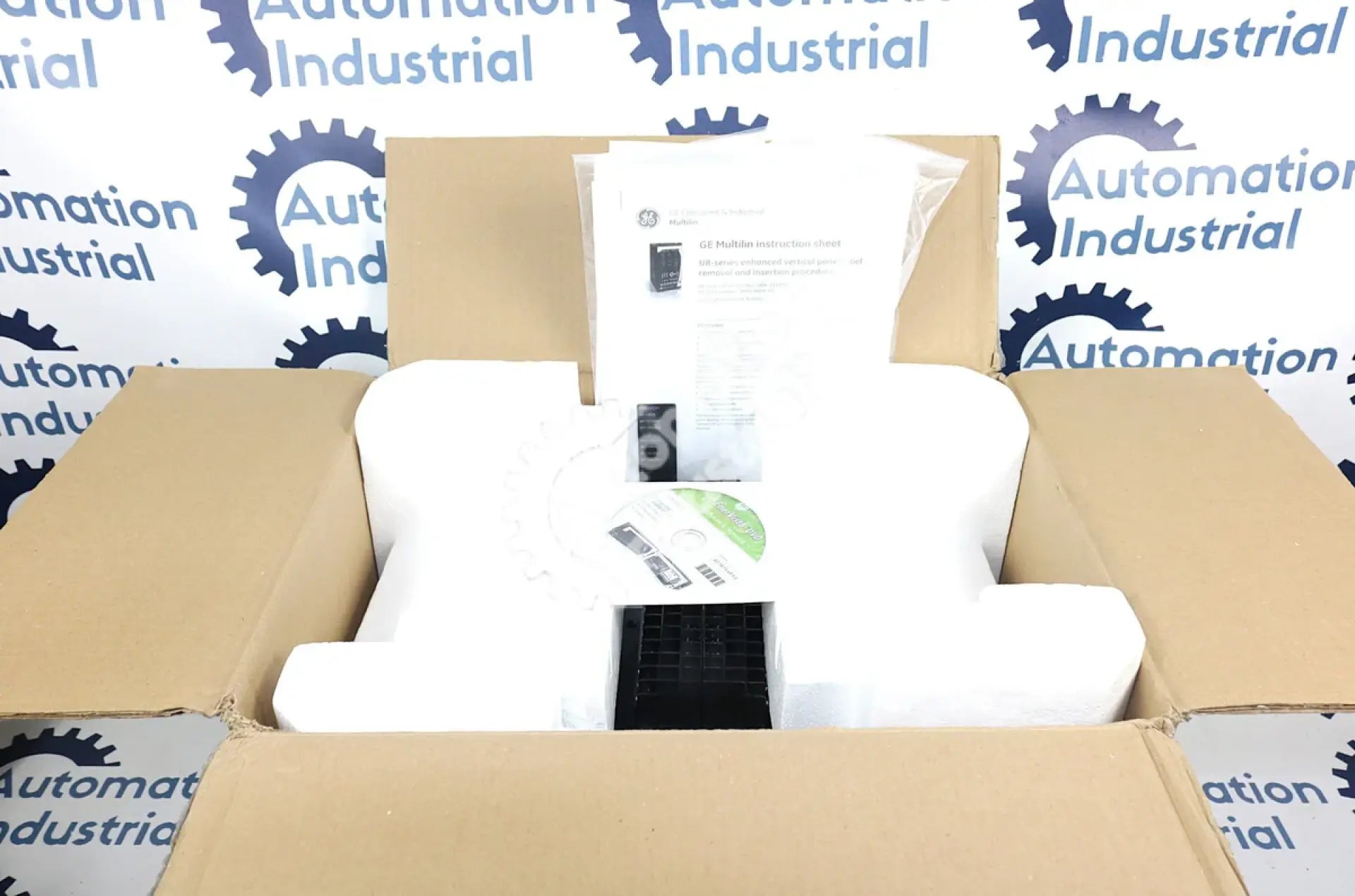

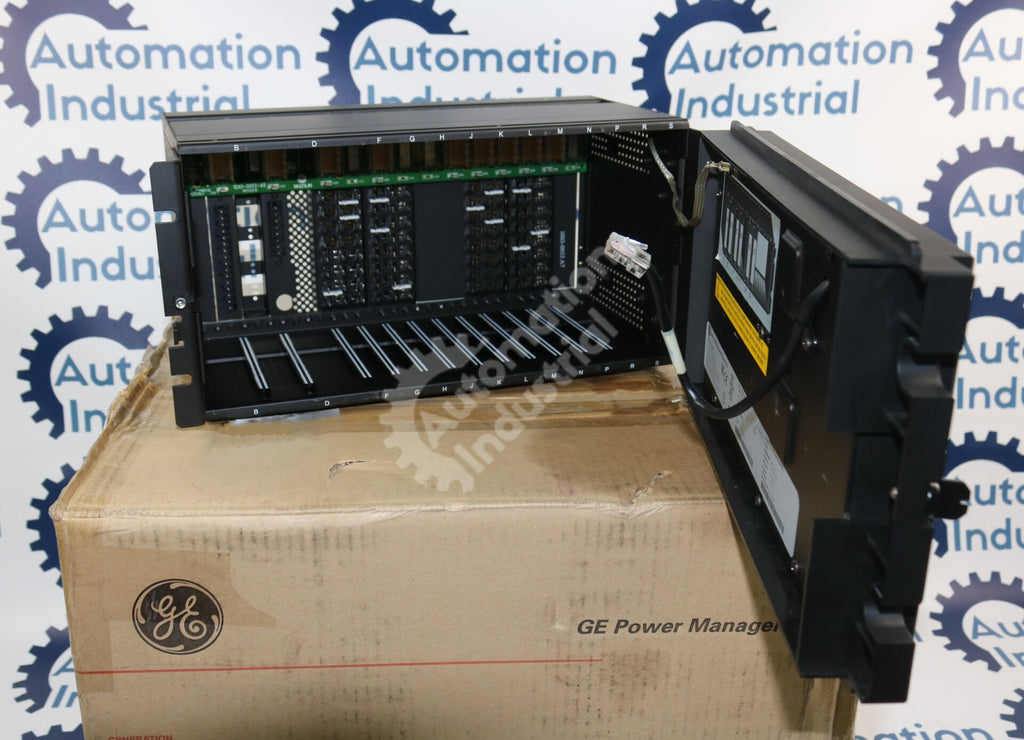

New Surplus Factory Package With 1 Year Warranty. No Internal Modules - Rack and Operator Interface Only. |
Technical Specifications | |
| Unit Name | F35-3KB |
| Model Manufacturer | GE |
| Product Line | Universal Relay |
| Part Type | Feeder Protection Relay |
| Relay Family | F35 |
| Control Power | 24-48VDC |
| Undervoltage Protection | Phase, Auxiliary |
| Programmable Curves | Yes |
| Breaker Failure Protection | Logic |
| IOC Protection | Phase, Ground, Neutral, Sensitive Ground |
| TOC Protection | Phase, Ground, Neutral, Sensitive Ground, Voltage Restrained |
| Overvoltage Protection | Neutral, Auxiliary |
Frequently Asked Questions | |
| What software is associated with the F35-3KB? The F35-3KB is made for use with EnerVista Launchpad. | |
| Is there a more advanced version of the F35-3KB? Yes, F60 relays are the more advanced and costly option. | |
| Is the F35-3KB made for primary or backup protection? The F35-3KB is designed for primary protection. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The F35-3KB is one of the few low-voltage DC options of UR relay. Apart from this distinction, the F35-3KB is a fairly standard feeder protection relay which is able to work with common feeder groupings. -Automation Industrial Quality Assurance Manager |
|
