- Model ID: F4-08THM
- Original Equipment Manufacturer: Automation Direct
- Series Name: DL405
- Module Type: Temperature Input
- Version: Thermocouple
- Channels: 8
- Thermocouple Types: J, E, K, R, S, T, B, N, C
- Common Mode Range: ±5VDC
- Input Impedance: 1MΩ
- Fault Protection: ±50VDC
- Automatic Cold Junction Compensation: Yes
- Power Budget: 110mA
-
How many digital input points are required to use the F4-08THM?
- The F4-08THM requires 32 input points.
-
What is the typical warm up time for the F4-08THM?
- The F4-08THM has a warm up time of 30 minutes.
-
Can the channels on the F4-08THM also be used for voltage input?
- Yes, this is possible.
⭐⭐⭐⭐⭐ 5.0
The F4-08THM supports input for most of the common thermocouple types used in industrial environments. These inputs are highly accurate, fault-protected, and removable from the module for easy maintenance. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
F4-08THM f4 |
Description |

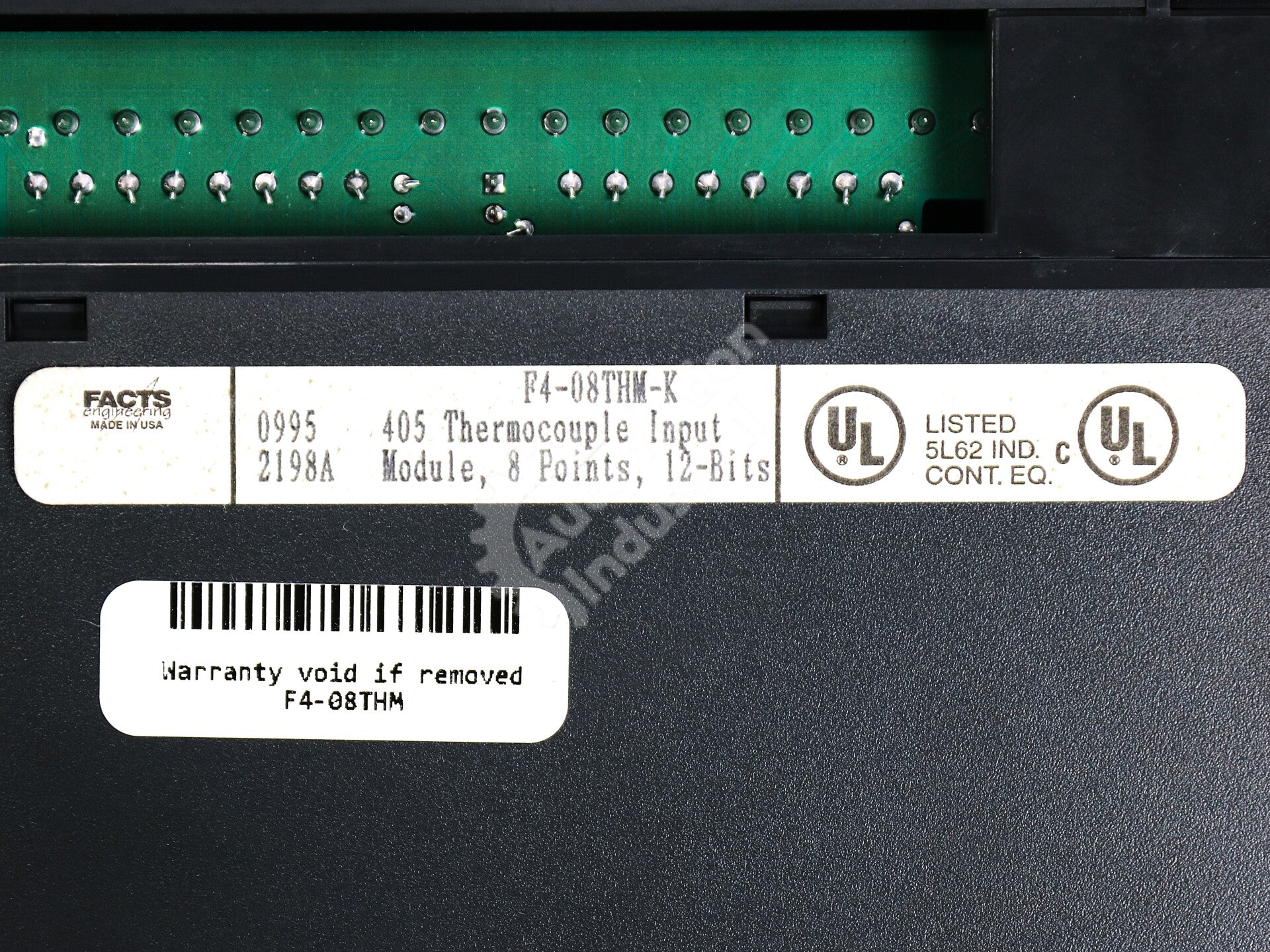

F4-08THM By Facts Engineering F4-08THM-K Thermocouple Temperature Input Module |
Condition |
Pre-Owned Cleaned and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Model ID | F4-08THM |
| Original Equipment Manufacturer | Automation Direct |
| Series Name | DL405 |
| Module Type | Temperature Input |
| Version | Thermocouple |
| Channels | 8 |
| Thermocouple Types | J, E, K, R, S, T, B, N, C |
| Common Mode Range | ±5VDC |
| Input Impedance | 1MΩ |
| Fault Protection | ±50VDC |
| Automatic Cold Junction Compensation | Yes |
| Power Budget | 110mA |
Frequently Asked Questions | |
| How many digital input points are required to use the F4-08THM? The F4-08THM requires 32 input points. | |
| What is the typical warm up time for the F4-08THM? The F4-08THM has a warm up time of 30 minutes. | |
| Can the channels on the F4-08THM also be used for voltage input? Yes, this is possible. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The F4-08THM supports input for most of the common thermocouple types used in industrial environments. These inputs are highly accurate, fault-protected, and removable from the module for easy maintenance. -Automation Industrial Quality Assurance Manager |
|
