- Model ID: FL-CC0814-2M
- Original Equipment Manufacturer: Ricoh
- Part Type: Lens
- Mounting: C-Mount
- Iris: Manual
- Iris Range: 1.4-16
- Focal Length: 8mm
- Aperture Ratio: 1 to 1.4 Max
- Back Focal Length: 13.1mm
- Minimum Object Distance: 0.1m
- Dimensions: 33.5 x 28.2mm
- Weight: 63g
-
What formats are supported on the FL-CC0814-2M?
- The FL-CC0814-2M supports 2/3, 1/2, 1/3, and 1/1.8" formats.
-
What is the horizontal viewing angle of the FL-CC0814-2M?
- In 1/4" format, this is 24.6°; in 2/3" this goes up to 56.3°.
-
Does the FL-CC0814-2M have lock screws?
- Yes, this lens has both iris and focus lock screws.
⭐⭐⭐⭐⭐ 5.0
As a C-mount lens, the FL-CC0814-2M is compatible with a huge range of different vision systems. This lens also supports a number of different formats and has a manually adjustable iris to help configure the image focus to your exact setup. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
FL-CC0814-2M |
Description |

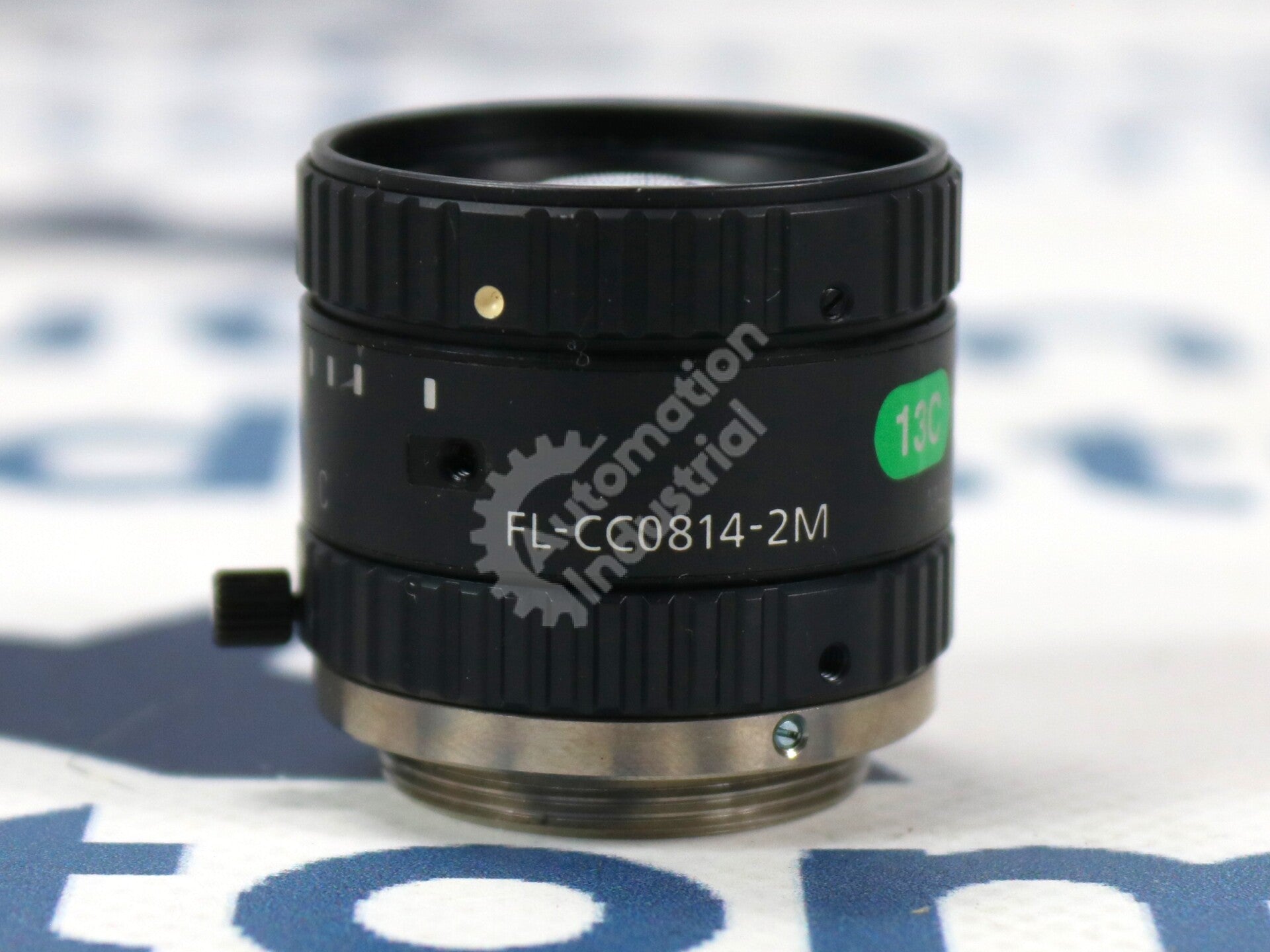

FL-CC0814-2M By Ricoh 8mm 2MP f/1.4 Manual Iris Lens |
Condition |
Pre-Owned Cleaned and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Model ID | FL-CC0814-2M |
| Original Equipment Manufacturer | Ricoh |
| Part Type | Lens |
| Mounting | C-Mount |
| Iris | Manual |
| Iris Range | 1.4-16 |
| Focal Length | 8mm |
| Aperture Ratio | 1 to 1.4 Max |
| Back Focal Length | 13.1mm |
| Minimum Object Distance | 0.1m |
| Dimensions | 33.5 x 28.2mm |
| Weight | 63g |
Frequently Asked Questions | |
| What formats are supported on the FL-CC0814-2M? The FL-CC0814-2M supports 2/3, 1/2, 1/3, and 1/1.8" formats. | |
| What is the horizontal viewing angle of the FL-CC0814-2M? In 1/4" format, this is 24.6°; in 2/3" this goes up to 56.3°. | |
| Does the FL-CC0814-2M have lock screws? Yes, this lens has both iris and focus lock screws. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
As a C-mount lens, the FL-CC0814-2M is compatible with a huge range of different vision systems. This lens also supports a number of different formats and has a manually adjustable iris to help configure the image focus to your exact setup. -Automation Industrial Quality Assurance Manager |
|
