- Model No: FN-DA02AH41
- Product Manufacturer: Pro-face
- Original Series: Flex Network
- Role: D/A Conversion Unit
- Output Resolution: 12-Bit
- Output Channels: 2
- Conversion Time: ≤2ms
- Conversion Timing: Simultaneous
- Accuracy: ±1%/FS
- Nominal Voltage Rating: 24VDC
- CE Marked: Yes
- UL/cUL Listed: Yes
-
What analog output signals are supported on the FN-DA02AH41?
- The FN-DA02AH41 supports 0-10V, 0-20mA, and 4-20mA output signals.
-
How do you set the voltage/current switchover on the FN-DA02AH41?
- This is based on where the terminal connections are on the FN-DA02AH41.
-
What kind of insulation does the FN-DA02AH41 use?
- The FN-DA02AH41 uses photocoupler insulation.
⭐⭐⭐⭐⭐ 5.0
The FN-DA02AH41 is particularly compact compared to the amount of functionality it provides. This module manages to fit two identical digital-to-analog channels with adjustable output, insulation, and fast conversion despite its smaller size. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
FN-DA02AH41 Flex Network Series |
Description |

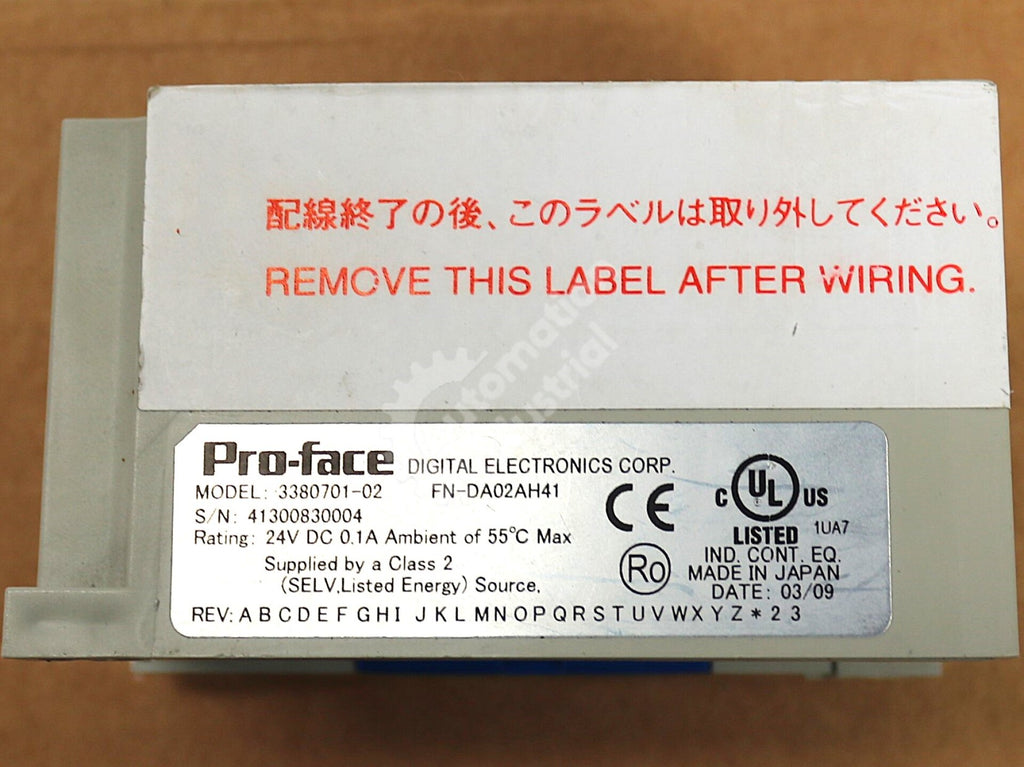

FN-DA02AH41 By Proface Xycom 24VDC 2-Channel Analog Output Module NSNB |
Condition |
New Surplus Open Box With 1 Year Warranty. |
Technical Specifications | |
| Model No | FN-DA02AH41 |
| Product Manufacturer | Pro-face |
| Original Series | Flex Network |
| Role | D/A Conversion Unit |
| Output Resolution | 12-Bit |
| Output Channels | 2 |
| Conversion Time | ≤2ms |
| Conversion Timing | Simultaneous |
| Accuracy | ±1%/FS |
| Nominal Voltage Rating | 24VDC |
| CE Marked | Yes |
| UL/cUL Listed | Yes |
Frequently Asked Questions | |
| What analog output signals are supported on the FN-DA02AH41? The FN-DA02AH41 supports 0-10V, 0-20mA, and 4-20mA output signals. | |
| How do you set the voltage/current switchover on the FN-DA02AH41? This is based on where the terminal connections are on the FN-DA02AH41. | |
| What kind of insulation does the FN-DA02AH41 use? The FN-DA02AH41 uses photocoupler insulation. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The FN-DA02AH41 is particularly compact compared to the amount of functionality it provides. This module manages to fit two identical digital-to-analog channels with adjustable output, insulation, and fast conversion despite its smaller size. -Automation Industrial Quality Assurance Manager |
|
