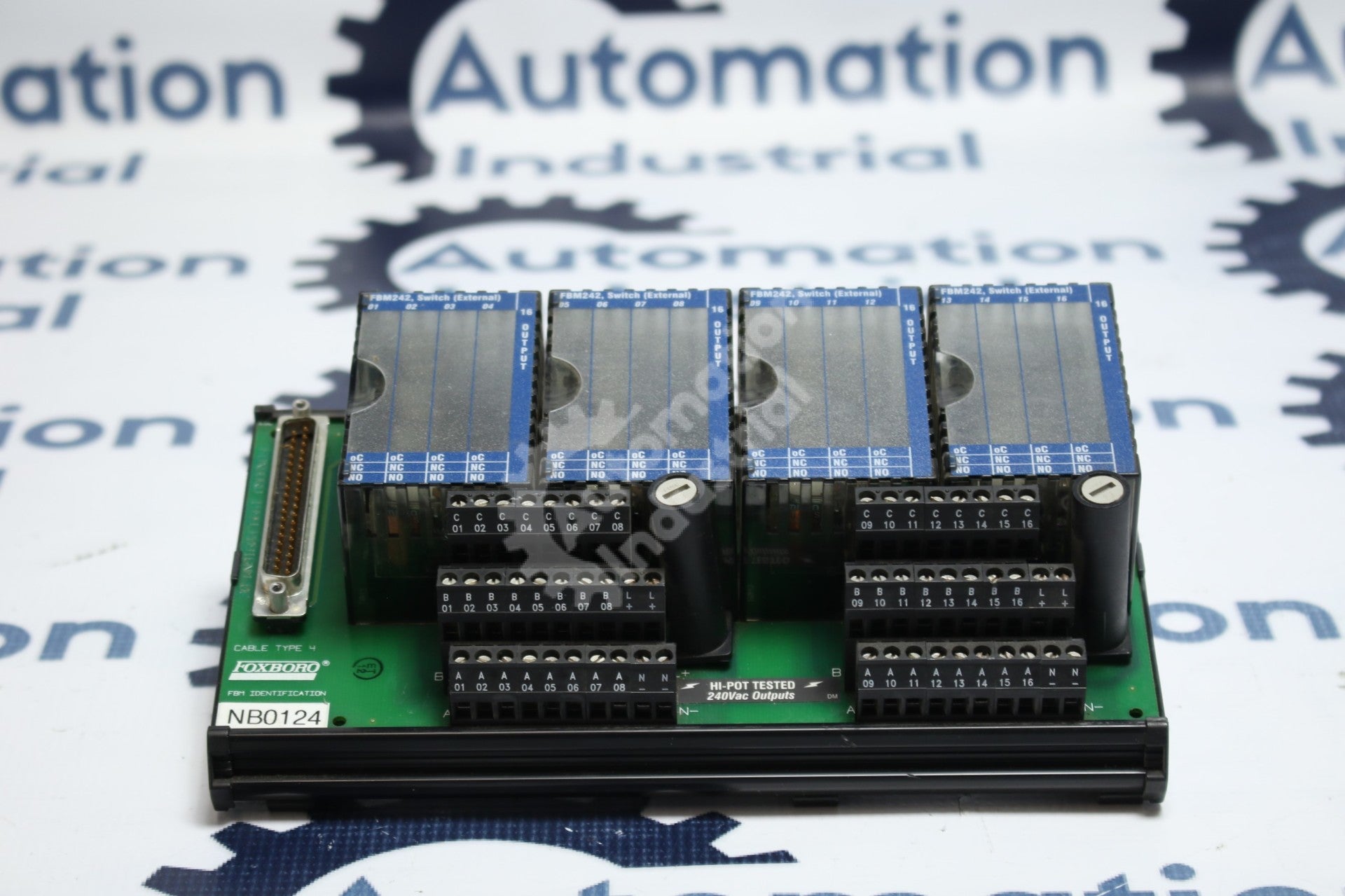

- Part Name: P0916JZ
- Made By: Foxboro
- Product Family: I/A Series
- Unit Description: Termination Assembly (TA)
- Output Channels: 16
- Output Type: Switch, Form C Relay
- Relay Type: SPDT
- Current Limit: 12A
- Isolation: Group
- Groups: 2
- Material: PVC
- Related Manual: PSS 21H-2Z42 B4
-
How many outputs are in each group for the group isolation of the P0916JZ?
- Each group consists of 8 output channels.
-
Can the P0916JZ be used in hazardous locations?
- No, the P0916JZ is only rated for use in ordinary locations.
-
How big is the P0916JZ?
- The P0916JZ is approximately 80mm high, 216mm wide, and 125mm deep.
⭐⭐⭐⭐⭐ 5.0
The P0916JZ is one of the better-protected versions of TA for the FBM242 thanks to the current limiting and group isolation support. These features are extremely helpful for keeping your outputs running safely and smoothly. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
P0916JZ I/A Series |
Description |
Foxboro P0916JZ P0916NM-0C Compression Term Assembly |
Condition |
Pre-Owned Clean and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Part Name | P0916JZ |
| Made By | Foxboro |
| Product Family | I/A Series |
| Unit Description | Termination Assembly (TA) |
| Output Channels | 16 |
| Output Type | Switch, Form C Relay |
| Relay Type | SPDT |
| Current Limit | 12A |
| Isolation | Group |
| Groups | 2 |
| Material | PVC |
| Related Manual | PSS 21H-2Z42 B4 |
Frequently Asked Questions | |
| How many outputs are in each group for the group isolation of the P0916JZ? Each group consists of 8 output channels. | |
| Can the P0916JZ be used in hazardous locations? No, the P0916JZ is only rated for use in ordinary locations. | |
| How big is the P0916JZ? The P0916JZ is approximately 80mm high, 216mm wide, and 125mm deep. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The P0916JZ is one of the better-protected versions of TA for the FBM242 thanks to the current limiting and group isolation support. These features are extremely helpful for keeping your outputs running safely and smoothly. -Automation Industrial Quality Assurance Manager |
|
