- Model ID: P0916NG
- Part Manufacturer: Foxboro
- Series Name: I/A
- Role: Termination Assembly
- Supported Inputs: None
- Supported Outputs: 16
- Output Type: Switch
- Resistive Load Ratings: 30VDC @5A or 125VDC @600mA
- Inductive Load Ratings: 125VDC @250mA
- Loop Ratings: 120VAC @5A, 240VAC @5A
- Source Type: External
- Termination: Compression Screw
-
Where can I find the manual for the P0916NG?
- The P0916NG has a few manuals still available online.
-
Is the P0916NG a PVC or PA type model?
- The P0916NG is a polyvinyl chloride (PVC) model of TA.
-
What is the temperature tolerance for the P0916NG?
- The PVC of the P0916NG can handle temperatures between -20° and 50°C.
⭐⭐⭐⭐ 4.0

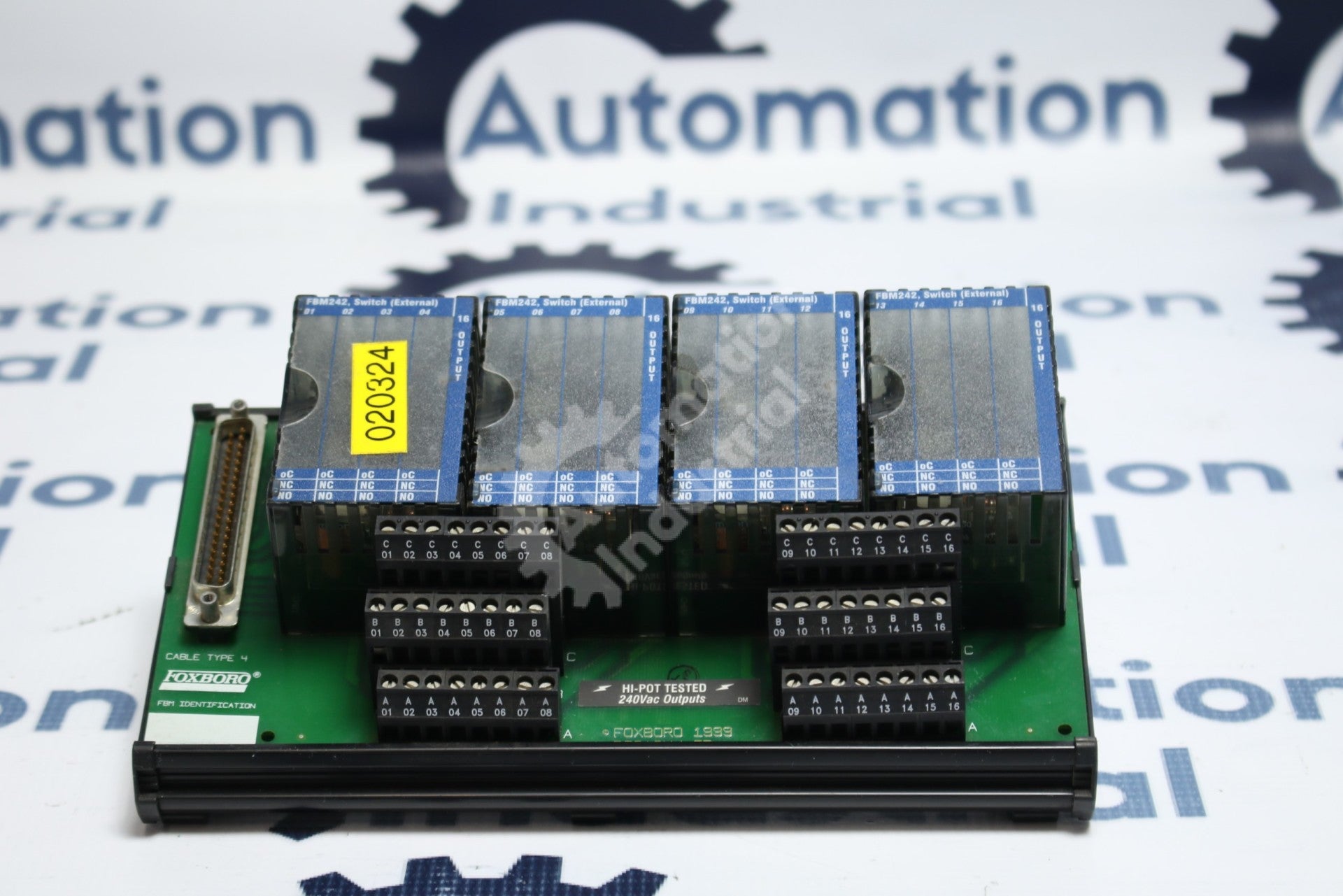

The P0916NG is one of the Form C relay output models of termination assembly for the FBM242. This basic version does not include the optional current limiting, group isolation support, or LED indicators. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
P0916NG I/A Series |
Description |
Foxboro P0916NG P0916NJ-0B Termination Assembly 2 Tier Compression |
Condition |
Pre-Owned Clean and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Model ID | P0916NG |
| Part Manufacturer | Foxboro |
| Series Name | I/A |
| Role | Termination Assembly |
| Supported Inputs | None |
| Supported Outputs | 16 |
| Output Type | Switch |
| Resistive Load Ratings | 30VDC @5A or 125VDC @600mA |
| Inductive Load Ratings | 125VDC @250mA |
| Loop Ratings | 120VAC @5A, 240VAC @5A |
| Source Type | External |
| Termination | Compression Screw |
Frequently Asked Questions | |
| Where can I find the manual for the P0916NG? The P0916NG has a few manuals still available online. | |
| Is the P0916NG a PVC or PA type model? The P0916NG is a polyvinyl chloride (PVC) model of TA. | |
| What is the temperature tolerance for the P0916NG? The PVC of the P0916NG can handle temperatures between -20° and 50°C. | |
Internal Review | |
|
⭐⭐⭐⭐
4.0
The P0916NG is one of the Form C relay output models of termination assembly for the FBM242. This basic version does not include the optional current limiting, group isolation support, or LED indicators. -Automation Industrial Quality Assurance Manager |
|
