- Product ID: FR8301AMSTR
- Original Manufacturer: Pelco
- Part Family: Fiber Transmitters/Receivers
- Version: Receiver
- Video Type: Single Channel, Digitally Encoded
- Multimode: Yes
- Connector: ST
- Transmission Distance: ≤2km
- Wavelength: 850nm
- Optical Power Budget: 20dB
- Laser Class 1 Limit: <0.78mW
- Series Manual: C1679M
-
What transmitters are compatible with the FR8301AMSTR?
- The FR8301AMSTR can be used with the FT8301AMSTR, FT8301AMST, and FT8301MST transmitters.
-
What kind of power supplies can the FR8301AMSTR use?
- The FR8301AMSTR is compatible with 12VDC and 24VAC type supplies.
-
What is the maximum humidity level the FR8301AMSTR can operate in?
- The FR8301AMSTR can operate at levels up to 95%; beyond this, you will need a conformal coated model.
⭐⭐⭐⭐⭐ 5.0
The FR8301AMSTR is a great model of this fiber receiver for use over longer distances. This variant is capable of receiving transmissions up to 2 kilometers away with great reliability. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
FR8301AMSTR |
Description |

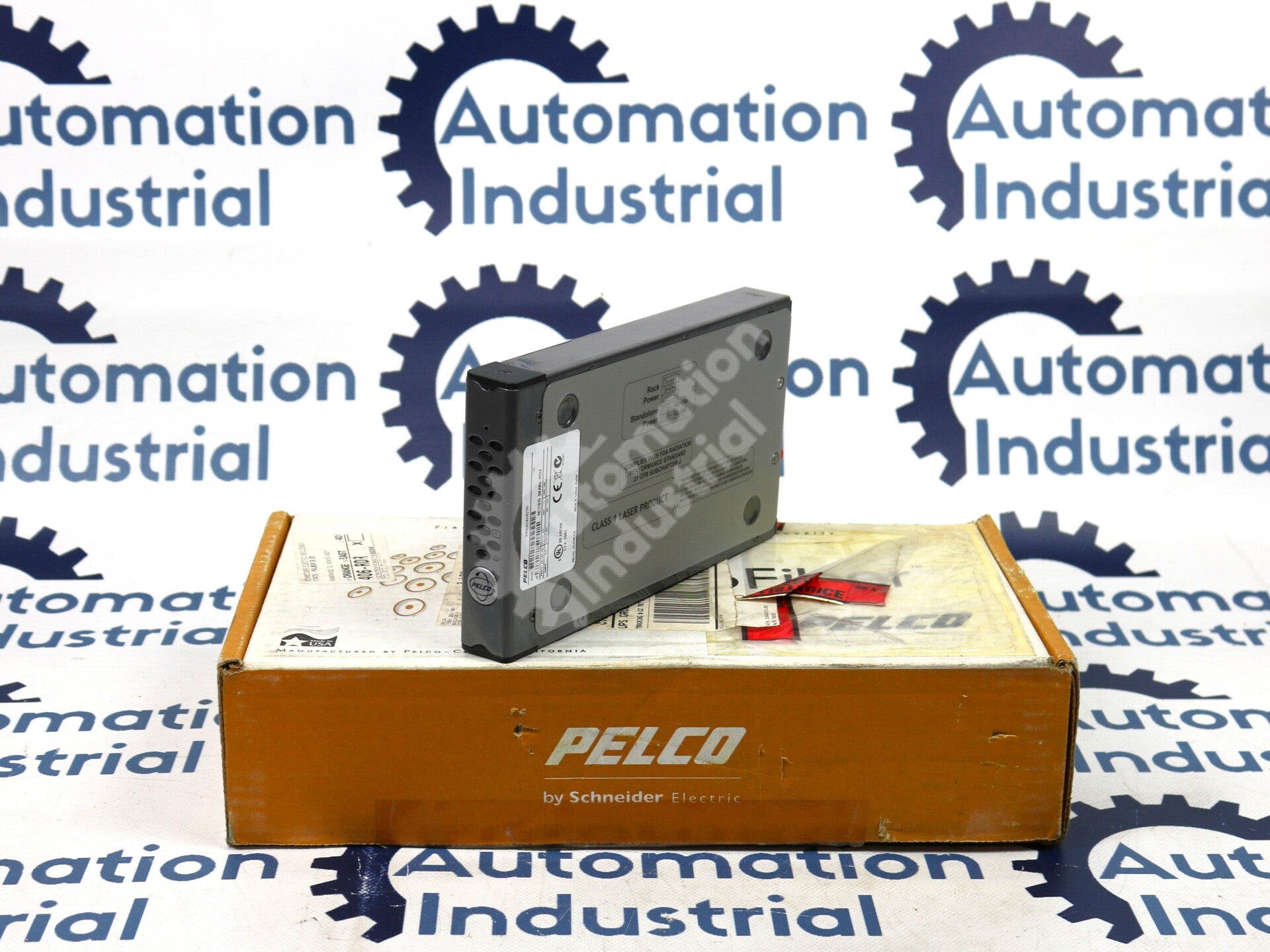

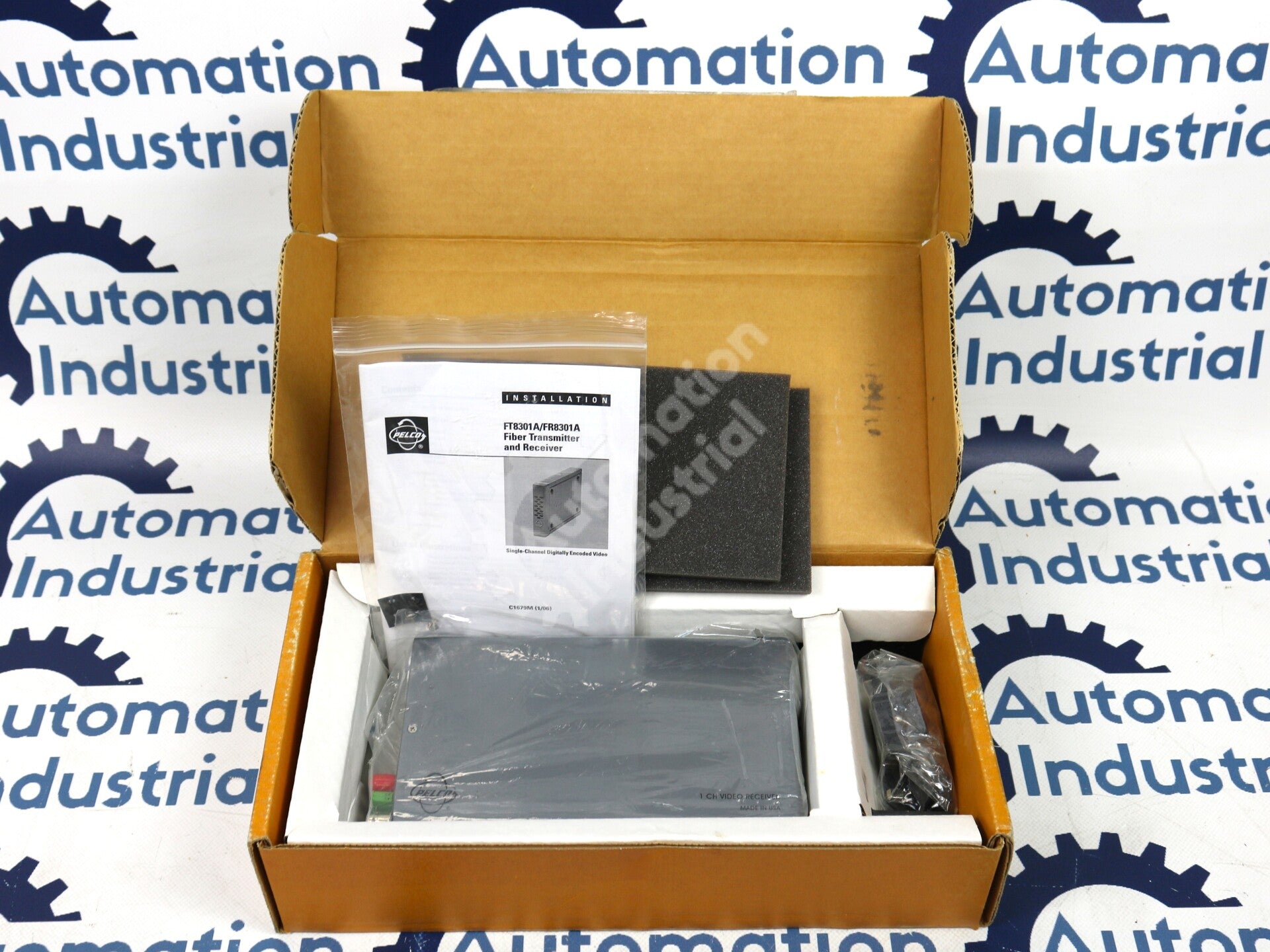

FR8301AMSTR By Pelco Fiber Transmitter and Receiver NSFP |
Condition |
New Surplus Factory Package With 1 Year Warranty. |
Technical Specifications | |
| Product ID | FR8301AMSTR |
| Original Manufacturer | Pelco |
| Part Family | Fiber Transmitters/Receivers |
| Version | Receiver |
| Video Type | Single Channel, Digitally Encoded |
| Multimode | Yes |
| Connector | ST |
| Transmission Distance | ≤2km |
| Wavelength | 850nm |
| Optical Power Budget | 20dB |
| Laser Class 1 Limit | <0.78mW |
| Series Manual | C1679M |
Frequently Asked Questions | |
| What transmitters are compatible with the FR8301AMSTR? The FR8301AMSTR can be used with the FT8301AMSTR, FT8301AMST, and FT8301MST transmitters. | |
| What kind of power supplies can the FR8301AMSTR use? The FR8301AMSTR is compatible with 12VDC and 24VAC type supplies. | |
| What is the maximum humidity level the FR8301AMSTR can operate in? The FR8301AMSTR can operate at levels up to 95%; beyond this, you will need a conformal coated model. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The FR8301AMSTR is a great model of this fiber receiver for use over longer distances. This variant is capable of receiving transmissions up to 2 kilometers away with great reliability. -Automation Industrial Quality Assurance Manager |
|
