- Board Number: DS200VPBLG1A
- Original Producer: General Electric
- Model Series: Mark V
- Subseries: Load Commutated Inverter
- Part Type: VME Backplane
- Layers: Analog, Digital
- Sections: J2, J3
- Related Processor Board: DSPC or UCVA
- Other Related Boards: FCGD, FCGE
- Testpoints: 60
- Series Manual: GEH-6373
- Board Manual: GEI-100227
-
How do you connect the DS200VPBLG1A to an exciter bridge?
- This is done via the EXJV connector.
-
How does the DS200VPBLG1A connect to the P1 backplane?
- This is done via the various power bugs on the rear side of the board.
-
Are the digital and analog power planes isolated from each other on the DS200VPBLG1A?
- Yes, these planes are isolated from one another.
⭐⭐⭐⭐⭐ 5.0
The DS200VPBLG1A is a big enough VME backplane to support a wide variety of boards for different functions within your system. This backplane is capable of working with larger applications thanks to this large quantity of connectors and I/O expansion support. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
DS200VPBLG1A Mark V DS200 |
Description |

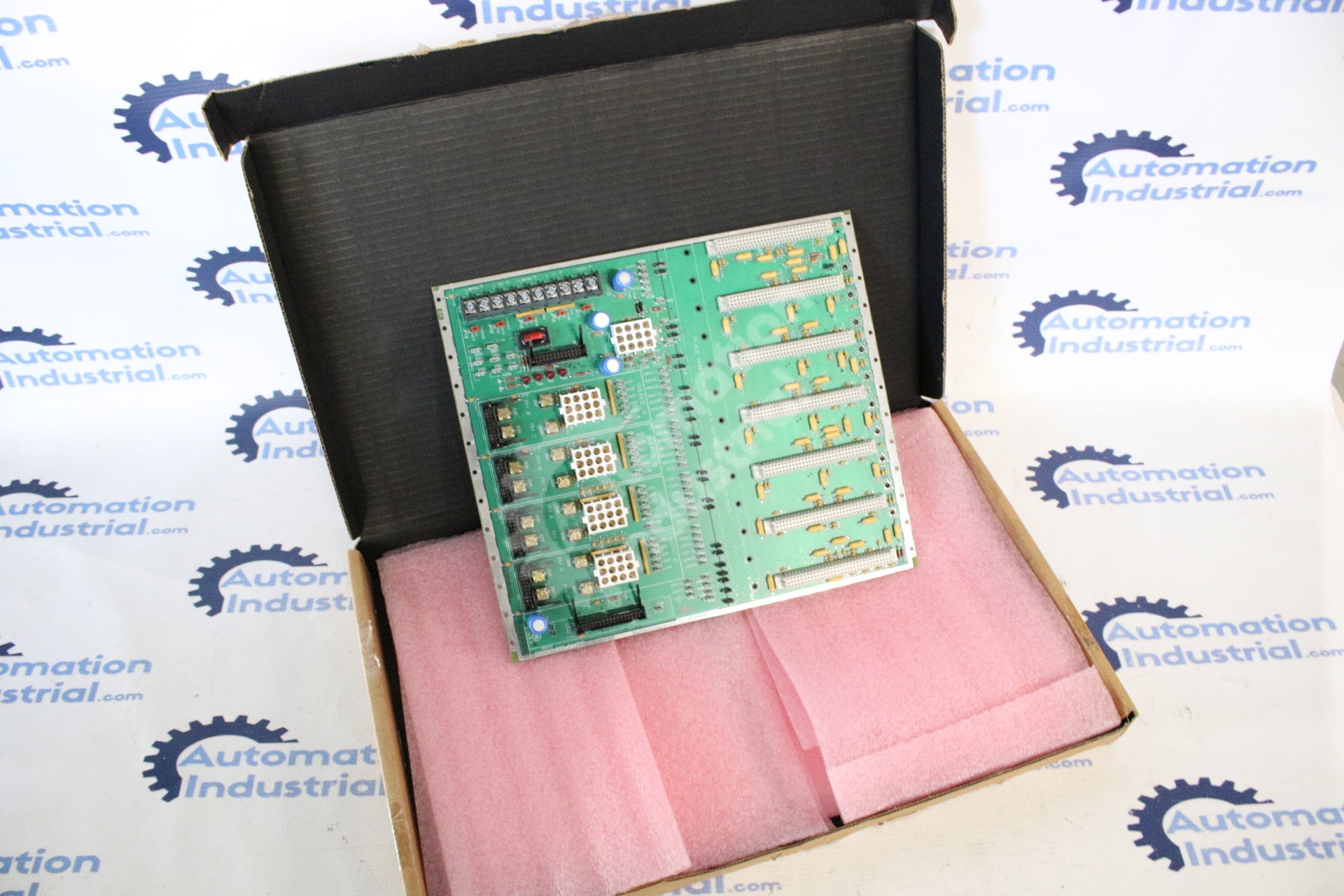

GE DS200VPBLG1A DS200VPBLG1ACC Mark V VME backplane board OPEN BOX |
Condition |
New Surplus Open Box Original Factory Packaged. With 1 Year Warranty. |
Technical Specifications | |
| Board Number | DS200VPBLG1A |
| Original Producer | General Electric |
| Model Series | Mark V |
| Subseries | Load Commutated Inverter |
| Part Type | VME Backplane |
| Layers | Analog, Digital |
| Sections | J2, J3 |
| Related Processor Board | DSPC or UCVA |
| Other Related Boards | FCGD, FCGE |
| Testpoints | 60 |
| Series Manual | GEH-6373 |
| Board Manual | GEI-100227 |
Frequently Asked Questions | |
| How do you connect the DS200VPBLG1A to an exciter bridge? This is done via the EXJV connector. | |
| How does the DS200VPBLG1A connect to the P1 backplane? This is done via the various power bugs on the rear side of the board. | |
| Are the digital and analog power planes isolated from each other on the DS200VPBLG1A? Yes, these planes are isolated from one another. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The DS200VPBLG1A is a big enough VME backplane to support a wide variety of boards for different functions within your system. This backplane is capable of working with larger applications thanks to this large quantity of connectors and I/O expansion support. -Automation Industrial Quality Assurance Manager |
|
