- Part Code: 531X307LTBACG1
- Alternate Code: F31X307LTBAAG1
- OEM: General Electric
- Product Line: AC/DC2000
- Model Designation: LAN Terminal Board
- Group: G1
- Input Plugs: 8
- Input Plug Voltage: 24VDC
- Nominal AC Voltage Input Range: 115-230VAC (50Hz)/24-230VAC (60Hz)
- Nominal DC Voltage Input Range: 24-250VDC
- I/O Terminal Wire Size: 28-14AWG
- Manual Name: GEI-100022B
-
What current range is supported on the 531X307LTBACG1?
- The 531X307LTBACG1 supports currents of 4-10mA with AC input signals and 4-8mA with DC input signals.
-
How long can a 26-conductor ribbon cable be to the 531X307LTBACG1?
- The 531X307LTBACG1 supports a ribbon cable of up to 20 feet in length.
-
What is the turn-on threshold for the 531X307LTBACG1?
- As one of the earlier revisions, the 531X307LTBACG1 has a threshold of 6V, 0.5mA AC/DC.
⭐⭐⭐⭐⭐ 5.0
The 531X307LTBACG1 offers much greater versatility than the group 2 versions of this board. This model includes AC input signal support, input plugs, and the important 8PL connector which links this board to other PCBs in the drive system. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
531X307LTBACG1 |
Description |

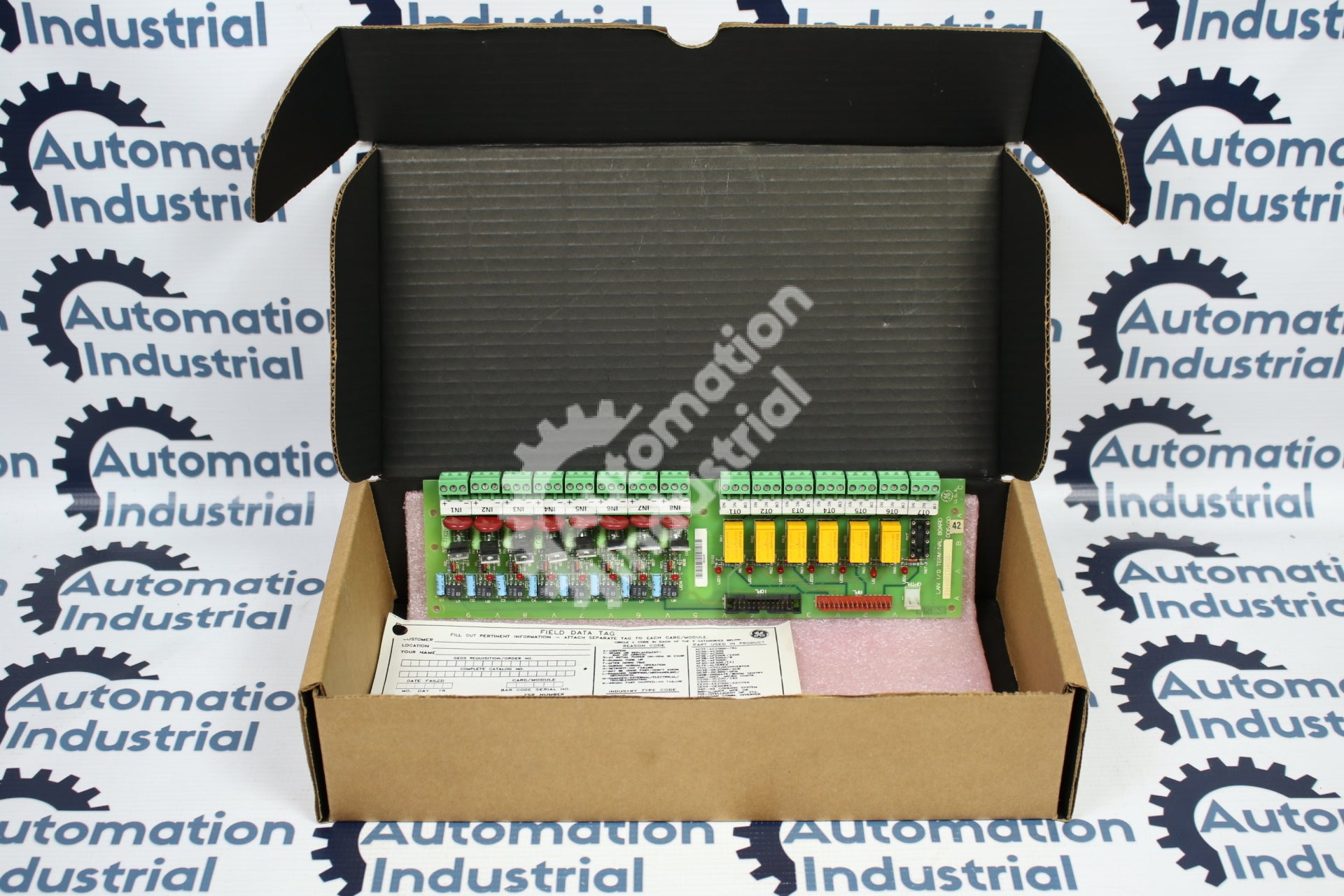

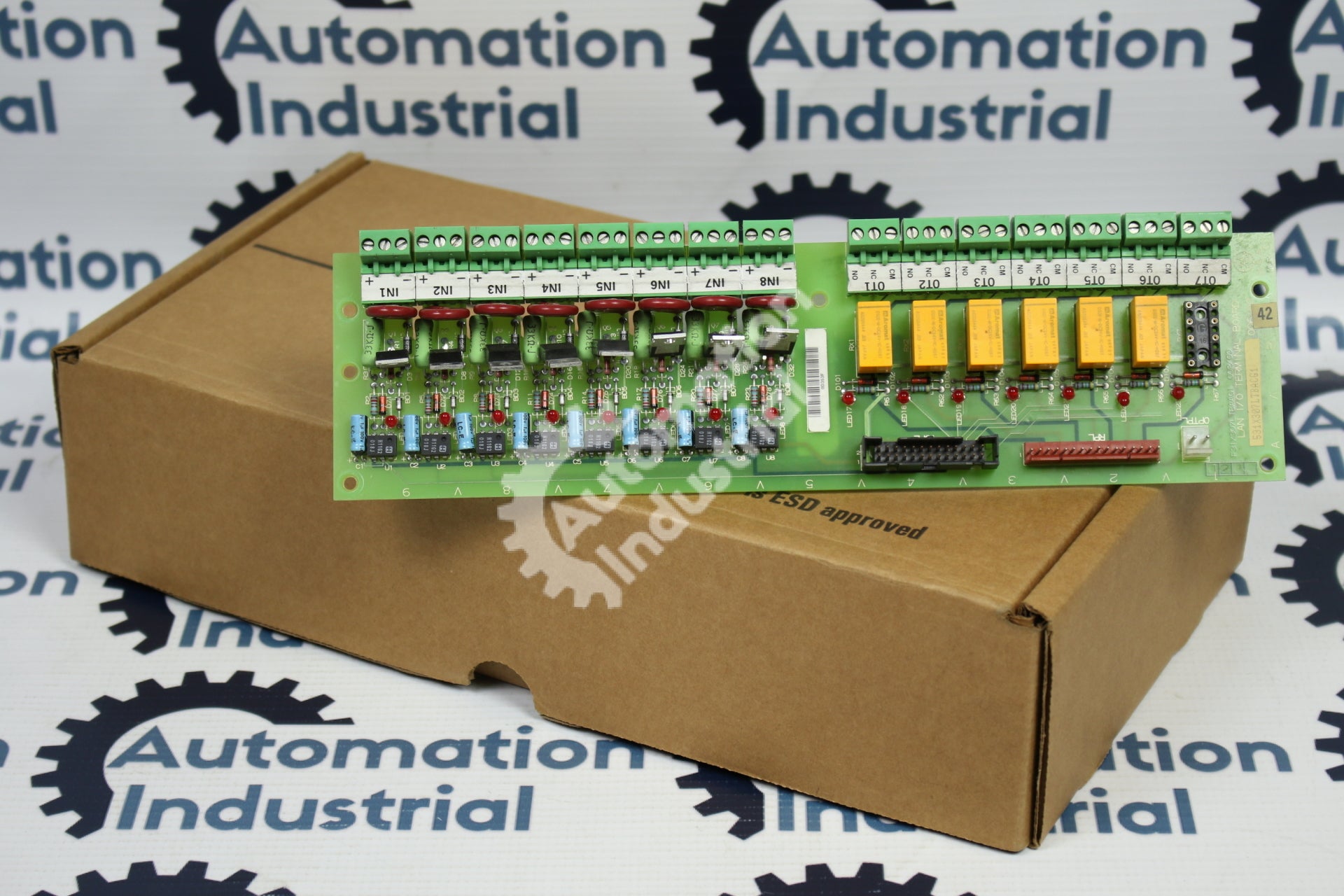

GE General Electric 531X307LTBACG1 F31X307LTBAAG1 LAN Terminal Board |
Condition |
Pre-Owned Clean and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Part Code | 531X307LTBACG1 |
| Alternate Code | F31X307LTBAAG1 |
| OEM | General Electric |
| Product Line | AC/DC2000 |
| Model Designation | LAN Terminal Board |
| Group | G1 |
| Input Plugs | 8 |
| Input Plug Voltage | 24VDC |
| Nominal AC Voltage Input Range | 115-230VAC (50Hz)/24-230VAC (60Hz) |
| Nominal DC Voltage Input Range | 24-250VDC |
| I/O Terminal Wire Size | 28-14AWG |
| Manual Name | GEI-100022B |
Frequently Asked Questions | |
| What current range is supported on the 531X307LTBACG1? The 531X307LTBACG1 supports currents of 4-10mA with AC input signals and 4-8mA with DC input signals. | |
| How long can a 26-conductor ribbon cable be to the 531X307LTBACG1? The 531X307LTBACG1 supports a ribbon cable of up to 20 feet in length. | |
| What is the turn-on threshold for the 531X307LTBACG1? As one of the earlier revisions, the 531X307LTBACG1 has a threshold of 6V, 0.5mA AC/DC. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The 531X307LTBACG1 offers much greater versatility than the group 2 versions of this board. This model includes AC input signal support, input plugs, and the important 8PL connector which links this board to other PCBs in the drive system. -Automation Industrial Quality Assurance Manager |
|
