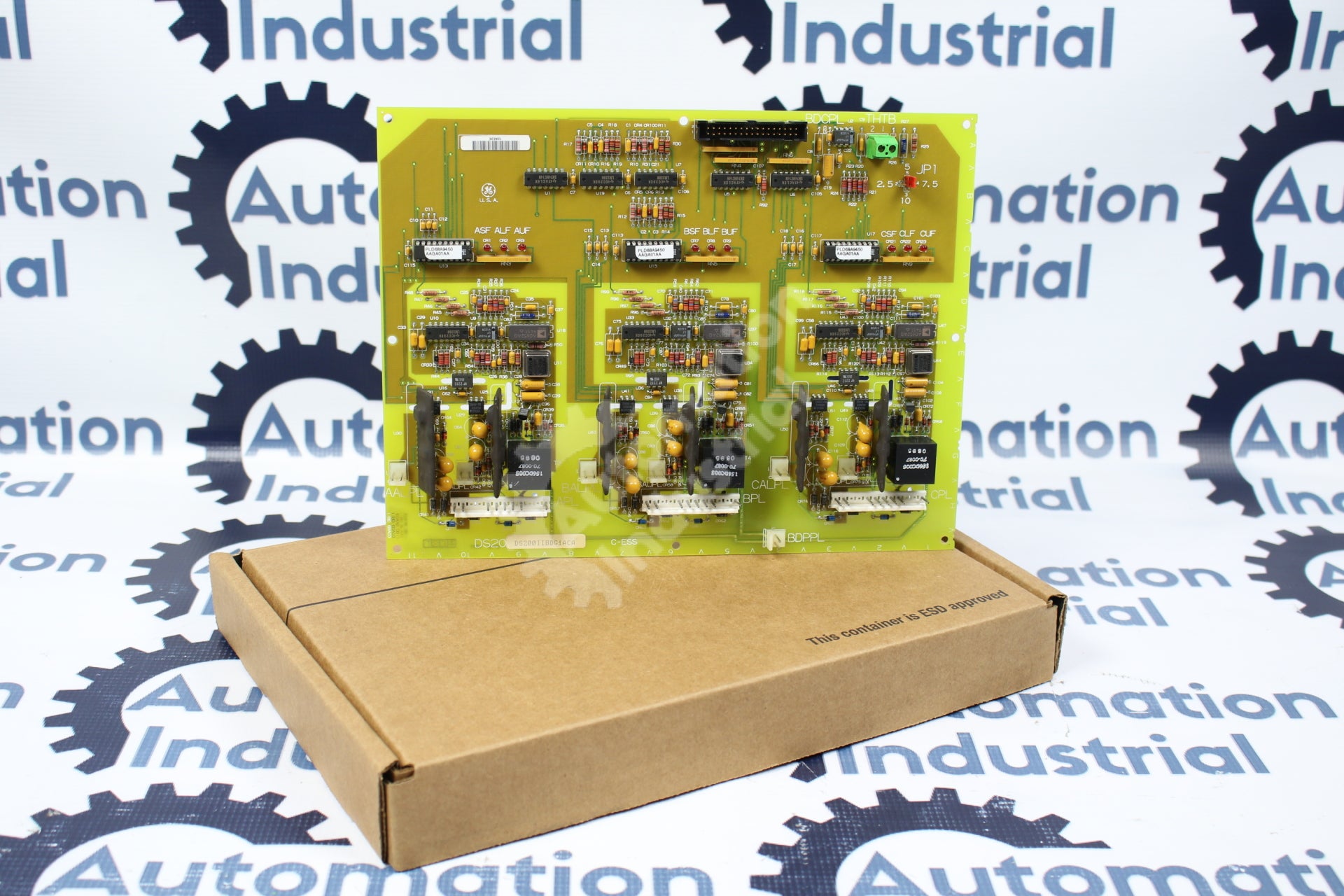

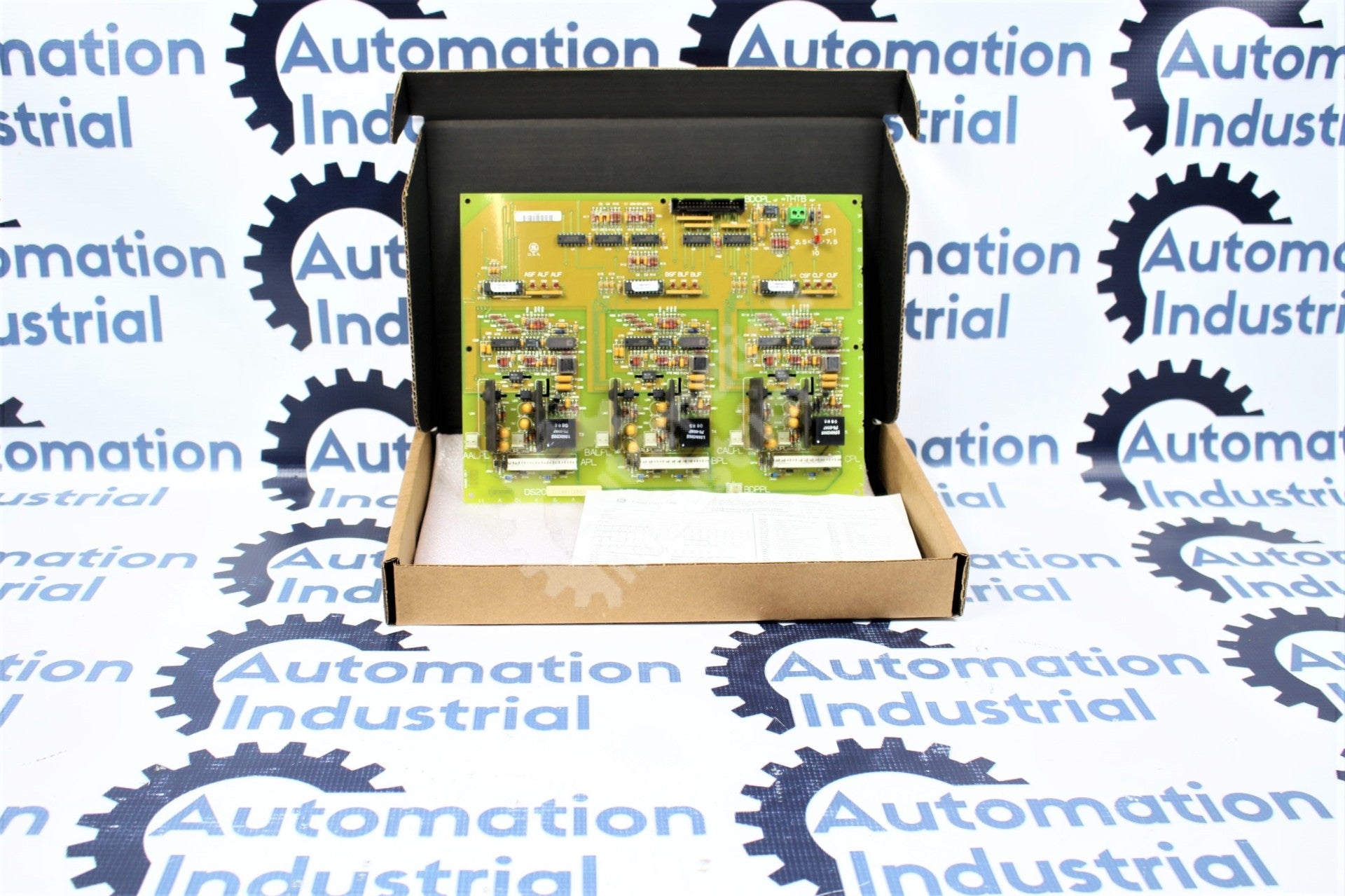

- Product Name: DS200IIBDG1A
- Part Manufacturer: General Electric
- Model Family: Mark V
- Role: IGBT Gate Driver Board
- Gate Driver Circuits: 6
- Isolation: Optical
- Circuits Per IGBT: 2
- Turn On Delay: 10, 7.5, 5, 2.5µs
- Temperature Sensor Input: Yes
- Jumpers: 1
- Shunt Current Feedback: VCO
- Manual No: GEI-100180
-
Are all of the gate driver circuits on the DS200IIBDG1A isolated?
- Yes, each of these circuits is independent and isolated.
-
How is the turn-on delay selected on the DS200IIBDG1A?
- This is selected via the JP1 jumper.
-
Does the DS200IIBDG1A require an external power supply?
- No, the DS200IIBDG1A has an internal power supply.
⭐⭐⭐⭐⭐ 5.0
The DS200IIBDG1A is highly reliable and noise-resistant due to the isolated gate driver circuits. Minimal configuration is needed for this board as well, allowing you to quickly integrate it into your system for accurate IGBT gate driving functionality. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
DS200IIBDG1A |
Description |
GE General Electric DS200IIBDG1A DS200IIBDG1ACA Insulated Gate Bipolar Transistor Mark V |
Condition |
Pre-Owned Clean and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Product Name | DS200IIBDG1A |
| Part Manufacturer | General Electric |
| Model Family | Mark V |
| Role | IGBT Gate Driver Board |
| Gate Driver Circuits | 6 |
| Isolation | Optical |
| Circuits Per IGBT | 2 |
| Turn On Delay | 10, 7.5, 5, 2.5µs |
| Temperature Sensor Input | Yes |
| Jumpers | 1 |
| Shunt Current Feedback | VCO |
| Manual No | GEI-100180 |
Frequently Asked Questions | |
| Are all of the gate driver circuits on the DS200IIBDG1A isolated? Yes, each of these circuits is independent and isolated. | |
| How is the turn-on delay selected on the DS200IIBDG1A? This is selected via the JP1 jumper. | |
| Does the DS200IIBDG1A require an external power supply? No, the DS200IIBDG1A has an internal power supply. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The DS200IIBDG1A is highly reliable and noise-resistant due to the isolated gate driver circuits. Minimal configuration is needed for this board as well, allowing you to quickly integrate it into your system for accurate IGBT gate driving functionality. -Automation Industrial Quality Assurance Manager |
|
