- Part Number: DS200NATOG2A
- Original Producer: General Electric
- Product Family: Mark V
- Board Role: Voltage Feedback Scaling
- Group Number: G2
- Total Resistor Strings: 5
- Resistors Per String: 4
- Wire Jumpers: 2
- Input Voltage: 1200, 2200, 4200V
- AC/DC Strings: 3 AC, 2 DC
- MOVs: 5
- Related Manual: GEI-100225
-
Which resistors are replaced with wire jumpers in the DS200NATOG2A compared to the G1 model?
- The bottom two resistors are replaced with wire jumpers.
-
How many resistors are used for each input voltage on the DS200NATOG2A?
- One is used for 1200V input, two for 2200V, and 4 for 4200V.
-
Does the DS200NATOG2A have any notable agency approvals?
- Yes, the DS200NATOG2A is "transients known and controlled" approved by several agencies.
⭐⭐⭐⭐⭐ 5.0
The DS200NATOG2A is compatible with more input voltages than a base "G1" model thanks to the addition of wire jumpers in place of a couple of the resistors per string. This model works great in systems with 1200, 2200, or 4200 volt inputs in particular. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
DS200NATOG2A Mark V DS200 |
Description |

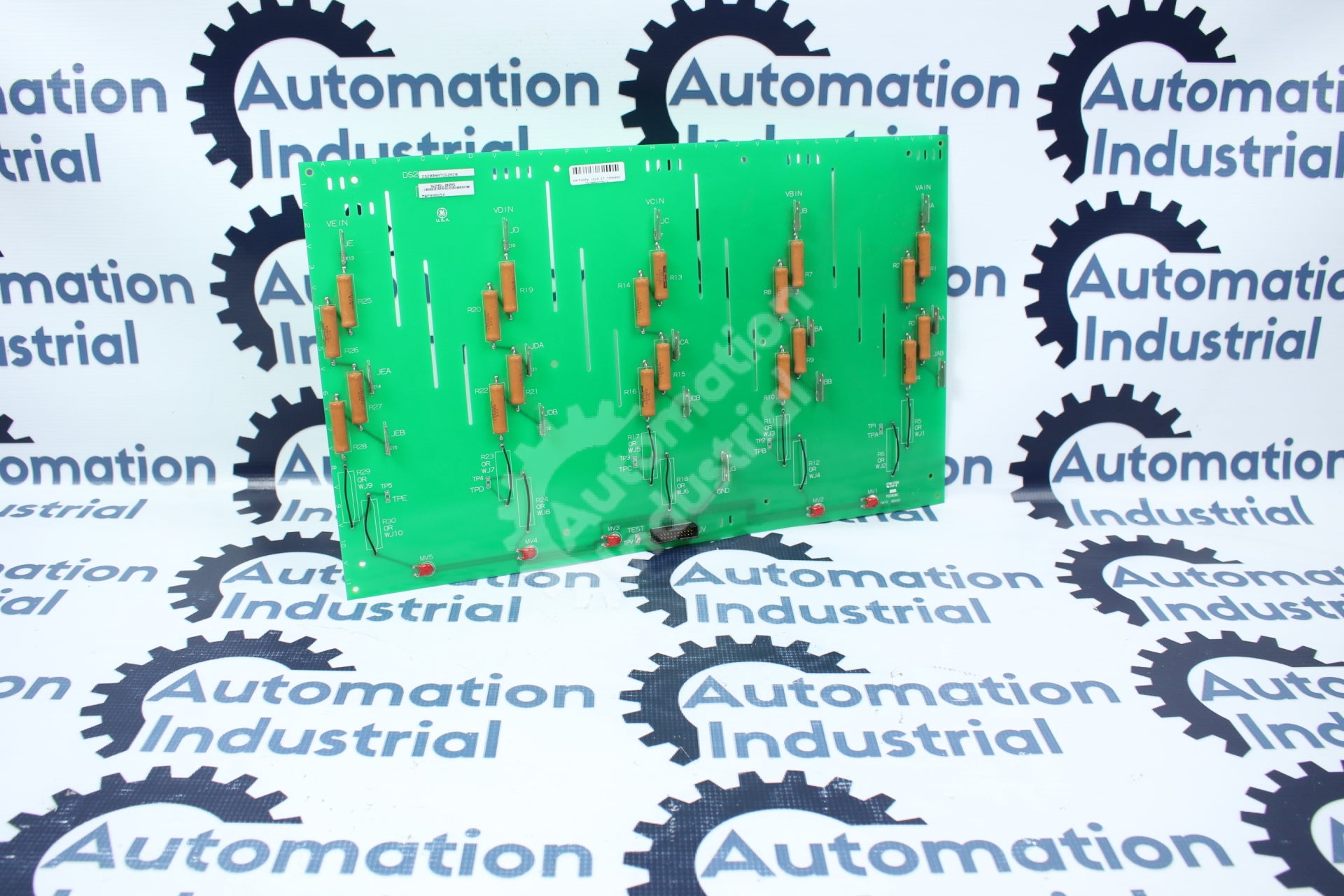

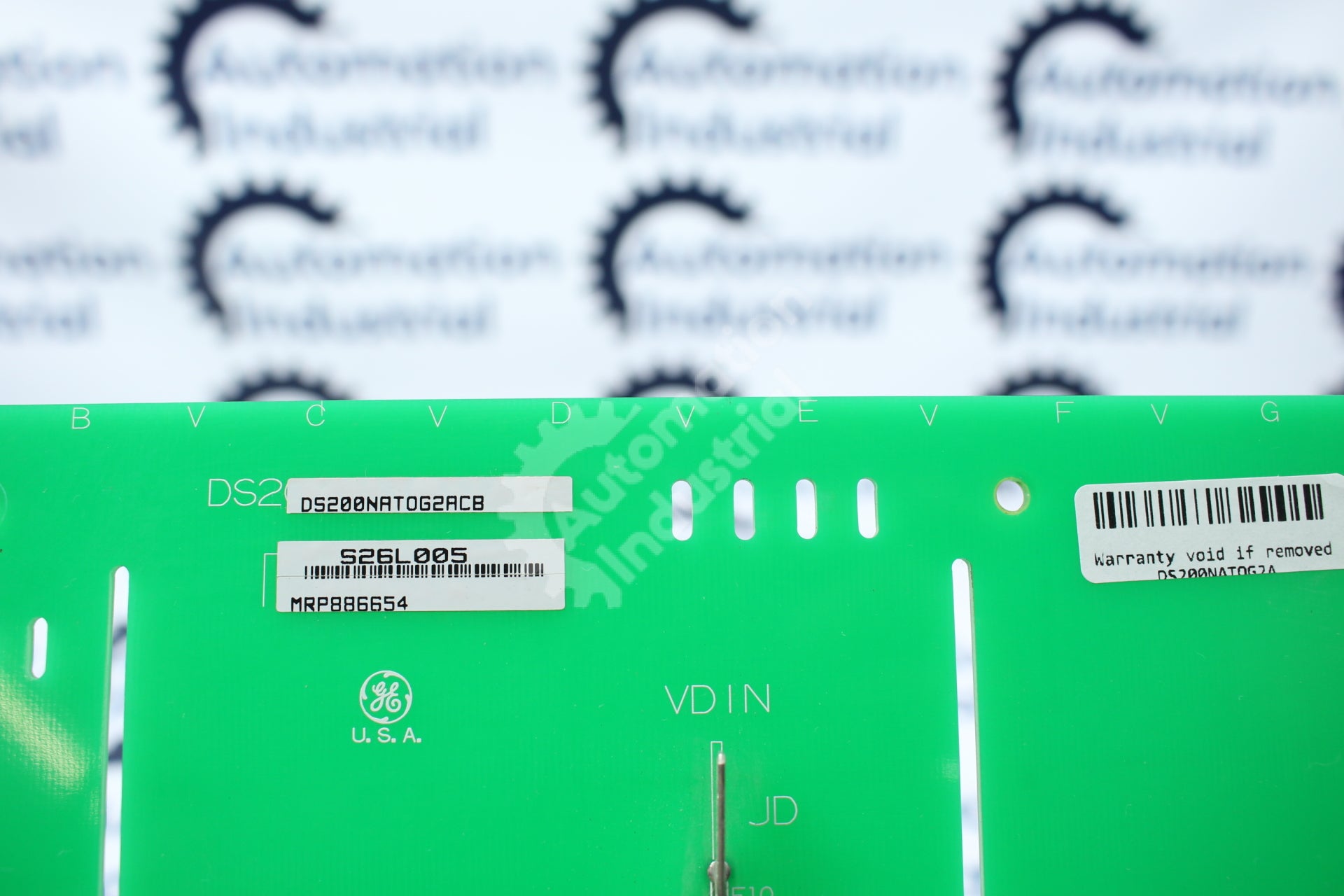

GE General Electric DS200NATOG2A DS200NATOG2ACB Printed Circuit Board Mark V |
Condition |
Pre-Owned Clean and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Part Number | DS200NATOG2A |
| Original Producer | General Electric |
| Product Family | Mark V |
| Board Role | Voltage Feedback Scaling |
| Group Number | G2 |
| Total Resistor Strings | 5 |
| Resistors Per String | 4 |
| Wire Jumpers | 2 |
| Input Voltage | 1200, 2200, 4200V |
| AC/DC Strings | 3 AC, 2 DC |
| MOVs | 5 |
| Related Manual | GEI-100225 |
Frequently Asked Questions | |
| Which resistors are replaced with wire jumpers in the DS200NATOG2A compared to the G1 model? The bottom two resistors are replaced with wire jumpers. | |
| How many resistors are used for each input voltage on the DS200NATOG2A? One is used for 1200V input, two for 2200V, and 4 for 4200V. | |
| Does the DS200NATOG2A have any notable agency approvals? Yes, the DS200NATOG2A is "transients known and controlled" approved by several agencies. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The DS200NATOG2A is compatible with more input voltages than a base "G1" model thanks to the addition of wire jumpers in place of a couple of the resistors per string. This model works great in systems with 1200, 2200, or 4200 volt inputs in particular. -Automation Industrial Quality Assurance Manager |
|
