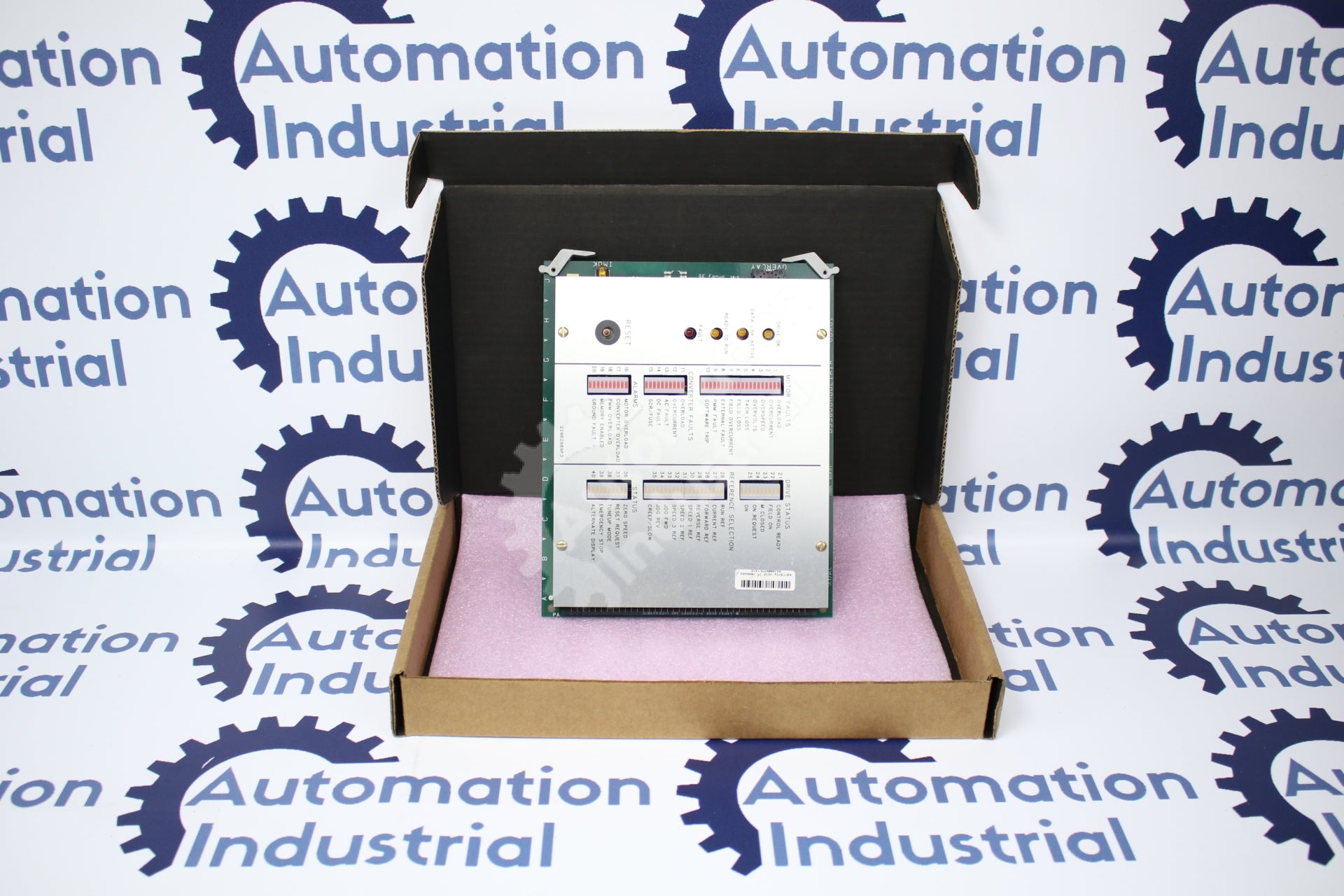

- Unit Number: DS3800HDDL1A1A
- PCB ID: 6BA01
- Produced By: GE Fanuc
- Board Family: Mark IV
- Description: Digital Drive Display Board
- Motor Fault Channels: 10
- Converter Fault Channels: 5
- Alarm Channels: 5
- Drive Status Channels: 5
- Reference Selection Channels: 10
- Status Channels: 5
- Rack-Mounted: Yes
-
Does the DS3800HDDL1A1A have a reset button?
- Yes, this is easily accessible on the front of the panel.
-
How many status LEDs are on the front panel of the DS3800HDDL1A1A?
- The front panel of the DS3800HDDL1A1A has 4 LEDs which display the Drive OK, Data Link Active, Ready to Run, and Fault statuses.
-
Is the overlay port clearly marked on the DS3800HDDL1A1A?
- Yes, the DS3800HDDL1A1A has a clear "OVERLAY" label next to this port for visual reference.
⭐⭐⭐⭐⭐ 5.0
The DS3800HDDL1A1A serves as an excellent drive interface board which helps you quickly identify the full status of your system. This board contains over 40 different status/fault indicators to give you a comprehensive and clear readout of your drive. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
DS3800HDDL1A1A Mark IV DS3800 |
Description |
GE General Electric DS3800HDDL1A1A DS3800HDDL Display Board Mark IV |
Condition |
Pre-Owned Cleaned and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Unit Number | DS3800HDDL1A1A |
| PCB ID | 6BA01 |
| Produced By | GE Fanuc |
| Board Family | Mark IV |
| Description | Digital Drive Display Board |
| Motor Fault Channels | 10 |
| Converter Fault Channels | 5 |
| Alarm Channels | 5 |
| Drive Status Channels | 5 |
| Reference Selection Channels | 10 |
| Status Channels | 5 |
| Rack-Mounted | Yes |
Frequently Asked Questions | |
| Does the DS3800HDDL1A1A have a reset button? Yes, this is easily accessible on the front of the panel. | |
| How many status LEDs are on the front panel of the DS3800HDDL1A1A? The front panel of the DS3800HDDL1A1A has 4 LEDs which display the Drive OK, Data Link Active, Ready to Run, and Fault statuses. | |
| Is the overlay port clearly marked on the DS3800HDDL1A1A? Yes, the DS3800HDDL1A1A has a clear "OVERLAY" label next to this port for visual reference. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The DS3800HDDL1A1A serves as an excellent drive interface board which helps you quickly identify the full status of your system. This board contains over 40 different status/fault indicators to give you a comprehensive and clear readout of your drive. -Automation Industrial Quality Assurance Manager |
|
