- Part Number: IS200DAMCG1A
- Family: Mark VI IS200
- Unit Manufacturer: GE
- Subseries: Innovation
- Product Type: Gate Drive Amplifier/Interface Board
- Variant: C
- Frame: 250 Frame
- LEDs: 4
- Powerrex IGBT: CM400HA-28H
- Modules Per Drive: 3
- Testpoints: None
- Fuses: None
-
How many IGBT modules are there on the IS200DAMCG1A?
- The IS200DAMCG1A has one upper phase leg IGBT module and one lower phase one.
-
Are there any block diagrams available for the IS200DAMCG1A?
- The block diagram for the IS200DAMCG1A can be found in the GEI-100262A manual.
-
What power supply input does the IS200DAMCG1A receive?
- As one of the larger frame models, the IS200DAMCG1A receives an input of +15/-7.5.
⭐⭐⭐⭐ 4.0
The IS200DAMCG1A is effective in interfacing control rack and power switching devices in an Innovation system without unnecessary complication. This board is easy to work with and generally has a long service life. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
IS200DAMCG1A Mark VI IS200 |
Description |

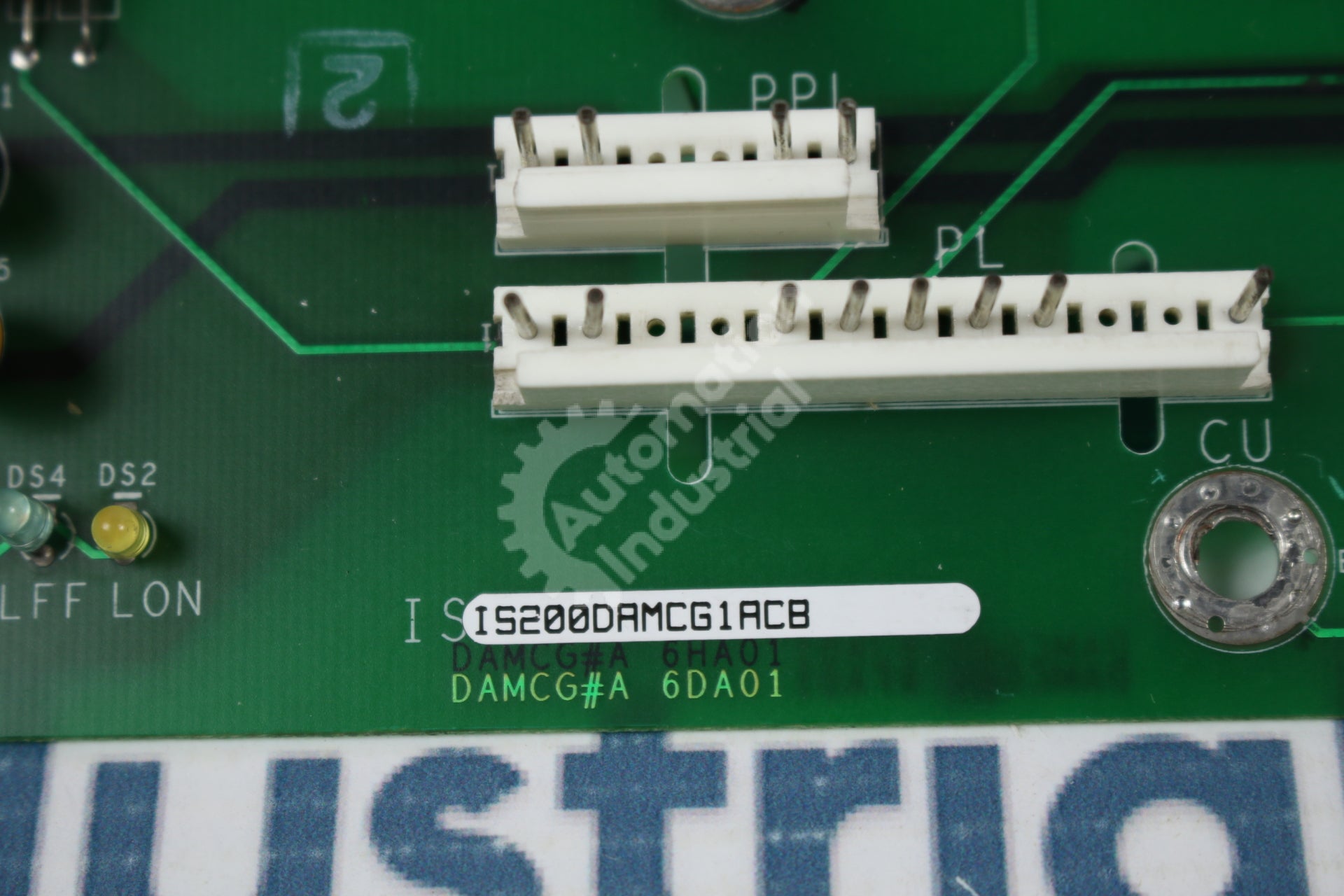

GE IS200DAMCG1A IS200DAMCG1ACB PCB Circuit Board Mark VI |
Condition |
Pre-Owned Clean and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Part Number | IS200DAMCG1A |
| Family | Mark VI IS200 |
| Unit Manufacturer | GE |
| Subseries | Innovation |
| Product Type | Gate Drive Amplifier/Interface Board |
| Variant | C |
| Frame | 250 Frame |
| LEDs | 4 |
| Powerrex IGBT | CM400HA-28H |
| Modules Per Drive | 3 |
| Testpoints | None |
| Fuses | None |
Frequently Asked Questions | |
| How many IGBT modules are there on the IS200DAMCG1A? The IS200DAMCG1A has one upper phase leg IGBT module and one lower phase one. | |
| Are there any block diagrams available for the IS200DAMCG1A? The block diagram for the IS200DAMCG1A can be found in the GEI-100262A manual. | |
| What power supply input does the IS200DAMCG1A receive? As one of the larger frame models, the IS200DAMCG1A receives an input of +15/-7.5. | |
Internal Review | |
|
⭐⭐⭐⭐
4.0
The IS200DAMCG1A is effective in interfacing control rack and power switching devices in an Innovation system without unnecessary complication. This board is easy to work with and generally has a long service life. -Automation Industrial Quality Assurance Manager |
|
