- Part Number: 469-P5-HI-A20
- Series: 469 Motor Management Relay (MMR)
- Analog Current Input Type: Passive
- Communication Ports: 3; 1 RS232 Port and 2 RS485 Ports
- Digital Inputs: Nine Opto-Isolated
- Parity: None, Even, Odd
- Power Supply: max. 45 VA
- Protocol: Modbus RTU/ Half Duplex
- Operation Time without Supply Voltage: 30 ms
- RTD Isolation: 36 Vpk
- Shipping Weight: max. 17 lbs
- Temperature Range: –50 to +250°C
- Voltage Range: 90 to 300 VDC
-
What kind of features are specified by the order code/part number of this model?

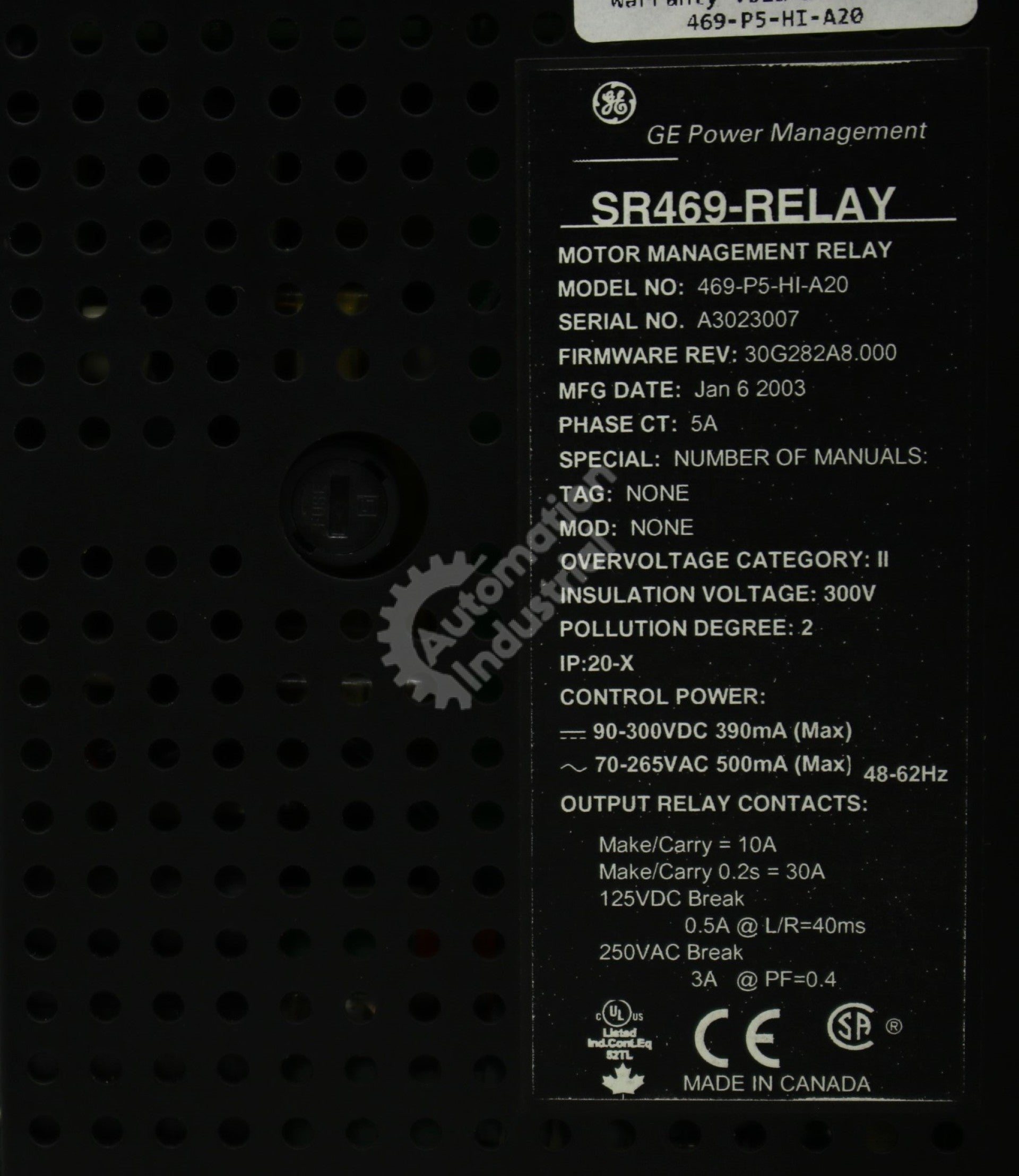

- "469-P5-HI-A20" signifies that this model uses 5A phase CT secondaries, a high voltage power supply, and 4-20 mA analog outputs..
-
What kind of motors can this unit work with?
- The 469-P5-HI-A20 may work with medium/large horsepower motors as well as driven equipment.
⭐⭐⭐⭐⭐ 5.0
The 469-P5-HI-A20 is a basic display version of this Motor Management Relay and lacks some of the visual clarity associated with the updated enhanced version. That said, because of its low likelihood of failure and easy on-board navigation, this relay is still used successfully in a wide variety of industrial applications. - Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
469-P5-HI-A20 469 Motor Management Relay |
Description |

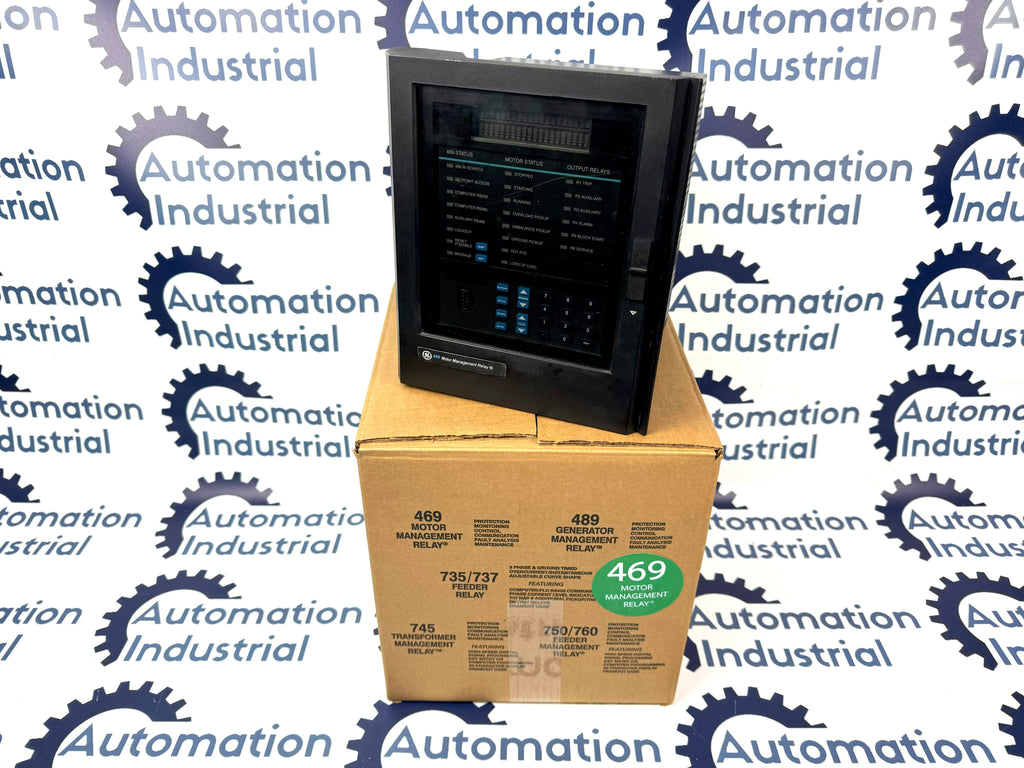

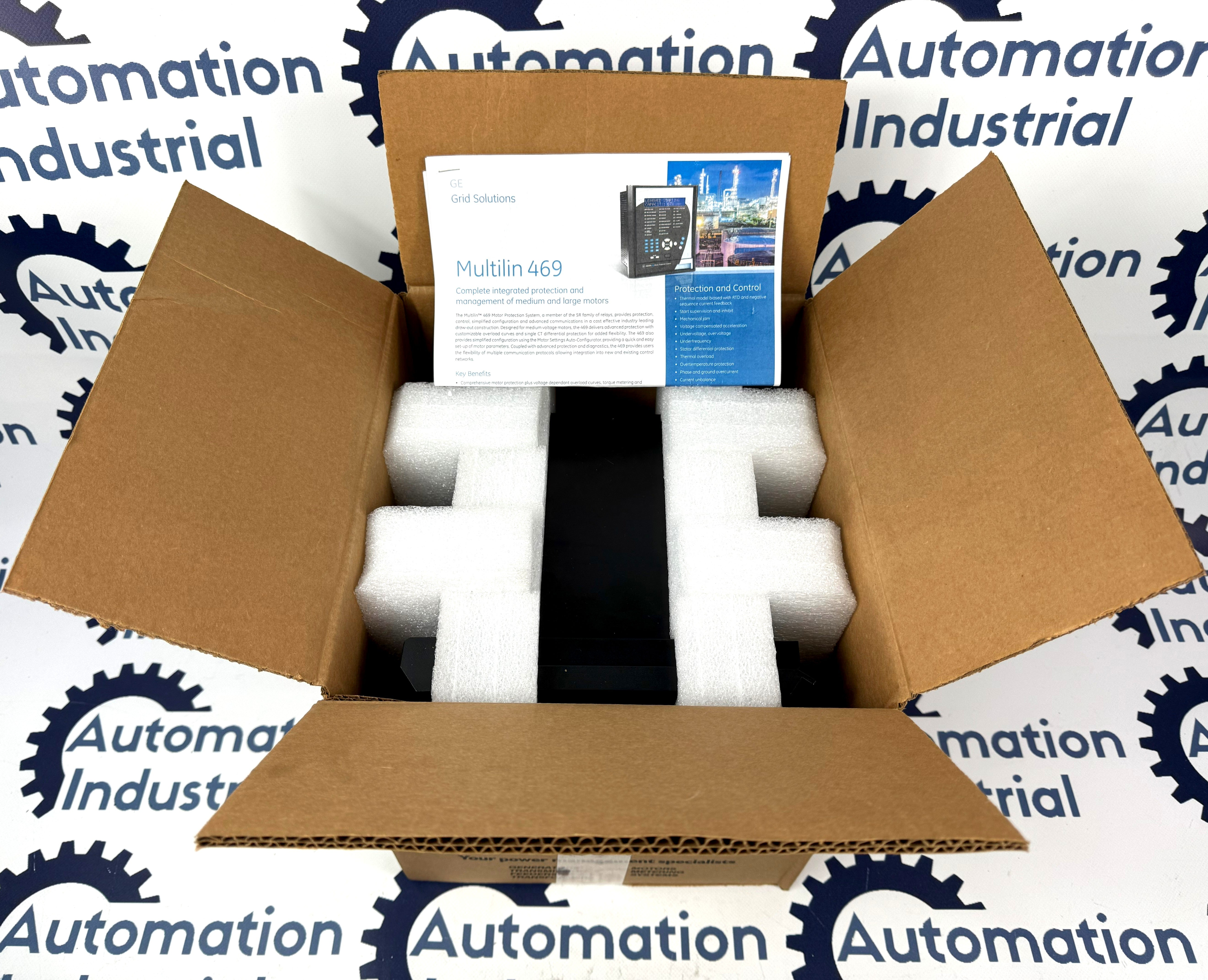

GE Multilin 469-P5-HI-A20 Motor Management Relay |
Condition |
Pre-Owned Cleaned and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Part Number | 469-P5-HI-A20 |
| Series | 469 Motor Management Relay (MMR) |
| Analog Current Input Type | Passive |
| Communication Ports | 3; 1 RS232 Port and 2 RS485 Ports |
| Digital Inputs | Nine Opto-Isolated |
| Parity | None, Even, Odd |
| Power Supply | max. 45 VA |
| Protocol | Modbus RTU/ Half Duplex |
| Operation Time without Supply Voltage | 30 ms |
| RTD Isolation | 36 Vpk |
| Shipping Weight | max. 17 lbs |
| Temperature Range | –50 to +250°C |
| Voltage Range | 90 to 300 VDC |
Frequently Asked Questions | |
| What kind of features are specified by the order code/part number of this model? "469-P5-HI-A20" signifies that this model uses 5A phase CT secondaries, a high voltage power supply, and 4-20 mA analog outputs.. | |
| What kind of motors can this unit work with? The 469-P5-HI-A20 may work with medium/large horsepower motors as well as driven equipment. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The 469-P5-HI-A20 is a basic display version of this Motor Management Relay and lacks some of the visual clarity associated with the updated enhanced version. That said, because of its low likelihood of failure and easy on-board navigation, this relay is still used successfully in a wide variety of industrial applications. - Automation Industrial Quality Assurance Manager |
|
