We have this item physically in stock on our shelf. Buy with confidence!
Contact Information: 1-800-991-7026 | 1-919-372-8413 | sales@automationindustrial.com
FREE DOMESTIC GROUND SHIPPING! (see shipping policies below for more details)
ALL ORDERS SHIP SAME DAY! (if placed before 3PM EST)

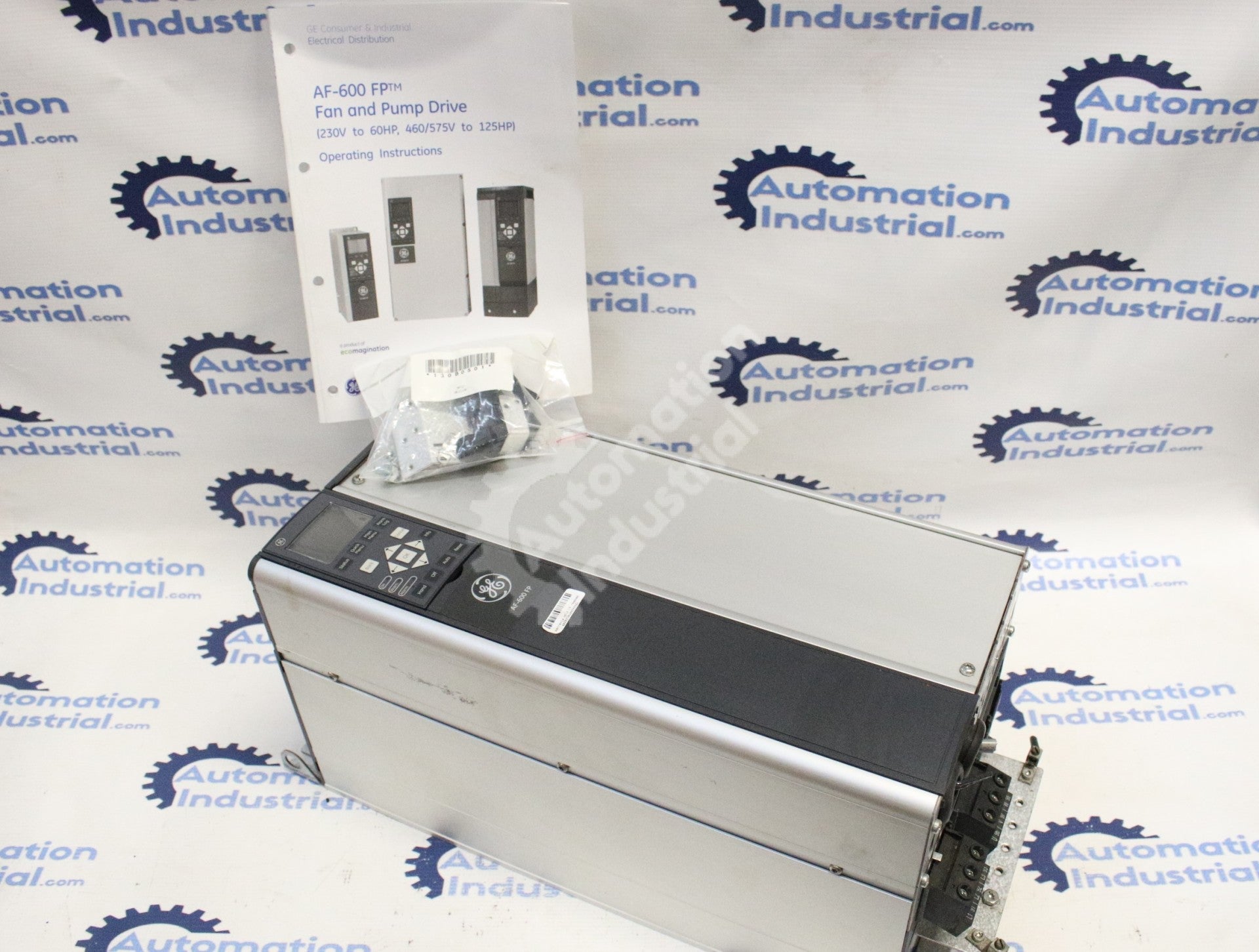

- Part Code: 6KFP23020X9XXXA1
- Original Manufacturer: GE
- Product Series: AF-600
- Designation: Fan and Pump Drive
- Horsepower: 20HP
- Mains Supply Rating: 230VAC
- Phase Type: 3-Phase
- Optional Features: None
- Efficiency Rating: 0.96
- Continuous kVA: 54
- Approvals: CE, cUL, C-Tick
- Series Manual: DET-609B
-
At what altitude does derating the 6KFP23020X9XXXA1 become necessary?
- This becomes necessary for operation at 1000m and above (up to a maximum of 3000m).
-
Does this 6KFP23020X9XXXA1 drive come with your standard warranty included?
- Yes, this drive is covered under our 1-year warranty.
-
How protective is the enclosure of the 6KFP23020X9XXXA1?
- Since the 6KFP23020X9XXXA1 uses a chassis-type enclosure, this model is only protected to an IP20 level.
⭐⭐⭐⭐ 4.0
While the 6KFP23020X9XXXA1 enclosure is easy to find parts for in case it breaks, you may run into some trouble trying to find specific parts to replace internal components of this drive. This is due to it being rated for the less common 230V line voltage. Typically, however, these internal components are some of the lowest failure rate parts in this drive design, so this should not be too much of an issue. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
6KFP23020X9XXXA1 AF-600 FP |
Description |
General Electric 6KFP23020X9XXXA1 131H9013 FP Drive |
Condition |
Pre-Owned Clean and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Part Code | 6KFP23020X9XXXA1 |
| Original Manufacturer | GE |
| Product Series | AF-600 |
| Designation | Fan and Pump Drive |
| Horsepower | 20HP |
| Mains Supply Rating | 230VAC |
| Phase Type | 3-Phase |
| Optional Features | None |
| Efficiency Rating | 0.96 |
| Continuous kVA | 54 |
| Approvals | CE, cUL, C-Tick |
| Series Manual | DET-609B |
Frequently Asked Questions | |
| At what altitude does derating the 6KFP23020X9XXXA1 become necessary? This becomes necessary for operation at 1000m and above (up to a maximum of 3000m). | |
| Does this 6KFP23020X9XXXA1 drive come with your standard warranty included? Yes, this drive is covered under our 1-year warranty. | |
| How protective is the enclosure of the 6KFP23020X9XXXA1? Since the 6KFP23020X9XXXA1 uses a chassis-type enclosure, this model is only protected to an IP20 level. | |
Internal Review | |
|
⭐⭐⭐⭐
4.0
While the 6KFP23020X9XXXA1 enclosure is easy to find parts for in case it breaks, you may run into some trouble trying to find specific parts to replace internal components of this drive. This is due to it being rated for the less common 230V line voltage. Typically, however, these internal components are some of the lowest failure rate parts in this drive design, so this should not be too much of an issue. -Automation Industrial Quality Assurance Manager |
|
