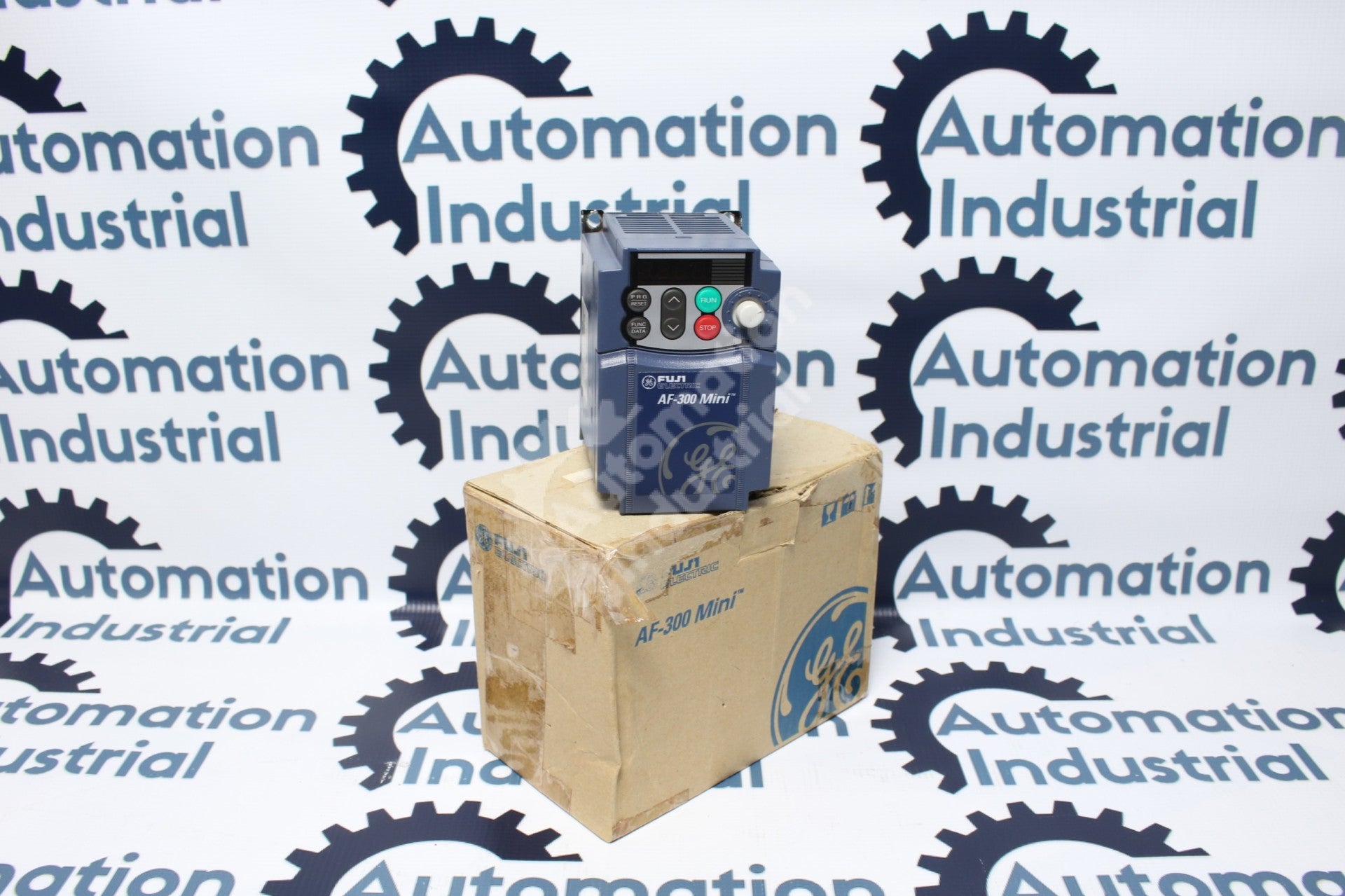

- Product Code: 6KXC111F12X9A1
- Made By: GE/Fuji Electric
- Series: AF-300 Mini
- Category: AC Drive
- Horsepower: 1/8
- Voltage: 115V
- Frequency: 50/60Hz
- Installed Options: Keypad
- Revision: A1
- Operating Temperature: -10° to 50°C
- Humidity: 5% to 95%
- Made In: Japan
-
Is the manual for the 6KXC111F12X9A1 still available online?
- Yes, the GEH-6647 manual is still available online.
-
What is the maximum carrier frequency supported by the 6KXC111F12X9A1?
- The 6KXC111F12X9A1 can support a carrier frequency up to 15kHz, but this may be throttled to protect the drive if conditions become unfavorable.
-
What temperatures are acceptable for storing the 6KXC111F12X9A1?
- The 6KXC111F12X9A1 is rated for storage within temperatures between -25° and 65°C, so long as it is not subject to sudden temperature changes.
⭐⭐⭐⭐ 4.0
The 6KXC111F12X9A1 is by far the simplest and lowest-rated model in the AF-300 Mini series. This can be great for operators who only need the minimum performance for a basic 115V application, but this model will struggle in anything more than this type of system. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |

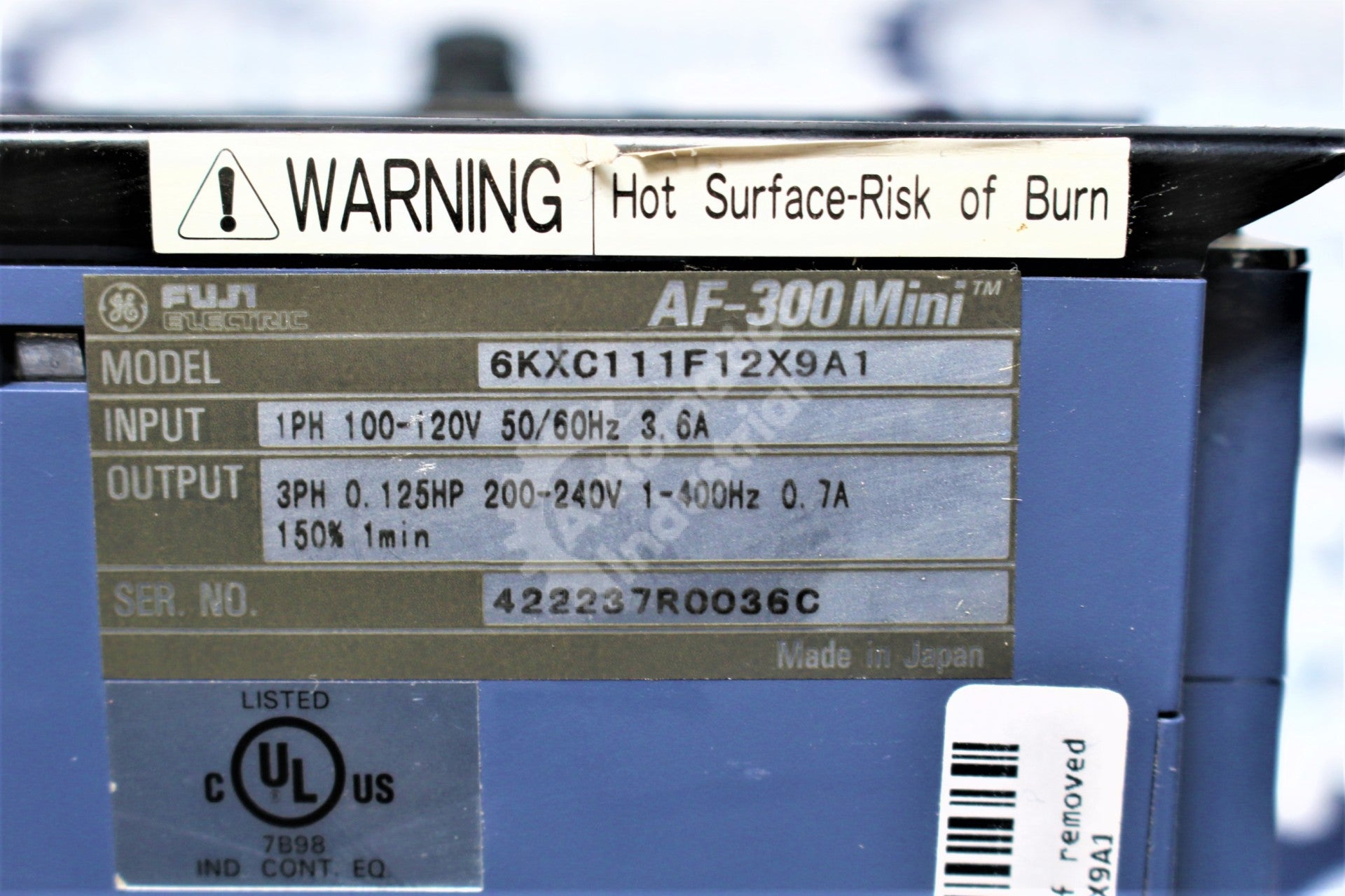

Part Number |
6KXC111F12X9A1 AF-300 Mini |
Description |
General Electric GE Fuji 6KXC111F12X9A1 .12HP Drive |
Condition |
Pre-Owned Clean and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Product Code | 6KXC111F12X9A1 |
| Made By | GE/Fuji Electric |
| Series | AF-300 Mini |
| Category | AC Drive |
| Horsepower | 1/8 |
| Voltage | 115V |
| Frequency | 50/60Hz |
| Installed Options | Keypad |
| Revision | A1 |
| Operating Temperature | -10° to 50°C |
| Humidity | 5% to 95% |
| Made In | Japan |
Frequently Asked Questions | |
| Is the manual for the 6KXC111F12X9A1 still available online? Yes, the GEH-6647 manual is still available online. | |
| What is the maximum carrier frequency supported by the 6KXC111F12X9A1? The 6KXC111F12X9A1 can support a carrier frequency up to 15kHz, but this may be throttled to protect the drive if conditions become unfavorable. | |
| What temperatures are acceptable for storing the 6KXC111F12X9A1? The 6KXC111F12X9A1 is rated for storage within temperatures between -25° and 65°C, so long as it is not subject to sudden temperature changes. | |
Internal Review | |
|
⭐⭐⭐⭐
4.0
The 6KXC111F12X9A1 is by far the simplest and lowest-rated model in the AF-300 Mini series. This can be great for operators who only need the minimum performance for a basic 115V application, but this model will struggle in anything more than this type of system. -Automation Industrial Quality Assurance Manager |
|
