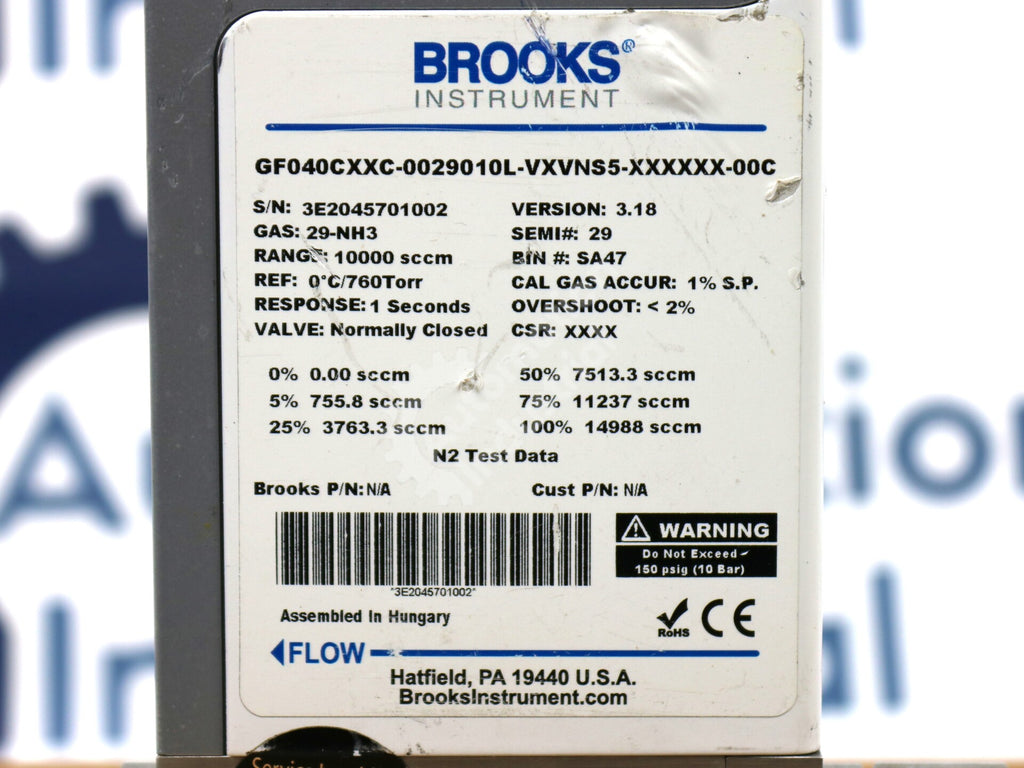

- Unit ID: GF040CXXC-0029010L-VXVNS5-XXXXXX-00C
- Part Manufacturer: Brooks Instrument
- General Series: GF
- Subseries: GF40
- Model Designation: Mass Flow Controller
- Flow Rate: 10slpm
- Nominal Range: 10000sccm
- Gas Type: NH₃
- Calibration Gas Accuracy: 1% SP
- Overshoot: <2%
- Fitting Type: 1/4" VCR
- Max Pressure: 150psig/10bar
-
Does the GF040CXXC-0029010L-VXVNS5-XXXXXX-00C have a valve?
- Yes, the GF040CXXC-0029010L-VXVNS5-XXXXXX-00C has a normally closed valve.
-
Is the GF040CXXC-0029010L-VXVNS5-XXXXXX-00C MultiFlo-capable?
- Yes, the GF040CXXC-0029010L-VXVNS5-XXXXXX-00C is a MultiFlo-capable model of this MFC.
-
What is the response time on the GF040CXXC-0029010L-VXVNS5-XXXXXX-00C like?
- The GF040CXXC-0029010L-VXVNS5-XXXXXX-00C has a response time of 1 second.
⭐⭐⭐⭐⭐ 5.0
The GF040CXXC-0029010L-VXVNS5-XXXXXX-00C has one of the higher flow rates among GF040 models on the market today. In addition, it uses a Brooks-compatible connector and 0-5V analog I/O for easy system integration. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
GF040CXXC-0029010L-VXVNS5-XXXXXX-00C |
Description |
GF040CXXC-0029010L-VXVNS5-XXXXXX-00C By Brooks Ammonia Mass Flow Controller |
Condition |
Pre-Owned Cleaned and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Unit ID | GF040CXXC-0029010L-VXVNS5-XXXXXX-00C |
| Part Manufacturer | Brooks Instrument |
| General Series | GF |
| Subseries | GF40 |
| Model Designation | Mass Flow Controller |
| Flow Rate | 10slpm |
| Nominal Range | 10000sccm |
| Gas Type | NH₃ |
| Calibration Gas Accuracy | 1% SP |
| Overshoot | <2% |
| Fitting Type | 1/4" VCR |
| Max Pressure | 150psig/10bar |
Frequently Asked Questions | |
| Does the GF040CXXC-0029010L-VXVNS5-XXXXXX-00C have a valve? Yes, the GF040CXXC-0029010L-VXVNS5-XXXXXX-00C has a normally closed valve. | |
| Is the GF040CXXC-0029010L-VXVNS5-XXXXXX-00C MultiFlo-capable? Yes, the GF040CXXC-0029010L-VXVNS5-XXXXXX-00C is a MultiFlo-capable model of this MFC. | |
| What is the response time on the GF040CXXC-0029010L-VXVNS5-XXXXXX-00C like? The GF040CXXC-0029010L-VXVNS5-XXXXXX-00C has a response time of 1 second. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The GF040CXXC-0029010L-VXVNS5-XXXXXX-00C has one of the higher flow rates among GF040 models on the market today. In addition, it uses a Brooks-compatible connector and 0-5V analog I/O for easy system integration. -Automation Industrial Quality Assurance Manager |
|
