- Part Number: IC300DAC001
- Original Manufacturer: GE Fanuc
- Product Line: SmartStack Modules
- Module Type: Analog Output
- Output Type: ±10VDC
- Channels: 2
- Resolution: 14-Bit
- Peak Output Voltage: 10.24V
- Load Impedance: 2KΩ Minimum
- Load Capacitance: 0.01µF Max
- Weight: 9.5oz
- Manual: GFK-1618A
-
How much steady-state power does the IC300DAC001 need to operate?
- The IC300DAC001 requires 0.79W at normal 33mA, 24VDC conditions.
-
What kind of terminals does the IC300DAC001 use?
- The IC300DAC001 has removeable, spring clamp terminals.
-
How many output points are required when installing the IC300DAC001?
- The IC300DAC001 requires 2 output points.
⭐⭐⭐⭐⭐ 5.0
The IC300DAC001 is an effective analog output module with particularly good resolution and power efficiency. For most applications, the two channels provided by this module are sufficient, but it may be worth upgrading to the 101 if you need additional outputs. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
IC300DAC001 IC300 OCS |
Description |

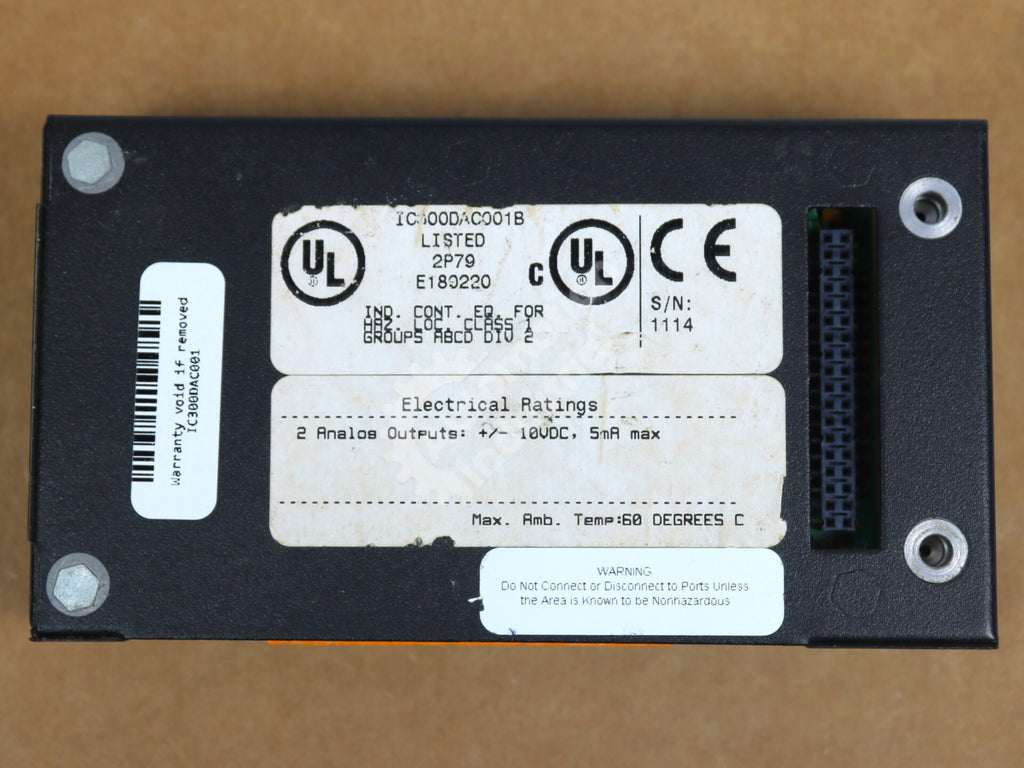

IC300DAC001 By General Electric IC300DAC001B 2-CH 10VDC 5mA Analog Output Module |
Condition |
Pre-Owned Cleaned and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Part Number | IC300DAC001 |
| Original Manufacturer | GE Fanuc |
| Product Line | SmartStack Modules |
| Module Type | Analog Output |
| Output Type | ±10VDC |
| Channels | 2 |
| Resolution | 14-Bit |
| Peak Output Voltage | 10.24V |
| Load Impedance | 2KΩ Minimum |
| Load Capacitance | 0.01µF Max |
| Weight | 9.5oz |
| Manual | GFK-1618A |
Frequently Asked Questions | |
| How much steady-state power does the IC300DAC001 need to operate? The IC300DAC001 requires 0.79W at normal 33mA, 24VDC conditions. | |
| What kind of terminals does the IC300DAC001 use? The IC300DAC001 has removeable, spring clamp terminals. | |
| How many output points are required when installing the IC300DAC001? The IC300DAC001 requires 2 output points. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The IC300DAC001 is an effective analog output module with particularly good resolution and power efficiency. For most applications, the two channels provided by this module are sufficient, but it may be worth upgrading to the 101 if you need additional outputs. -Automation Industrial Quality Assurance Manager |
|
