- Part ID: IS200TDBSH2A
- Original Equipment Manufacturer: GE
- Unit Series: Mark VIe
- Model Role: Simplex Discrete I/O Terminal Board
- Redundancy: Simplex Only
- Contact Inputs: 24
- Group: H2A
- Supply Voltage: 24VDC
- Voltage Range: 18.5-32VDC
- Pluggable TB: Yes
- Mounting Type: Flat, DIN-Rail
- Related Manual: GEH-6721G
-
Can the IS200TDBSH2A be configured to supply 48VDC or 125VDC?
- No, you will need an "H4A" or "H6A" model for these voltages respectively.
-
What option boards can be used with the IS200TDBSH2A?
- The IS200TDBSH2A supports the WROB, WROF, and WROG option boards.
-
Does the IS200TDBSH2A have any sort of input filter?
- Yes, the IS200TDBSH2A has a 4ms hardware filter.
⭐⭐⭐⭐⭐ 5.0
The IS200TDBSH2A is one of the more common TDBS board variants due to its lower wetting voltage rating. A major strength of this board is its support for various option boards which can greatly improve overall protection, compatibility, and power distribution capabilities. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
IS200TDBSH2A Mark VI IS200 |
Description |

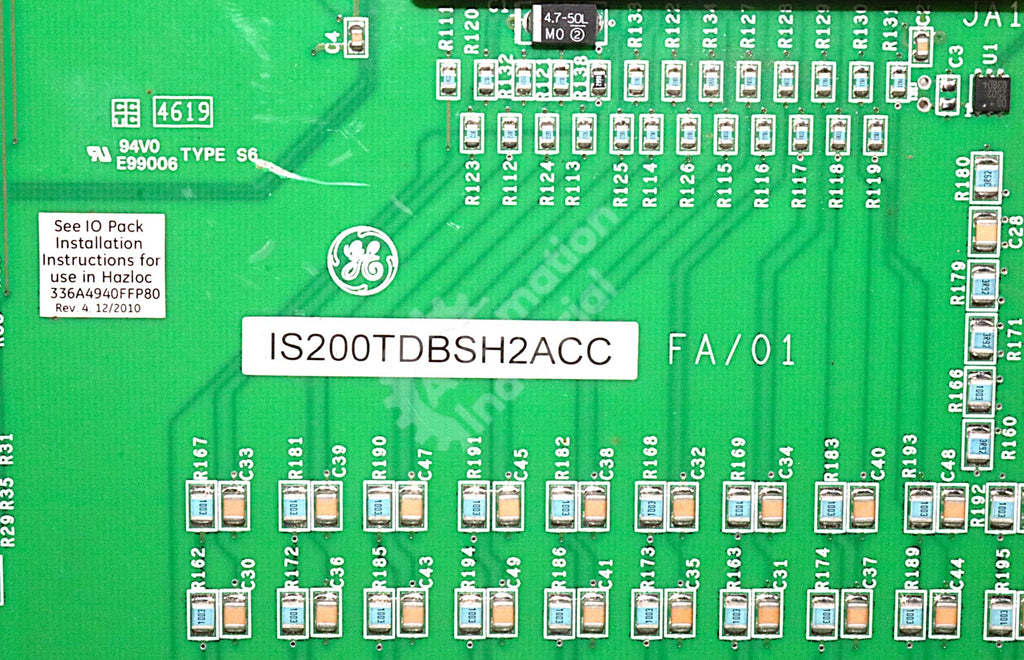

IS200TDBSH2A By General Electric IS200TDBSH2ACC Terminal Board |
Condition |
Pre-Owned Cleaned and Tested. With 1 Year Warranty |
Technical Specifications | |
| Part ID | IS200TDBSH2A |
| Original Equipment Manufacturer | GE |
| Unit Series | Mark VIe |
| Model Role | Simplex Discrete I/O Terminal Board |
| Redundancy | Simplex Only |
| Contact Inputs | 24 |
| Group | H2A |
| Supply Voltage | 24VDC |
| Voltage Range | 18.5-32VDC |
| Pluggable TB | Yes |
| Mounting Type | Flat, DIN-Rail |
| Related Manual | GEH-6721G |
Frequently Asked Questions | |
| Can the IS200TDBSH2A be configured to supply 48VDC or 125VDC? No, you will need an "H4A" or "H6A" model for these voltages respectively. | |
| What option boards can be used with the IS200TDBSH2A? The IS200TDBSH2A supports the WROB, WROF, and WROG option boards. | |
| Does the IS200TDBSH2A have any sort of input filter? Yes, the IS200TDBSH2A has a 4ms hardware filter. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The IS200TDBSH2A is one of the more common TDBS board variants due to its lower wetting voltage rating. A major strength of this board is its support for various option boards which can greatly improve overall protection, compatibility, and power distribution capabilities. -Automation Industrial Quality Assurance Manager |
|
