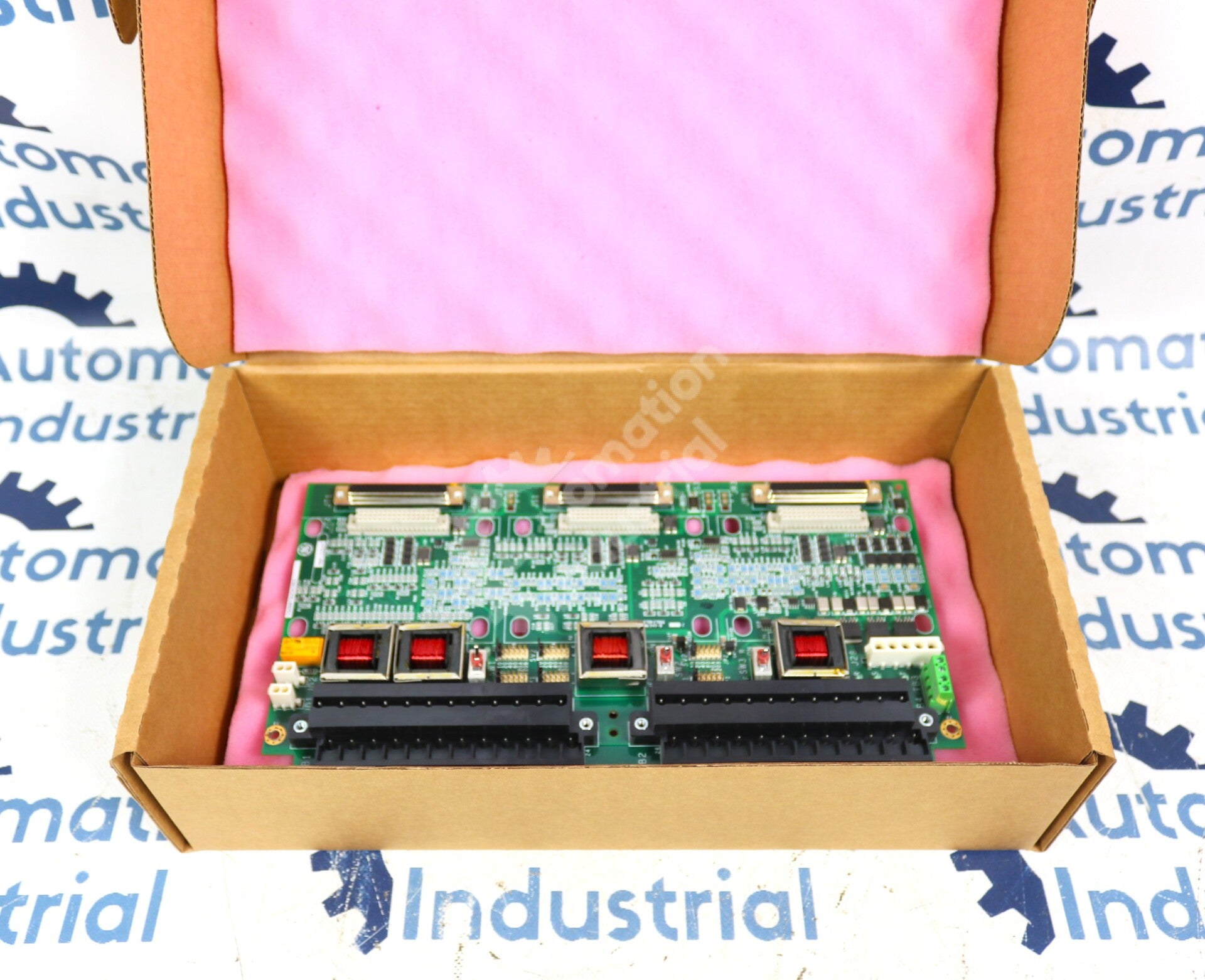

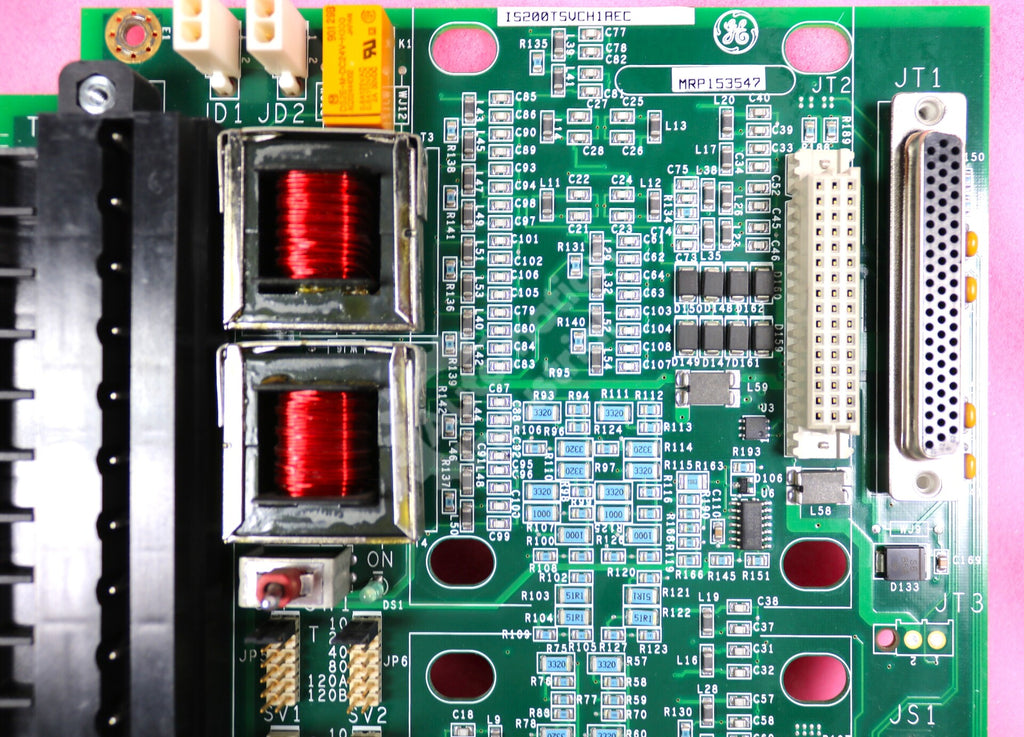

- Model Name: IS200TSVCH1A
- Original Equipment Manufacturer: GE
- Product Family: Mark VIe
- Unit Description: Servo Input/Output Terminal Board
- Interfaced Valves: 2
- Servo Valve Type: Electro-Hydraulic
- LVDT Windings: 8
- External Trip Signal Input: Yes
- Input Voltage: 28V
- Input Power Supplies: 3
- Shield Bar: Yes
- Original Manual: GEH-6721
-
What levels of redundancy are supported with the IS200TSVCH1A?
- The IS200TSVCH1A supports TMR, dual, and simplex control modes.
-
Which modules can the IS200TSVCH1A work with?
- The IS200TSVCH1A is made to be used with the PSVO and WSVO modules.
-
Can the IS200TSVCH1A be used with the VSVO processor?
- No, these models are incompatible.
⭐⭐⭐⭐⭐ 5.0
The IS200TSVCH1A serves an important role in the actuation of steam and fuel valves in a Mark VIe system. This is one of the more flexible Mark VIe boards when it comes to supported redundancy levels, which makes it compatible with a wide range different setups. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
IS200TSVCH1A Mark VI IS200 |
Description |
IS200TSVCH1A By General Electric IS200TSVCH1AEC Servo Terminal Board |
Condition |
Pre-Owned Cleaned and Tested. With 1 Year Warranty |
Technical Specifications | |
| Model Name | IS200TSVCH1A |
| Original Equipment Manufacturer | GE |
| Product Family | Mark VIe |
| Unit Description | Servo Input/Output Terminal Board |
| Interfaced Valves | 2 |
| Servo Valve Type | Electro-Hydraulic |
| LVDT Windings | 8 |
| External Trip Signal Input | Yes |
| Input Voltage | 28V |
| Input Power Supplies | 3 |
| Shield Bar | Yes |
| Original Manual | GEH-6721 |
Frequently Asked Questions | |
| What levels of redundancy are supported with the IS200TSVCH1A? The IS200TSVCH1A supports TMR, dual, and simplex control modes. | |
| Which modules can the IS200TSVCH1A work with? The IS200TSVCH1A is made to be used with the PSVO and WSVO modules. | |
| Can the IS200TSVCH1A be used with the VSVO processor? No, these models are incompatible. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The IS200TSVCH1A serves an important role in the actuation of steam and fuel valves in a Mark VIe system. This is one of the more flexible Mark VIe boards when it comes to supported redundancy levels, which makes it compatible with a wide range different setups. -Automation Industrial Quality Assurance Manager |
|
