- Part Number: IS200VSVOH1B
- Brand: GE
- Unit Series: Mark VI
- Product Type: Servo Control Board
- Max Servo Valves: 4
- Valve Type: Electro-Hydraulic
- Position Measurement: LVDT
- LVDT Windings: 6
- Pulse Rate Signal Inputs: 2
- Excitation Source Outputs: 4 LVDT, 2 PRT
- Internal Sample Rate: 200Hz
- Manual: GEH-6421M
-
Does the IS200VSVOH1B have any fault detection?
- Yes, the IS200VSVOH1B can detect when the regulator feedback signal or servo current is out of bounds/unresponsive.
-
Can you adjust the servo outputs on the IS200VSVOH1B?
- Yes, both the dither frequency and amplitude are adjustable on the IS200VSVOH1B.
-
How accurate are the valve outputs on the IS200VSVOH1B?
- These outputs have an accuracy range of 2% when used with a 12-bit resolution.
⭐⭐⭐⭐⭐ 5.0
The IS200VSVOH1B is capable of controlling several valves within your system in only a single, normal-sized board. Not only is the quantity of outputs on this board great, but the rest of the I/O is accurate and simple to wire. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
IS200VSVOH1B Mark VI IS200 |
Description |

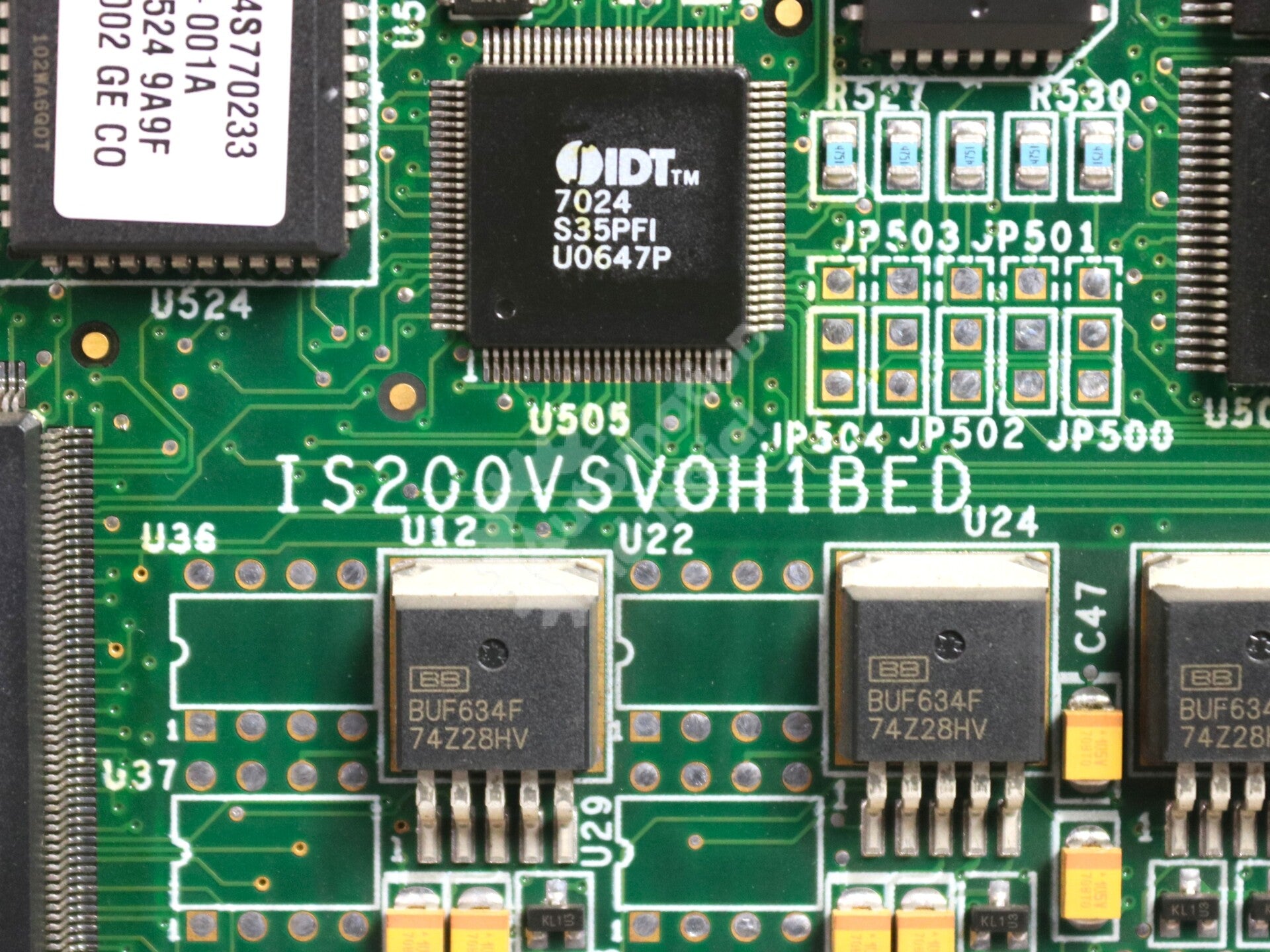

IS200VSVOH1B By General Electric IS200VSVOH1BED Servo Control Board |
Condition |
Pre-Owned Cleaned and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Part Number | IS200VSVOH1B |
| Brand | GE |
| Unit Series | Mark VI |
| Product Type | Servo Control Board |
| Max Servo Valves | 4 |
| Valve Type | Electro-Hydraulic |
| Position Measurement | LVDT |
| LVDT Windings | 6 |
| Pulse Rate Signal Inputs | 2 |
| Excitation Source Outputs | 4 LVDT, 2 PRT |
| Internal Sample Rate | 200Hz |
| Manual | GEH-6421M |
Frequently Asked Questions | |
| Does the IS200VSVOH1B have any fault detection? Yes, the IS200VSVOH1B can detect when the regulator feedback signal or servo current is out of bounds/unresponsive. | |
| Can you adjust the servo outputs on the IS200VSVOH1B? Yes, both the dither frequency and amplitude are adjustable on the IS200VSVOH1B. | |
| How accurate are the valve outputs on the IS200VSVOH1B? These outputs have an accuracy range of 2% when used with a 12-bit resolution. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The IS200VSVOH1B is capable of controlling several valves within your system in only a single, normal-sized board. Not only is the quantity of outputs on this board great, but the rest of the I/O is accurate and simple to wire. -Automation Industrial Quality Assurance Manager |
|
