- Part ID: IS215UCVDH5A
- Product Manufacturer: GE
- Model Family: Mark VI
- Functional Description: Controller Board
- Microprocessor: AMD-K6
- Speed: 300MHz
- DRAM: 16MB
- Flash Memory: 8MB
- Level 2 Cache: 256KB
- Operating System: QNX
- COM Ports: 2
- Relevant Manual: GEH-6421
-
Does the IS215UCVDH5A have a monitor port?
- Yes, the IS215UCVDH5A has a specialized GE monitor port.
-
Which COM port is used for setup on the IS215UCVDH5A?
- COM1 is used for setup, and COM2 is used for serial communications.
-
Are the ISBus drive LAN ports used on the IS215UCVDH5A?
- No, these ports are not used on the IS215UCVDH5A.
⭐⭐⭐⭐⭐ 5.0
The IS215UCVDH5A is a later revision of the popular UCVD controller. This is one of the larger controllers in the series, but it has a ton of different device and communication ports which make it compatible with many applications. -Automation Industrial Quality Assurance Manager
Description
General Information about the Product | |
Part Number |
IS215UCVDH5A Mark VI IS215 |
Description |

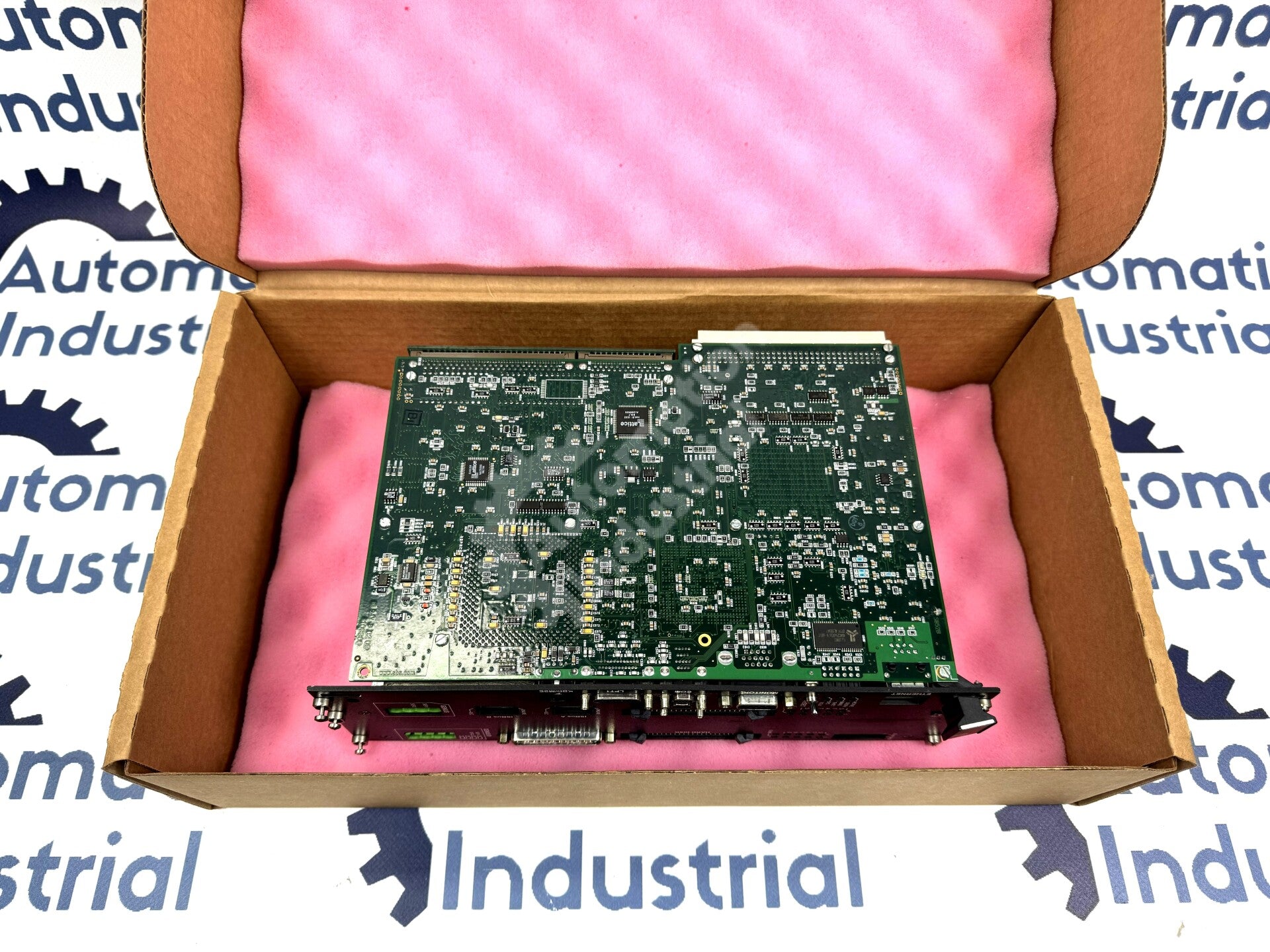

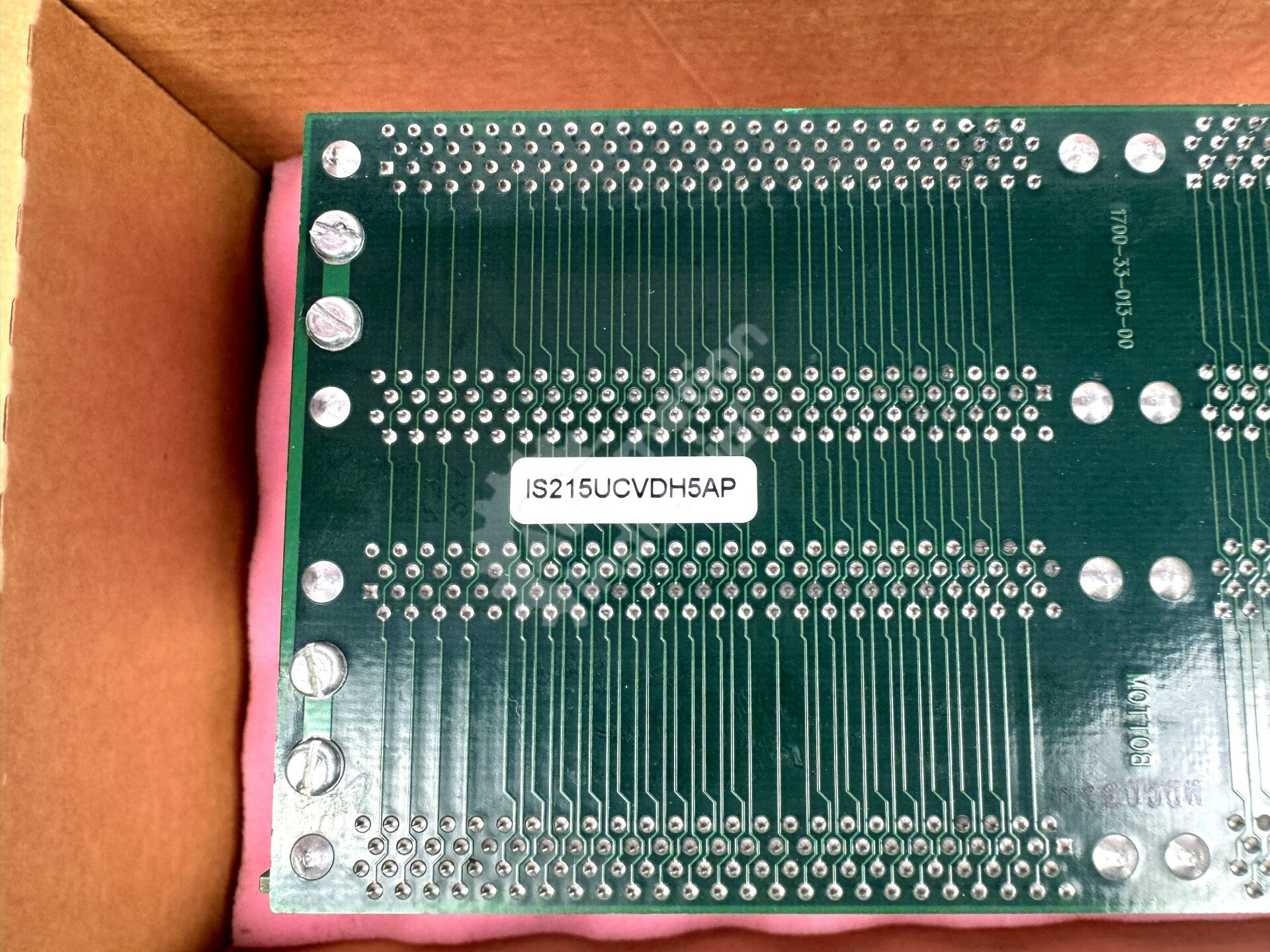

IS215UCVDH5A By GE IS215UCVDH5AP Process Control Module |
Condition |
Pre-Owned Cleaned and Tested. With 1 Year Warranty. |
Technical Specifications | |
| Part ID | IS215UCVDH5A |
| Product Manufacturer | GE |
| Model Family | Mark VI |
| Functional Description | Controller Board |
| Microprocessor | AMD-K6 |
| Speed | 300MHz |
| DRAM | 16MB |
| Flash Memory | 8MB |
| Level 2 Cache | 256KB |
| Operating System | QNX |
| COM Ports | 2 |
| Relevant Manual | GEH-6421 |
Frequently Asked Questions | |
| Does the IS215UCVDH5A have a monitor port? Yes, the IS215UCVDH5A has a specialized GE monitor port. | |
| Which COM port is used for setup on the IS215UCVDH5A? COM1 is used for setup, and COM2 is used for serial communications. | |
| Are the ISBus drive LAN ports used on the IS215UCVDH5A? No, these ports are not used on the IS215UCVDH5A. | |
Internal Review | |
|
⭐⭐⭐⭐⭐
5.0
The IS215UCVDH5A is a later revision of the popular UCVD controller. This is one of the larger controllers in the series, but it has a ton of different device and communication ports which make it compatible with many applications. -Automation Industrial Quality Assurance Manager |
|
